Zaph|Audio ZA5.2 TM 2-Way, Pair, With Cabinets

ZA5.2 TM 2-Way Complete with Cabinets from the Zaph|Audio ZA5 Family

This is the 2-Way offering from the ZA5 family of kits. This version of the ZA5.2 includes fully assembled front ported cabinets. These cabinets are very well constructed of 18mm (0.71") mdf and well braced internally. The cabinets are precisely cut for flush mounting of the drivers, port tube, and DB-CUP input cup. The woofer hole is chamfered to promote optimal airflow. Pictured above is a single speaker, you will receive a pair. Please view additional pictures below.

The Zaph Audio ZA5 Family is a collection of speaker kits using the ZA14W08 woofer and the Vifa DQ25SC16-04 tweeter. These drivers and subsequent kits represent fantastic performance at a very attractive price. Detailed information on the Zaph ZA14W08 woofer and ZA5 kits can be found on the Zaph Audio website.

There are several designs to choose from to meet your speaker building goals. Consider the ZA5 kits for anything from small monitors to floor standing towers, from stand mounted MTM stereo to a complete surround sound masterpiece. The variety of kits in the ZA5 family affords you the choices to specifically fit your project needs.

Madisound is offering these kits as a combination of the ZA14W08 woofers and DQ25SC16-04 tweeters along with the associated crossovers. These high quality crossovers come professionally assembled on a printed circuit board for easy installation and hookup. All crossover parts hold to the exact values of the crossover design. Kit pricing includes at least a 10% discount on all parts and represent an excellent value.

This kit has everything you need to assemble a stereo pair of speakers. While we recommend soldering all speaker wire connections, this kit can easily be assembled with minimal tools. All that is required is a screwdriver/drill, a razor blade/wire stripper, and set of pliers/crimpers.

Included:

• (2) ZA14W08 Aluminum Cone Midbass Woofers
• (2) DQ25SC16-04 Titanium Dome Tweeters
• (2) Professionally Assembled Crossovers - for schematic click here.
• (2) Fully Assembled, Pre-Cut Cabinets in Black Woodgrain Finish
• (8ft) Supra Classic 1.6 (15AWG) internal speaker wire
• (2) 1.5" x 4" PT-F415 port tubes
• (1) 27” x 42” x 5/8” Foam Sheet for lining the internal walls
• (1) GOOP adhesive to glue foam to walls
• (2) QC110R for + tweeter tabs
• (4) QC110B Quick Connects for – tweeter & - woofer tabs
• (10) QC187R Quick Connects for + woofer, + crossover & + binding post tabs
• (8) QC187B Quick Connects for – crossover & - binding post tabs
• (16) #8x1 Black Ox & Wax Socket Head & Wood Screws for mounting drivers to baffle
• (8) #6x3/4 Black Ox & Wax Pan Head Wood Screws for mounting the input cup to the cabinet

Vital Information:

• .36 cubic feet (10 liters)
• 8” wide, 14” tall, and 9.5” deep
• Front ported
• Black Grill Cover included
• Frequency response 52Hz – 20Khz
• For cabinet drawing click here.

Need a single speaker or an odd number?

No problem, singles are simply 1/2 the price of the stereo pair.

Please leave us a note with your request in the "comments" section of your order.

We will ship your order with the total number of speakers that you request, and charge accordingly.

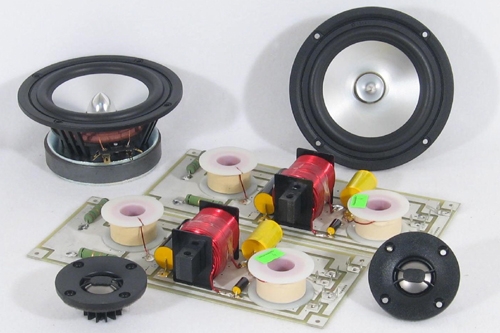

Drivers and Assembled Crossovers

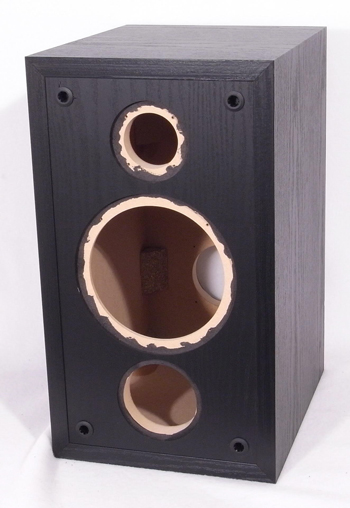

Front View of ZA5.2 Cabinet

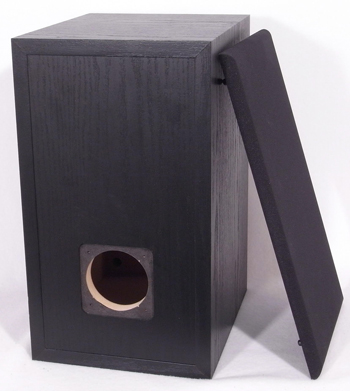

Rear View of ZA5.2 Cabinet

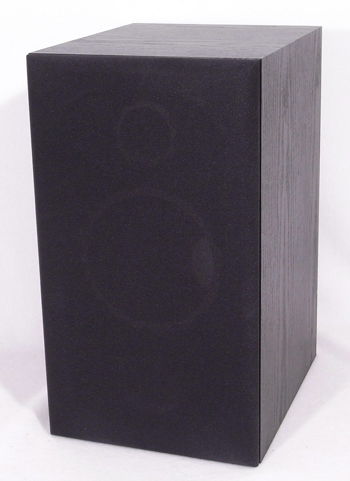

Front View of ZA5.2 Cabinet with Grill Cover
