ScanSpeak B741 Speaker Kit - Crossover Only - Each
B741 Kit Crossovers sold separately. These are for the Peter Noerbaek B741 kit speaker. The price is for one side, so you need two for a pair.
Drivers:
D3004/6640 tweeter
12MU/4731T midrange
(2x) 18WU/8741T woofers in parallel

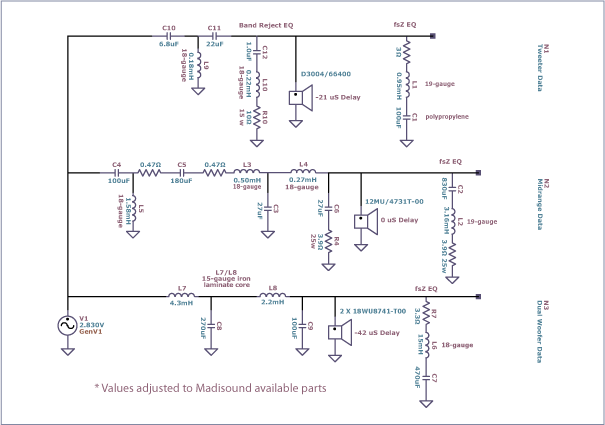

Madisound has chosen premium crossover parts to compliment the exceptional Illuminator speakers.
On the tweeter section we are using the ClarityCap CSA 250V capacitors in series with the D3004/6640 and with the Solen Fast caps in parallel. Mundorf MOX metal oxide film resistors are also used on the tweeter section.
All crossover will come assembled on our silver soldered copper circuit boards.
On the midrange section we are using the ClarityCap PX series polypropylene capacitors and Mundorf CopperConnect resistors in series with the 12MU/4731T midrange. Solen Fast caps and Bennic electrolytic caps are used in the shunt circuits.
On the woofer section we are using the Goertz 14awg copper foil inductors in series with the paralleled 18WU/8741T woofers. Our steel laminate and Bennic electrolytic caps are used in parallel.
