LX521 Linkwitz Lab Open Baffle 4-Way Kit, PAIR

Sale Price: $1,498.50
Compared at: $1,665.00
You Save: $166.50
Product ID : LX521
Manufacturer: Seas Prestige
Weight: 126.00 lbs
E-mail to a friend | Add To Wish List

Purchase

Description

"Magic" LX521 Linkwitz Lab 4-Way Open Baffle Speaker Kit - Drive Units Only
Price shown is for a PAIR

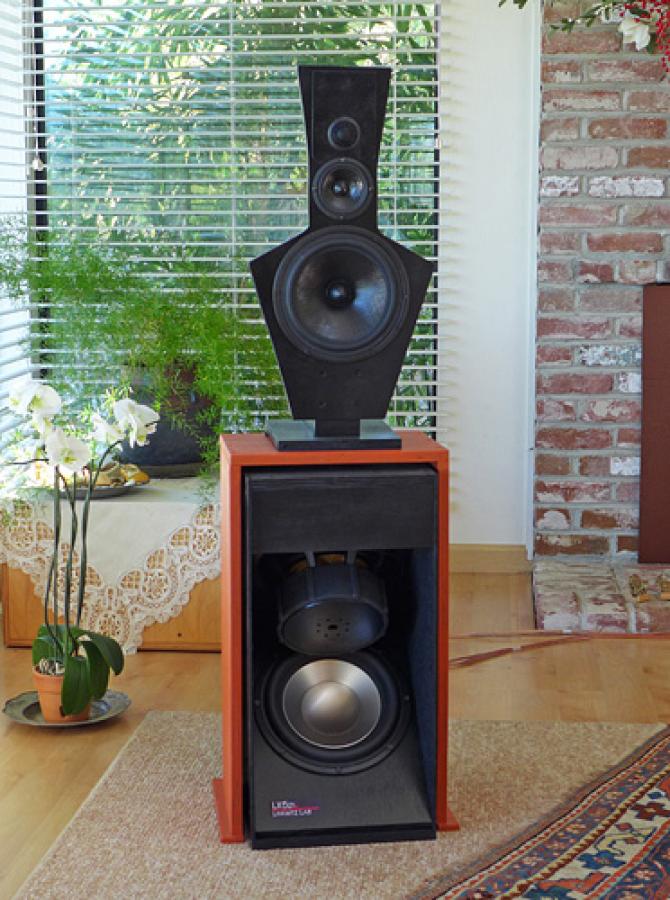

The LX521 is the latest and greatest DIY speaker design from Siegfried Linkwitz of Linkwitz Lab. Also see the smaller scale LXmini Speaker Kit.

Madisound is offering the drivers, required inductors, and your choice of capacitors at a 10% discount off the regular price. For current Orion users that already have 4 pcs of the L26RO4Y woofer, you have the option of purchasing this kit without those drivers and still receive the discount.

LX521 Flat Pack cabinets and fully assembled and tested LX521 ASP crossovers are also available for this kit.



This Kit Includes:

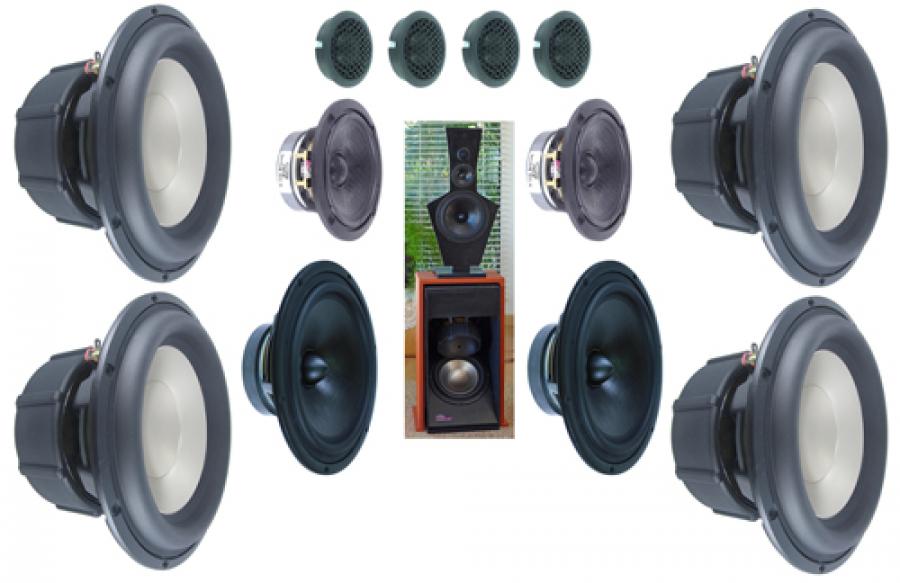

4x Seas 27TFFNC/G (H1396) 1" Textile Dome Tweeter

2x Seas MU10RB-SL (H1658-04) 4" Curv Cone Upper Midrange

2x Seas U22REX/P-SL (H1659-08) 8" Curv Cone Lower Midrange

4x Seas L26RO4Y (D1004-04) 10" Aluminum Cone Woofer

2x Madisound 4.0mH 19 awg Air Core Inductor

2x ClarityCap ESA 12.0 mfd 250V Polypropylene Capacitor (other options available from drop down menu)



About the LX521 from Siefried Linkwitz:

"For many years now I have refined, lived with and enjoyed the ORION (2002) and PLUTO (2005) loudspeakers.

I have learned that the loudspeaker's radiation pattern and placement in the room are more important than the acoustics of the room.

Ever since I started building loudspeakers with cone-type drivers on open baffles several decades ago, I tried to find the optimum shape for those baffles given the drivers available. For ORION the drivers were selected primarily for their volume displacement and low distortion capabilities when used in a 3-way, active system. The LX521 evolved from experimentation with minimal width baffles, which can provide a more uniform dipolar radiation pattern at higher frequencies, if also suitable drivers are available. Inevitably this leads to a 4-way design, which I mostly tried to avoid in the past.

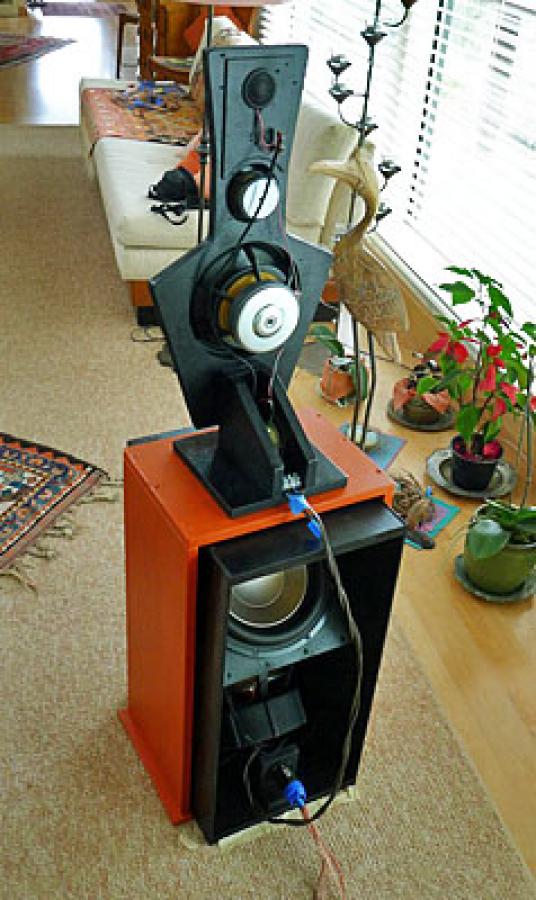

The shape of the midrange/tweeter baffle was arrived at empirically for the chosen SEAS drivers and after many acoustic free-field measurements. The two SEAS woofer drivers are housed in a V-frame baffle, which exhibits reduced resonance above the operating range of the woofer and some force cancellation.

A bridge over the woofer isolates the midrange/tweeter baffle from woofer cabinet vibrations. Woofer and midrange/tweeter baffles can be angled independently from each other. The bridge could also be built taller and the midrange/tweeter baffle tilted downwards to aim at the listener in front of a mixing desk. The woofer baffle must rest on the floor for ground plane reinforcement of its output.

The LX521 Analog Signal Processor splits the broadband line level input signal into woofer, mid and tweeter frequency bands. It equalizes driver and baffle response for each channel and filters it with LR4 response. The midrange signal is split after the power amplifier by a passive crossover filter into lower mid and upper mid driver inputs.

Frequency response on upper midrange axis and horizontal dipolar response in the frontal hemisphere are designed for neutral timbre of the the stereo phantom scene, when the loudspeakers are placed in the room as suggested. The aural scene is rendered with clarity and detail, both spatially and tonally."

Full documentation on the LX521 can be found on the Linkwitz Lab website.


Shipping Charges:
  • Due to the relatively heavy weight of these drivers (and cabinets if selected), the shopping cart may not be able to provide an accurate shipping cost for you at checkout
  • Proceed with checkout and select "If no shipping estimates are displayed you can request a shipping estimate. - $0.00", we will contact you with shipping options prior to processing and shipping your order
  • Madisound Shipping Policy



Seas 27TFFNC/G (H1396) 1" Textile Dome Tweeter

Seas MU10RB-SL (H1658-04) 4" Curv Cone Upper Midrange (FU10RB H1600-08 shown)

Seas U22REX/P-SL (H1659-08) 8" Curv Cone Lower Midrange


Seas L26RO4Y (D1004-04) 10" Aluminum Cone Woofer
