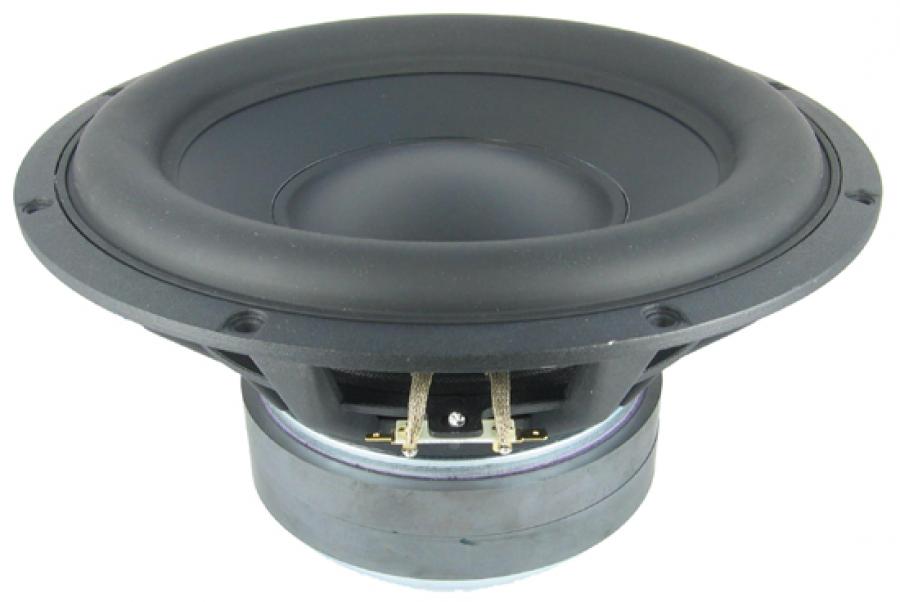

Peerless 835016 XXLS 10" Aluminum Cone 4 ohm
Click to enlarge
|
 Sale Price: $195.00
Compared at: $231.35
You Save: $36.35
Product ID : 835016
Manufacturer: Peerless
Weight: 15.00 lbs
Purchase |
Description
Peerless 835016 XXLS 10" Aluminum Cone Subwoofer
- 4 ohm impedance
- Black aluminum cone
- Large roll rubber surround
- Low distortion motor
- 50mm voice coil diameter
- 12.5mm linear excursion (x-max peak)
- Suitable for home or autosound systems
Sealed Box Alignment:
- Home: You can use this woofer in a sealed and stuffed box of about 0.6 cubic feet for an in home F3 of 55Hz. If used with a plate amp that has a boost, it would go even lower.
- Car: If the same sealed box is used in a vehicle, assuming 6dB of cabin gain, your F3 would be about 35Hz.
- Vented Box Alignment:
- Home: You can use a 1.25 cubic foot box with a 3" diameter vent by 12" long for an F3 of 35Hz. If using a plate amp with a built in boost, it should go to the upper 20's.
- Car: Sealed boxes are usually recommended for autosound applications as vented boxes can seem boomy.
Passive Radiator Alignment:
- Home: When used with the Scan-speak Discovery 26W-0-00 10" passive radiator in a 1.1 cubic foot box, your F3 will be about 35Hz.
- Car: In a car response, the bass is boosted on the low end and the F3 extends to 20Hz.I'm not sure how passive radiator systems would sound in a car.
Can't find the data? Many loudspeaker spec sheets (PDF) are available.
