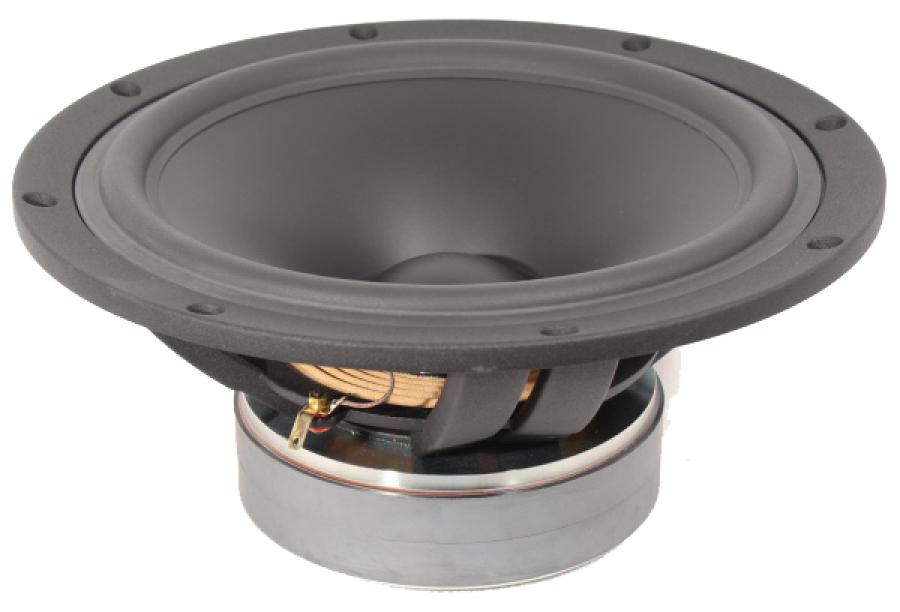

SB Acoustics SB34NRX75-6 12" Woofer

SB Acoustics SB34NRX75-6 12" Woofer
Click to enlarge
Price: $180.90 (each)
Product ID : sb34nrx75-6
Manufacturer: SB Acoustics
Weight: 20.90 lbs
E-mail to a friend | Add To Wish List

Purchase

  • Buy 10+ and get an additional 10% off

Description

SB Acoustics SB34NRX75-6 12" Woofer

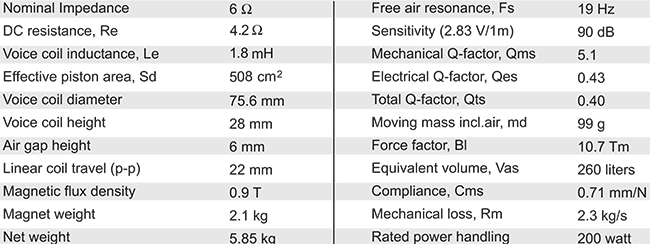

Spec sheet: SB34NRX75-6 PDF

  • Hard paper cone
  • Low damping SBR surround
  • Open structure cast frame for reduced reflections
  • Raised spider
  • 75mm Voice Coil diameter

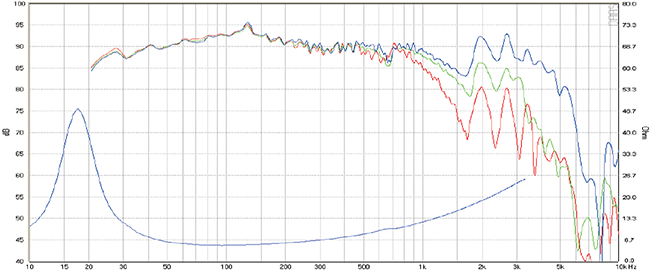

  • Frequency range 19Hz to 1kHz
  • Gasket

Dimensions:

  • Flange diameter: 346.2mm
  • Cut out diameter: 300.2mm
  • Depth: 141.8mm
  • Flange thickness: 11mm
  • Screw mounting diameter: 324.2mm
  • Screw hole size: 5.5mm

Suggested Alignments:

  • Sealed box of 2.6 - 3.5 cubic feet for and F3 of 37Hz
  • Vented box of 4.0 cubic feet with a 3" diameter vent by 10" long for an F3 of 27Hz.

Product Reviews

Login or Register to write a review.
Reviewed by chapcars
08/15/2014 - 06:24:56 PM
Tight Bass
I have purchased these drivers after much reading on the Net
I have a pair of Dynaudio 4way speakers ( 1990 ) using the following drivers
30W100 Woofers D76 Mids D21 & 28 Tweeters
I have not the funds to replace the 30W100's Failed coil fly wires & cone distorion
Replace Mids with HiVi 2in mids ( incredible performance & build for the money )
Tweeters retained
The SB 34NRX75-6 is larger than the Dynaudio unit ( bit of cabinet work fixed that ) Retained crossovers ( add resistors to the mids ) Ported the cabinet
The result put a smile on my face
Very good Bass that can really attack when driven hard . I listen to Early classical to Dance Trance
Dance music blows you away with this driver
Nice one SB
Reviewed by EWZuber
12/24/2012 - 02:17:43 AM
sb34nrx75-6
Did a lot of research on woofers trying to find something that would work well in a sealed enclosure. This woofer is perfect. Smooth, natural sounding clean bass that rolls across the room. I am very happy with the performance.
Reviewed by EWZuber
12/24/2012 - 02:17:43 AM
sb34nrx75-6
Did a lot of research on woofers trying to find something that would work well in a sealed enclosure. This woofer is perfect. Smooth, natural sounding clean bass that rolls across the room. I am very happy with the performance.
Reviewed by Seren2
09/27/2012 - 05:07:58 PM
SB34NRX75-6
'I used this woofer for a 3 way project and I must say this fellow goes really low. It has exceptional clean and warm bass. It was exactly the kind of bass I was looking for. I played a bit with active XO on this driver. In my opinion it shouldn't be crossed above 400 Hz. it sounded distorted to me above this frequency below that it's bass addict's heaven :) I would highly recommend this one for sub woofers and big 3 way applications.' Review by Oded Aharon. Posted by Madisound.
