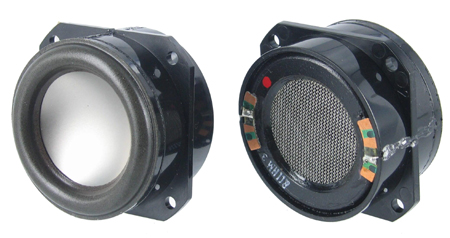

Aurasound NSW2-326-8A-120 2" Full Range with Solder Pads
Click to enlarge
|
 Price: $23.55 (each)
Product ID : nsw2-326-8a-120
Manufacturer: Aurasound
Weight: 0.22 lbs
Purchase |
Description
Aurasound 33mm "Whisper"
With Solder Pads
Features:
Frequency 250 to 15kHz
Titanium dome
Underhung voice coil
NRT neodymium magnet system
Inherently shielded
Foam surround
Frame: 49mm square
Overall Depth: 29.4mm
Specifications:
Fs 250 Hz
Nominal Imp. 8 ohms
Power (RMS) 15 W
Re 6.4 ohms
Sens. 1W/1m 84 dB
X-max peak 3 mm
Qms 4.72
Qes 0.80
Qts 0.68
Vas 0.1 ltrs
BL 3.5 TM
Mms 1.04 gr
Cms 390 mM/N
Sd 13.2 cm2
Net weight 113 g
Max Exc. p2p 10 mm
VC diameter 33 mm
*** Use this version with the Linkwitz Pluto system for best fit into pipe ***
