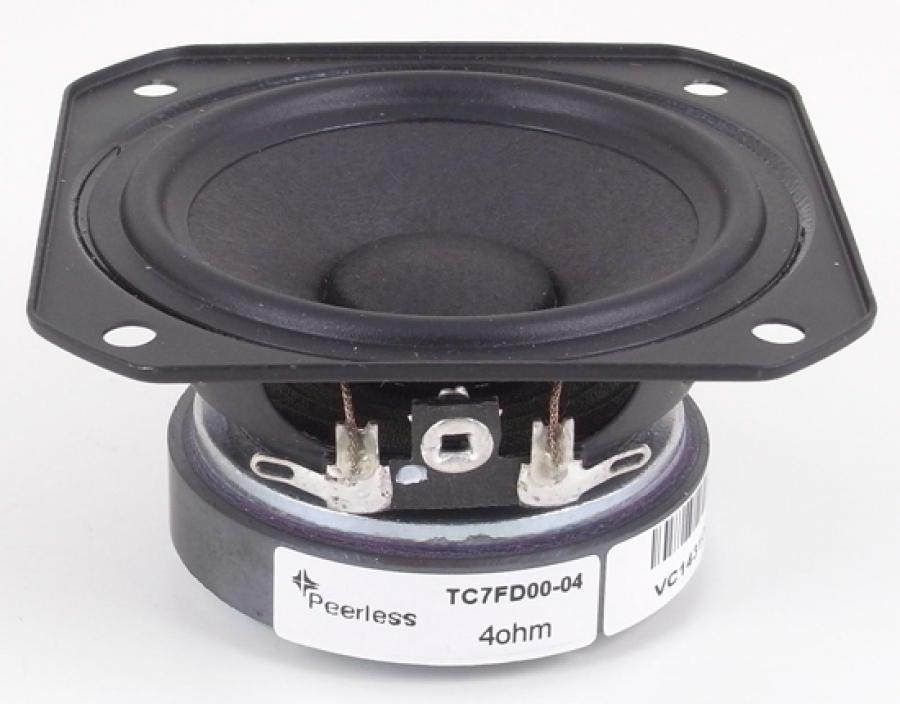

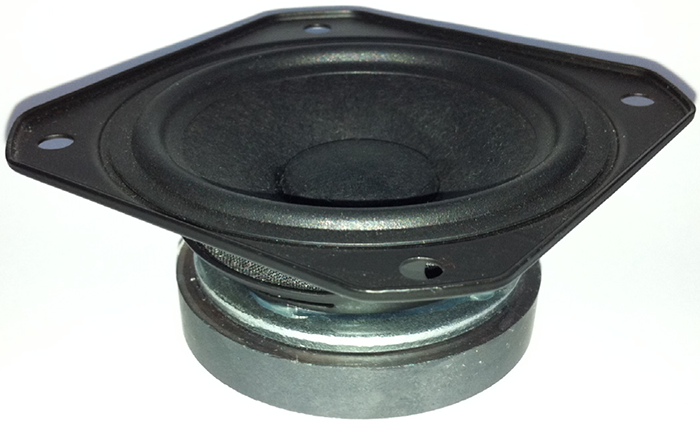

Peerless TC7FD00-04 2.5" Full Range 4 ohm

Peerless TC7FD00-04 2.5" Full Range 4 ohm

• NRSC cone cuts
• Ceramic magnet
• Rubber surround
• Copper cap on pole piece
• Stamped steel frame

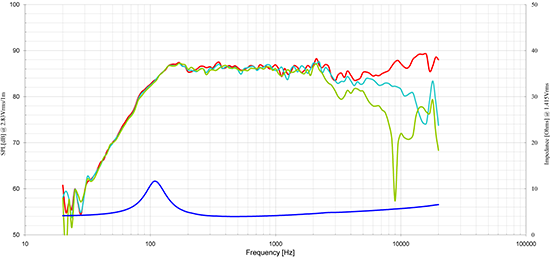

• 145 to 20kHz

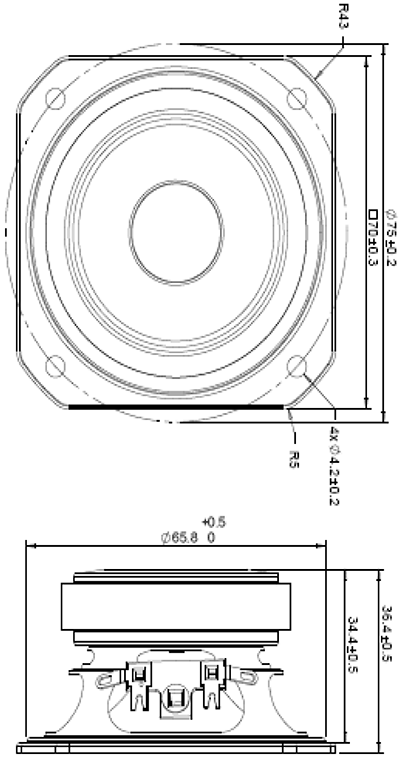

• Flange size 70mm
• Cut out 65.8mm
• Depth 34.4mm

This TC family 2.5 inch 4 ohm full-range driver, with ferrite magnet, paper cone, rubber surround, and steel basket, is designed to be a cost effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listenting experiences. The motor contains a copper cap to lower inductance and distortion. The product was designed with television and other compact applications in mind.
