Home > Loudspeakers > Woofers > Approx 4" Woofers

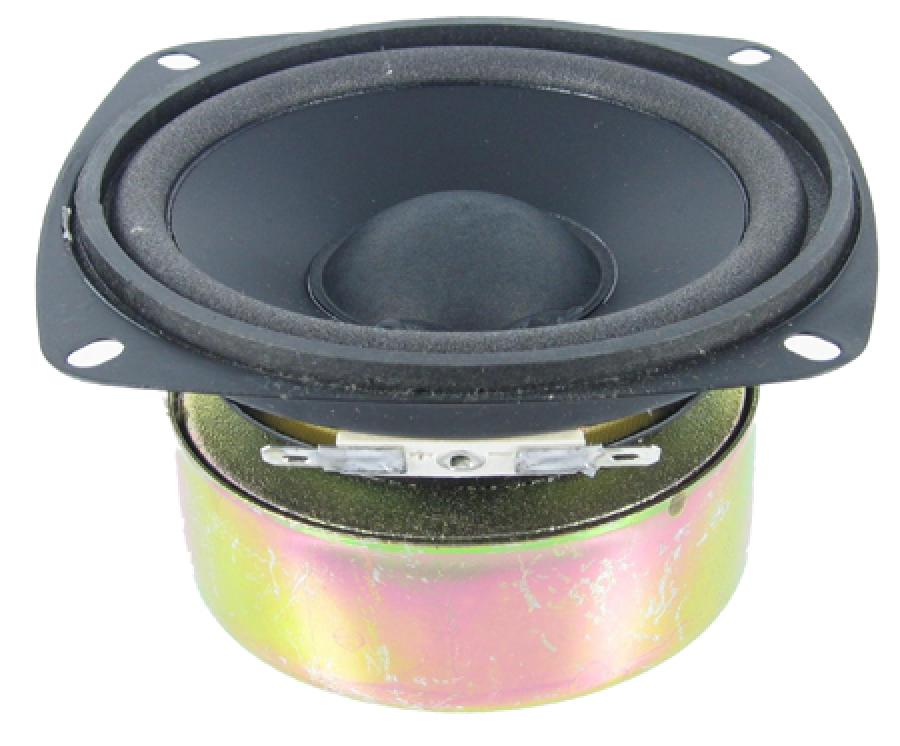

Goldwood GW-204/8S 4" Shielded woofer - 8 ohm

Click to enlarge

Price: $9.95

Product ID : gw-204_8s

Manufacturer: Goldwood

Weight: 1.87 lbs

0 review(s)

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

| Add To Wish List

Purchase

This is out of stock. If you would like to back-order this item, please contact us. We will email you when the item is back in-stock.

Description

Goldwood GW-204/8S 4" Shielded Poly Woofer 8 Ohms

Poly-laminated paper cone, treated foam surround, and polymer dustcap give these drivers a very smooth frequency response with minimal cone breakup. The shielded magnet structure of this driver makes it great for A/V applications.

Specifications: • Power handling: 40 watts RMS/70 watts max • VCdia: 1" • Le: 0.2 mH • Impedance: 8 ohms • Re: 7.3 ohms • Frequency range: 100-10,000 Hz • Fs: 137 Hz • SPL: 83.7 dB 2.83V/1m • Vas: 0.04 cu. ft. • Xmax: 1.5 mm • Qms: 6.82 • Qes: 2.02 • Qts: 1.56 • Dimensions: Overall diameter: 4-1/8" (4-15/16" corner-to-corner), Cutout diameter: 4", Depth: 2-9/16".

Best used in a small sealed box of 0.05 cubic feet to 0.2 cubic feet
