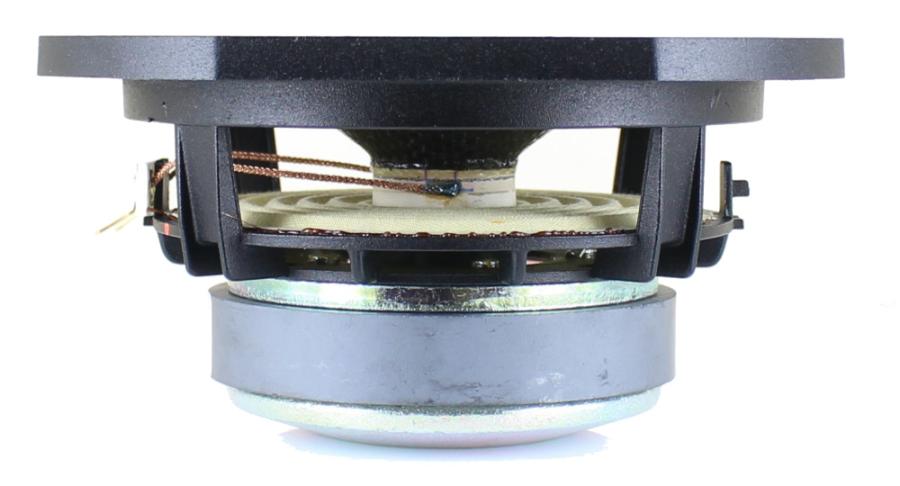

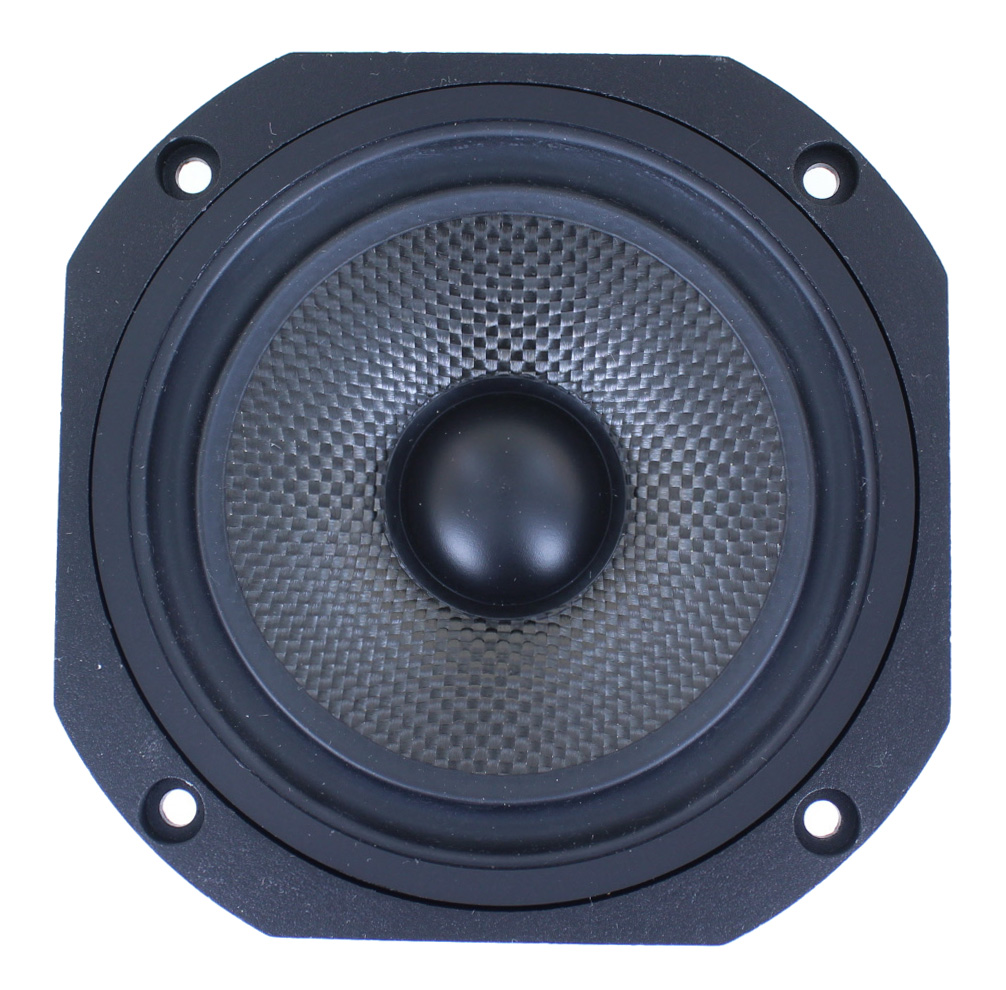

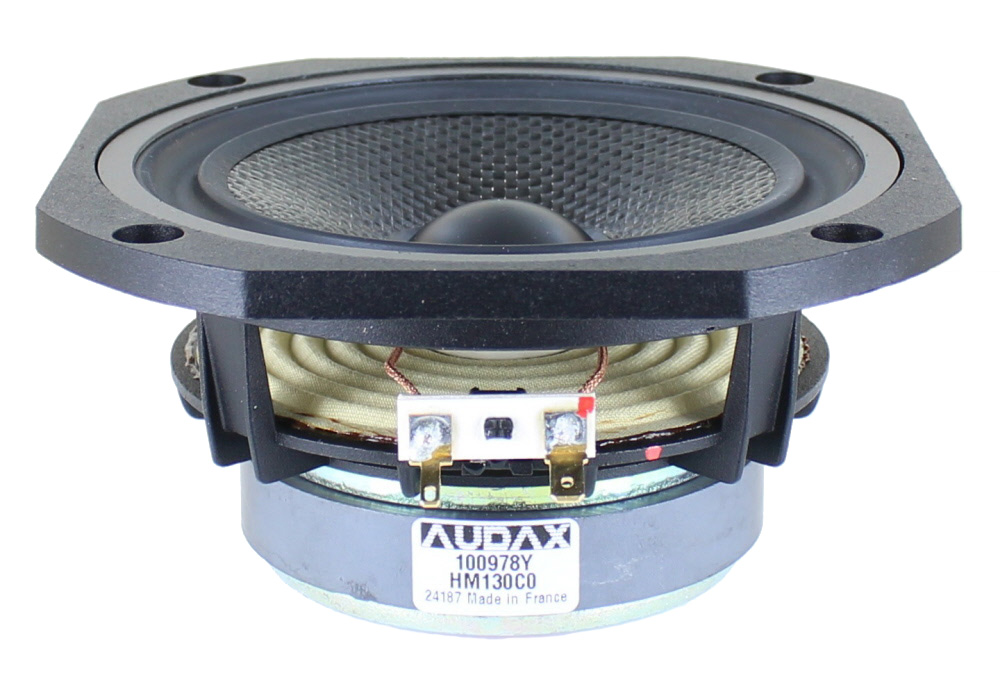

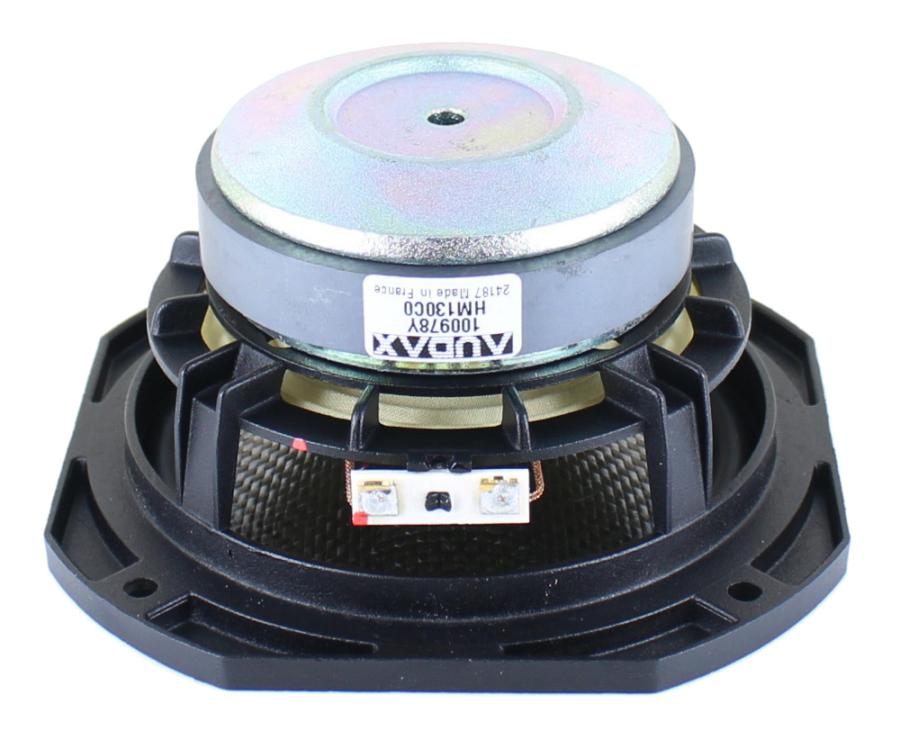

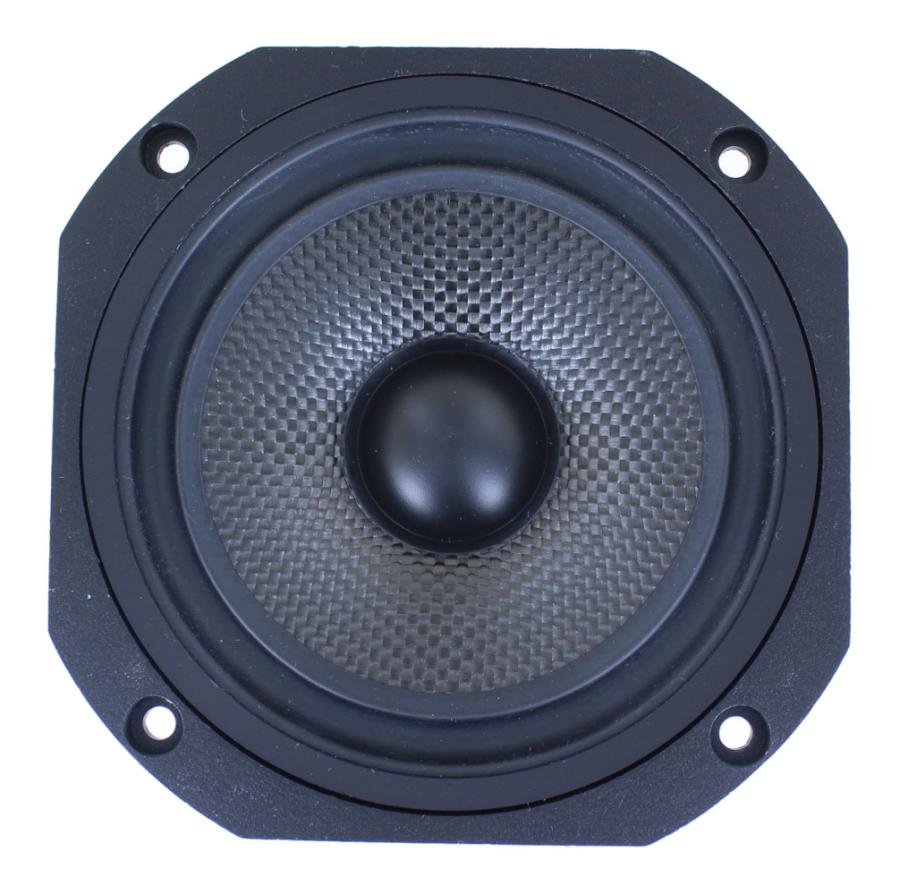

Audax 5.25" Carbon Fiber Cone Woofer
Designed for high end systems, these drivers utilize a very stiff and lightweight woven carbon fiber cone. The use of this material results in dynamic bass response, superb midrange clarity and an extremely natural top end roll off. Unobstructed venting of the Zamak die cast chassis, plus the use of a vented pole piece, contributes to the dramatic transient response. Other features include a high compliance rubber suspension, soft polymer dust cap, edgewound copper voice coil on a fiberglass reinforced Kapton former, and gold plated terminals. Designed to excel in compact 2-way systems, this driver provides a very flat and extended frequency response.

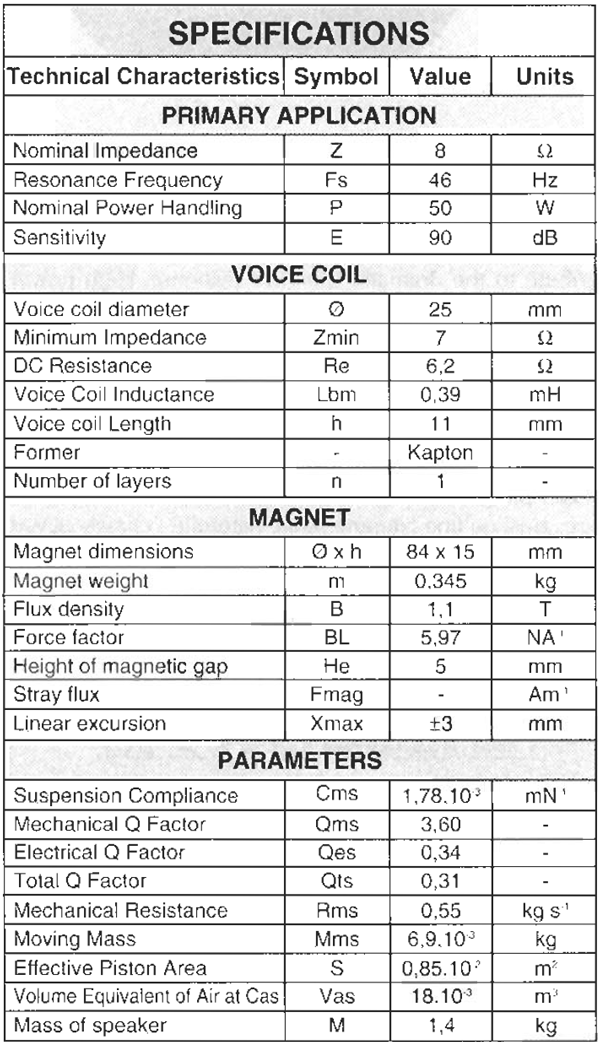

Power handling: 50 watts RMS * Voice coil diameter: 1" * Le: .39 mH * Impedance: 8 ohms * DC resistance: 6.2 ohms * Frequency response: 46-6,000 Hz * Fs: 46 Hz * SPL: 90 dB 1W/1m * Vas: .64 cu. ft. * Qms: 3.60 * Qes: .34 * Qts: .31 * Xmax: 3.0mm
F3 of 75Hz in 0.25 cubic foot vented box with 1.5" diameter port by 5.5" long. Made in France.
•Zamak die cast frame
•High Loss Rubber surround
•Woven carbon fiber cone
•Edgewound flat copper wire
•Vented pole piece
•90dB Sensitivity
This driver is the same frame size as many older NLA Focal drivers. It is an exact drop in and should be a considered a good replacement. The only difference is this Audax frame is 6.8mm thick, where the Focal is 5mm thick. Drop in replacment for the Audax midrange in the Von Schweikert VR4 Gen 1.
