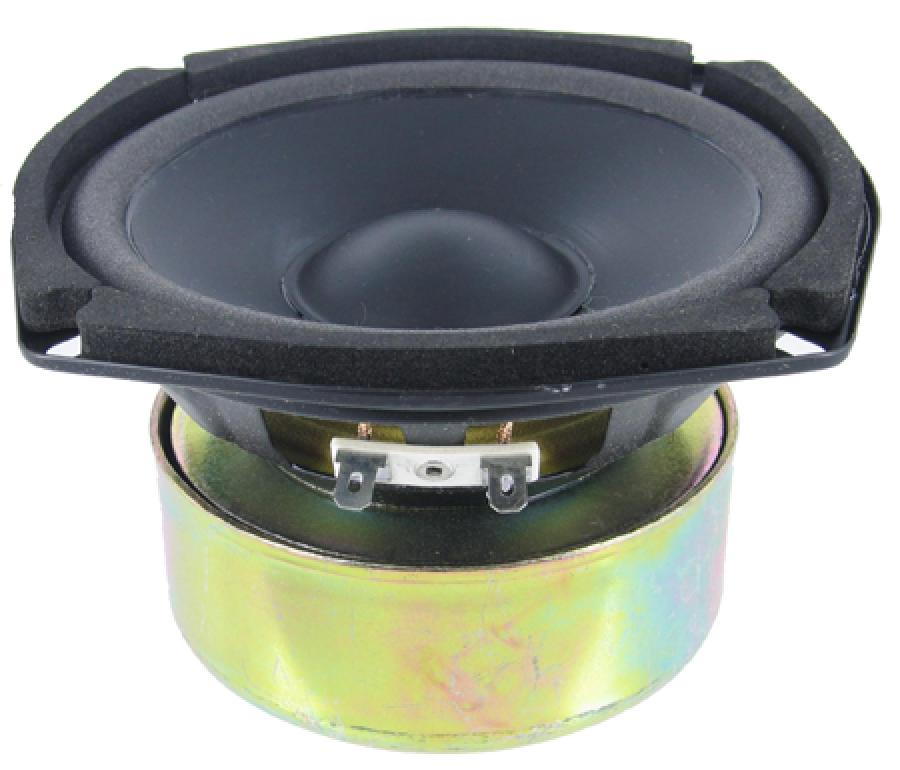

Goldwood GW-205/8S 5" woofer - 8 ohm

Click to enlarge

Price: $11.70

Product ID : gw-205_8s

Manufacturer: Goldwood

Weight: 2.09 lbs

0 review(s)

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

| Add To Wish List

Purchase

This is out of stock. If you would like to back-order this item, please contact us. We will email you when the item is back in-stock.

Description

Goldwood GW-205/8S 5-1/4" Shielded Poly Woofer 8 Ohms

Poly-laminated paper cone, treated foam surround, and polymer dustcap give these drivers a very smooth frequency response with minimal cone breakup. The shielded magnet structure of this driver makes it great for A/V applications.

Specifications: • Power handling: 70 watts RMS/130 watts max • VCdia: 1" • Le: 0.4 mH • Impedance: 8 ohms • Re: 7.1 ohms • Frequency range: 80-6,000 Hz • Fs: 86.1 Hz • SPL: 87 dB 2.83V/1m • Vas: 0.18 cu. ft. • Xmax: 2.0 mm • Qms: 3.18 • Qes: 1.10 • Qts: 0.82 • Dimensions: Overall diameter: 5-1/4", Cutout diameter: 4-3/4", Depth: 3-1/8".

Good for sealed boxes of 0.1 to 0.5 cubic feet.

Can't find the data? Many loudspeaker spec sheets (PDF) are available.
