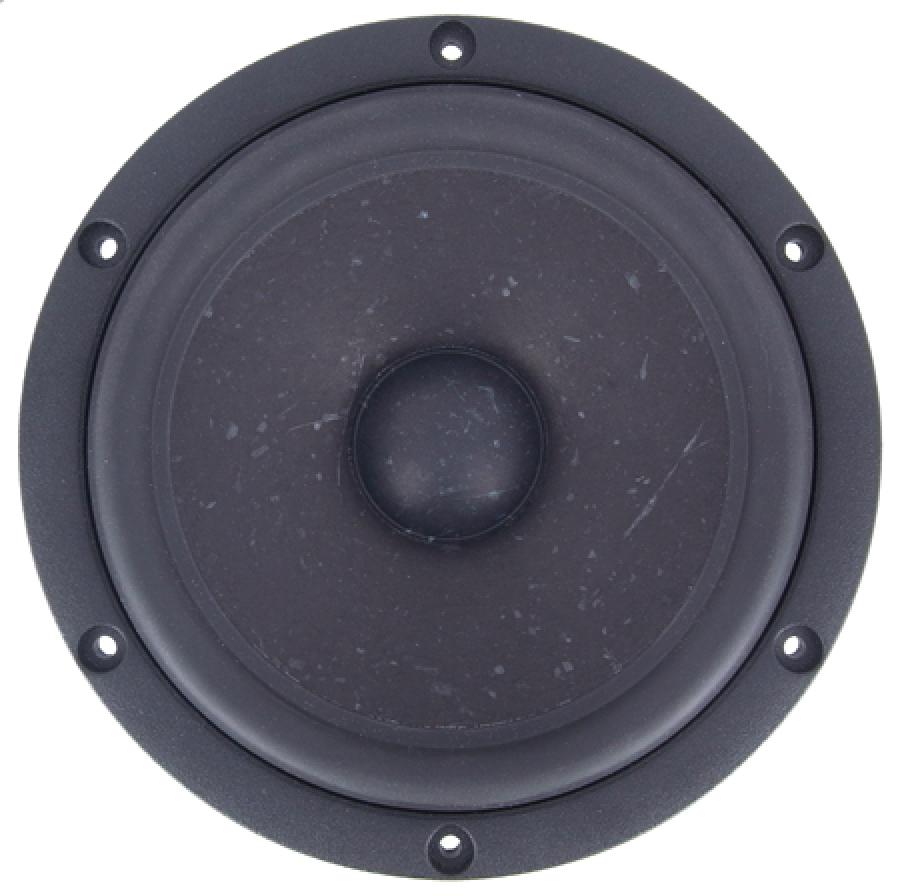

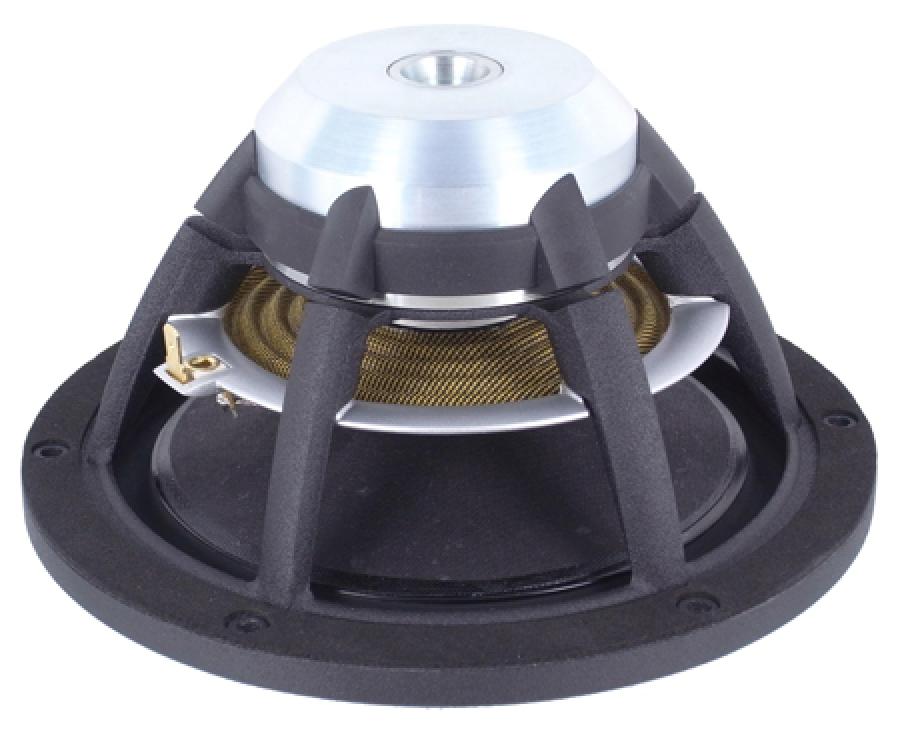

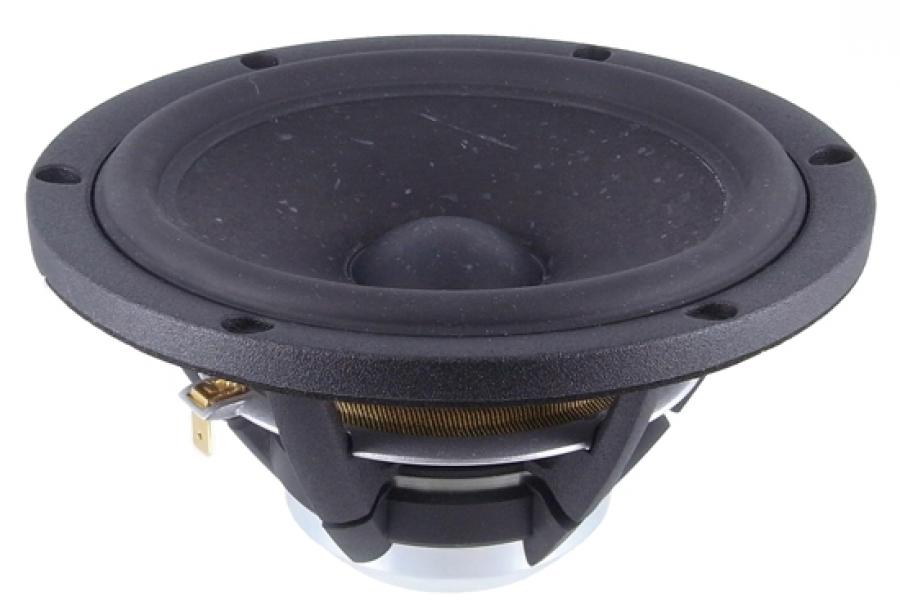

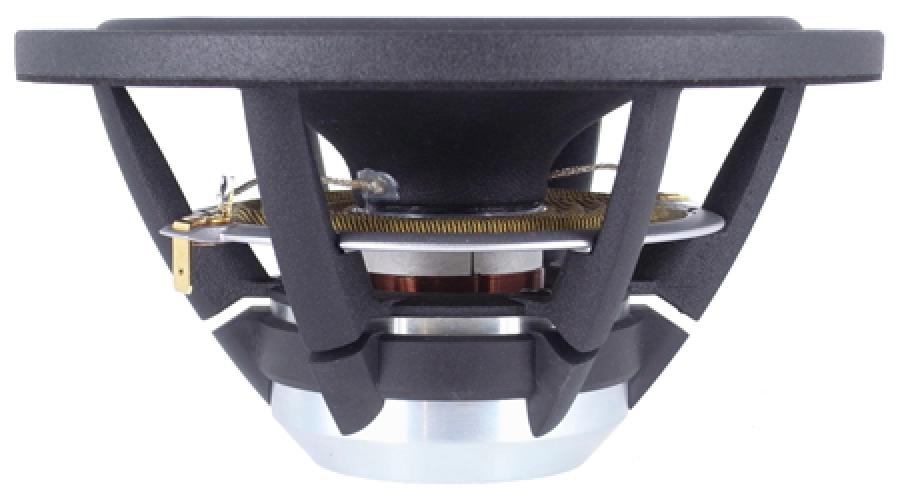

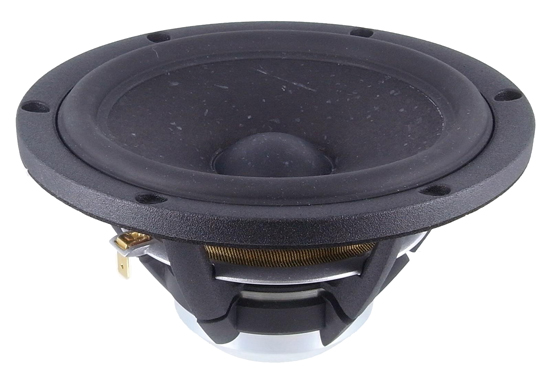

Satori MW16P-4 Woofer - Black - 4 ohm
Satori is a Buddhist term for enlightenment. The word literally means "understanding". Satori translates as a flash of awareness. Satori drivers are designed for subtlety and realism.
- Egyptian Reed Cone
- Vented aerodynamic cast aluminum chassis for optimum strength and low compression
- Proprietary cone material with EGYPTIAN PAPYRUS fibres made in-house
- Soft low damping rubber surround for optimum transient response
- Advanced BIMAX spider for improved linearity
- Powerful optimized low distortion neodymium motor system
- Non-conducting fibre glass voice coil former for minimum damping
- Extended copper sleeve on pole piece for low inductance and reduced distortion
- CCAW voice coil for reduced moving mass
- Long life silver lead wires attached 180° apart for improved stability
- Vented pole piece for reduced compression
- High piston to chassis diameter ratio
- Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
Link to PDF specification sheet download.
Here are some box alignments you might consider using.
- For a sealed box try 0.2 cubic foot (5.6 liters) with 50% filling for an F3 of about 88Hz.
- In 0.5 cubic foot (14 liters) with a 1.5" vent by 7" long your F3 is about 50Hz.
- In 0.7 cubic foot (20 liters) with a 1.5" vent by 6" long your F3 is about 45Hz.
