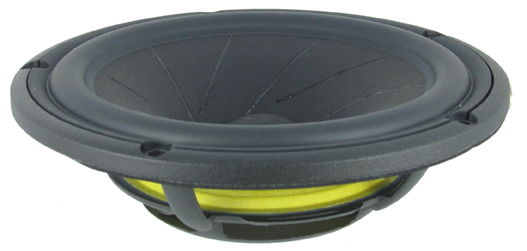

Scanspeak Revelator 18W/0-00-01 6.5" Passive Radiator
Click to enlarge
|
 Price: $118.00
Product ID : 18w_0-00-01
Manufacturer: ScanSpeak
Weight: 1.00 lbs
Purchase |
Description
Scan-speak 18W/0-00-01 6.5" Revelator Passive Radiator
- The Revelator 18W passive radiator is intended for slave systems. This finish is uncoated, matching the uncoated Revelators.
- It utilizes a standard-roll spider with good stability, high linearity and proper xcursion limitation.
- Suggested box with e.g. 18W/4531G00, start out with e.g. 24-25 liter box, use one or two passive radiators. If the box tuning is too high, try adding 5 gram pieces to the aluminium block on the rear side (5, 10 and up to 15 gram). The speaker is prepared for applying added weight with an M4 screw thread in the aluminium block. When trimming is completed, apply glue to the screw holding the added weight to lock it and prevent potential rattle.
Resonance Frequency 20.2Hz
Qms 7.1
Rms 0.6 kg/s
Mms 33.5 g
Cms 1.85 mm/N
Sd 150 cm2
Vas 59 liters
Max Mech. Excursion 15mm peak
Can't find the data? Many loudspeaker spec sheets (PDF) are available.
