Eton 8-800/37HEX 8" HexaCone Woofer

Eton 8" HEXACONE Woofer (8-800/37HEX)

Eton 8-800/37Hex Spec Sheet PDF

A reliable bass driver with universal applications. Regardless if closed or vented its application range reaches from subwoofer constructions up to sophisticated 2-way systems. Its greatest strength is neutral performance up to the higher mid range.

Recommended Enclosure: 1.5 cu ft vented (single 2" Flared Vent x 4.9" length) F3 ~43 Hz.

  Type: Vented Box
  Shape: Prism, square (optimum)
  Vb =  1.5 cu.ft
  Fb =  30.98 Hz
  QL =  6.903
  F3 =  42.58 Hz
  Fill = normal
  No. of Vents = 1
    Vent shape = round
    Vent ends = two flared
    Dv =  50.8 mm
    Lv =  130 mm

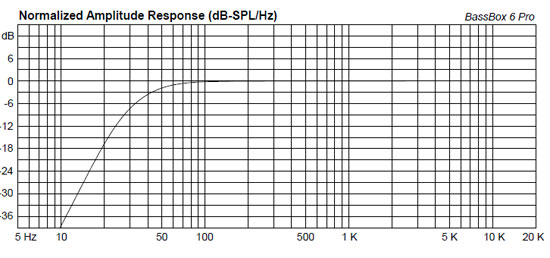

Simulated response graph 1.5 cu. ft vented:

Alternate Enclosure: 0.5 cubic foot sealed, F3~ 73 Hz. With the lowish Qts, we recommend bass reflex for best results.

Parameters:

• Flange 228mm
• Cut-out 202mm
• Depth 96mm
• Excellent sound characteristics
• Outstanding pulse response
• Aluminum diecast basket
• Znom 8 ohm
• Re 5.5 ohm
• Le@1kHz 0.69 mH
• fs 36 Hz
• Qms 2.44
• Qes 0.46
• Qts 0.39
• Mms 31 g
• Sd 235 cm2
• BL 9.3 Tm
• Vas 45.5 ltrs
• Xmax 3.0 mm peak
• VC Ø 37 mm
• Sensitivity 1W/1m 89 dB
• Nom. Power DIN 120 W

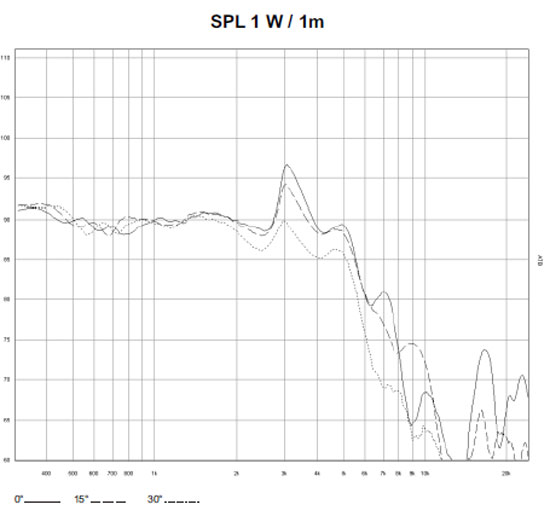

Manufacturer frequency response graph:
