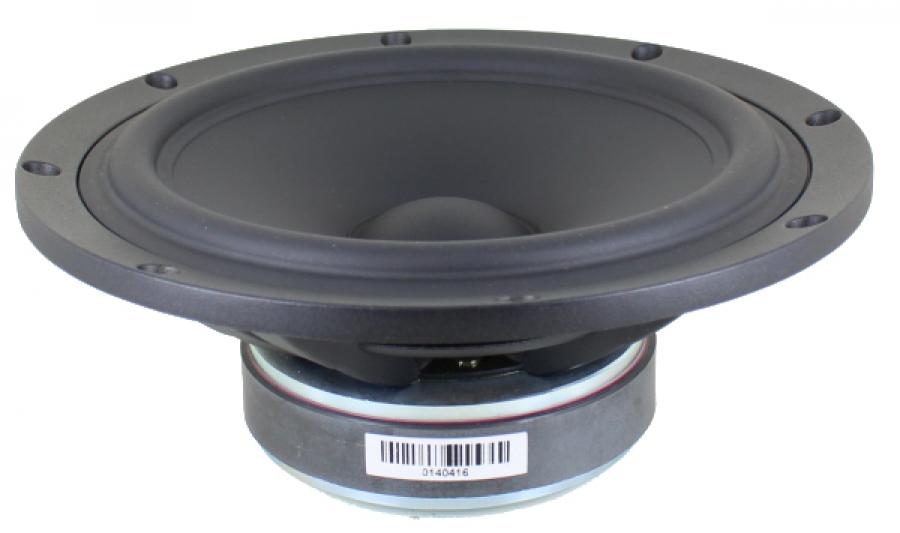

SB Acoustics SB23NRXS45-8, 8" Woofer
SB Acoustics 8" coated paper cone woofer. 8 ohm impedance.
SB23NRXS45 + H1304 + H1189 3way Passive Crossover Design

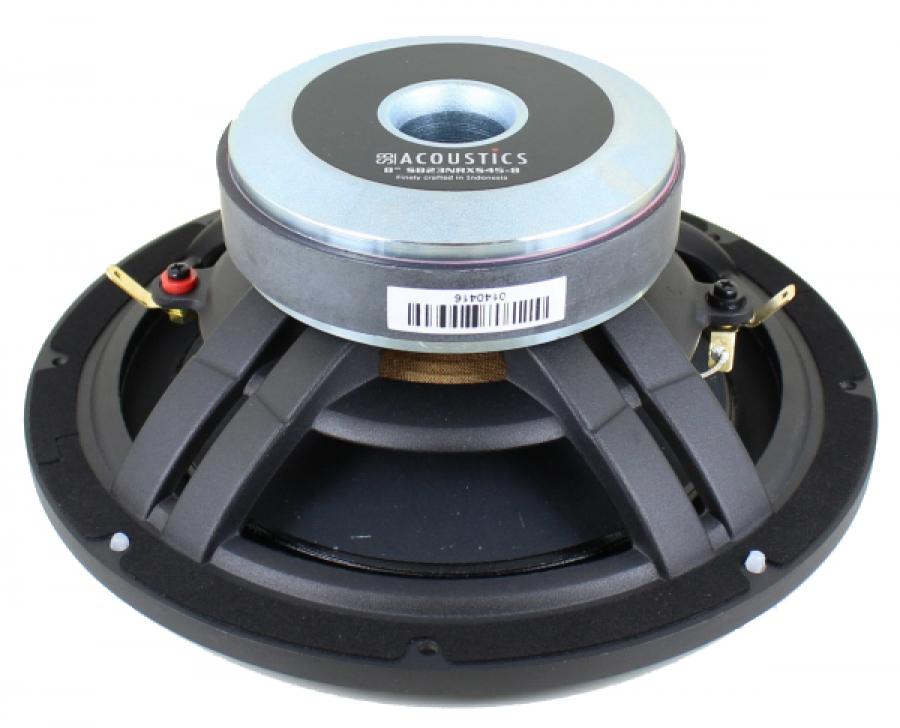

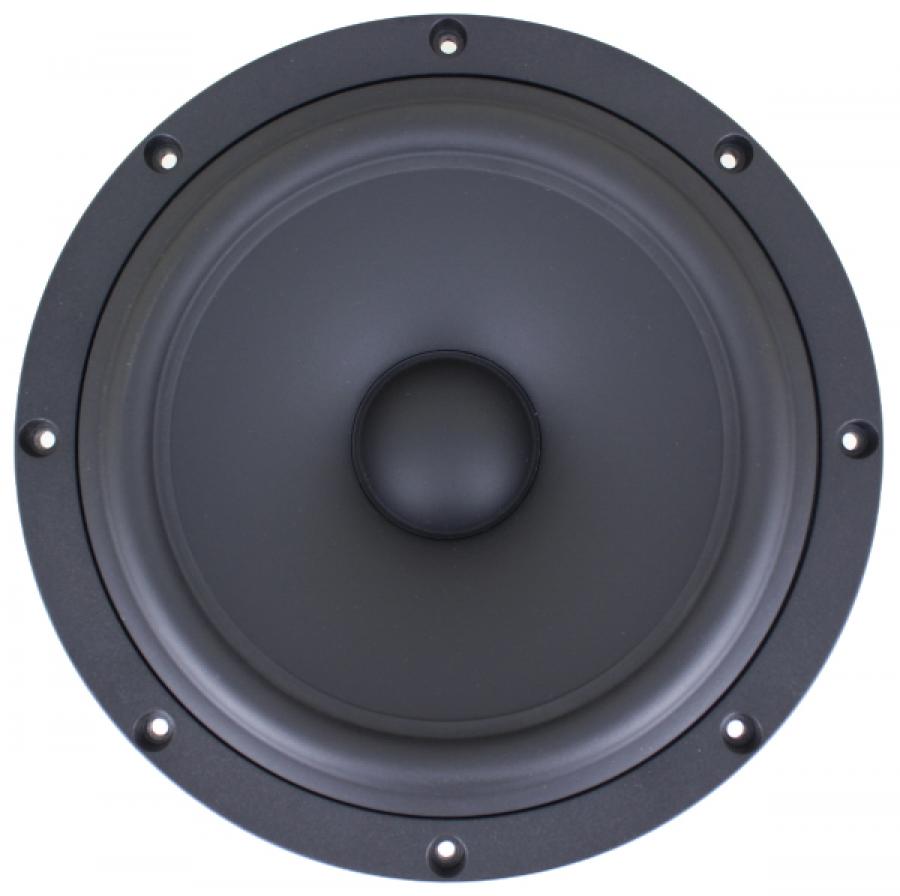

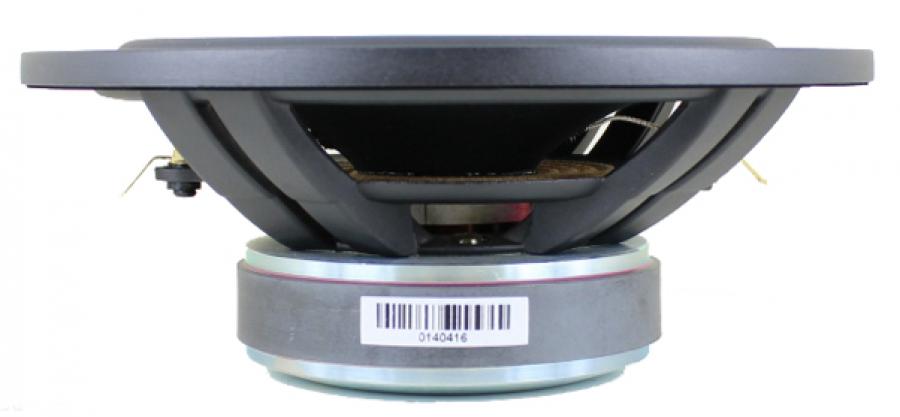

This 8 ohms woofer features Norex paper cone with special coating (Egyptian papyrus and long fibers), rigid cast frame design for minimal reflections, rubber surround, shorting ring to reduce distortion, and shallow 3-1/8" depth. Qts of 0.38 allows for either sealed or vented boxes. The woofer has a proprietary composition paper cone made in-house and a rigid cast frame with ventilated spider and large vented pole piece. A low damping rubber surround assures decent midrange reproduction. A shorting ring is used in the motor to reduce intermodulation distortion and improve inductance symmetry.
Spec sheet: SB23NRXS45-8 PDF
Advanced Features
- Soft low damping rubber surround for improved transient response
- Shorting ring in motor system for reduced distortion
- Vented pole piece for reduced compression
- Vented cast aluminium chassis for optimum strength and low compression
- Shallow design
- Non-conducting fiberglass voice coil former for minimum damping
- CCAW voice coil for reduced moving mass
- Long-life silver lead wires
Box Recommendations
- Sealed box of 0.75 cubic feet with 50% filling has an F3 of 55Hz.
- Vented box of 1.0 cubic feet with 2" diameter vent by 6" long has F3 of 41Hz
- Vented box of 1.25 cubic feet with 2" diameter vent by 4" long has F3 of 38Hz
- Vented box of 1.75 cubic feet with 3" diameter vent by 8" long has F3 of 32Hz
