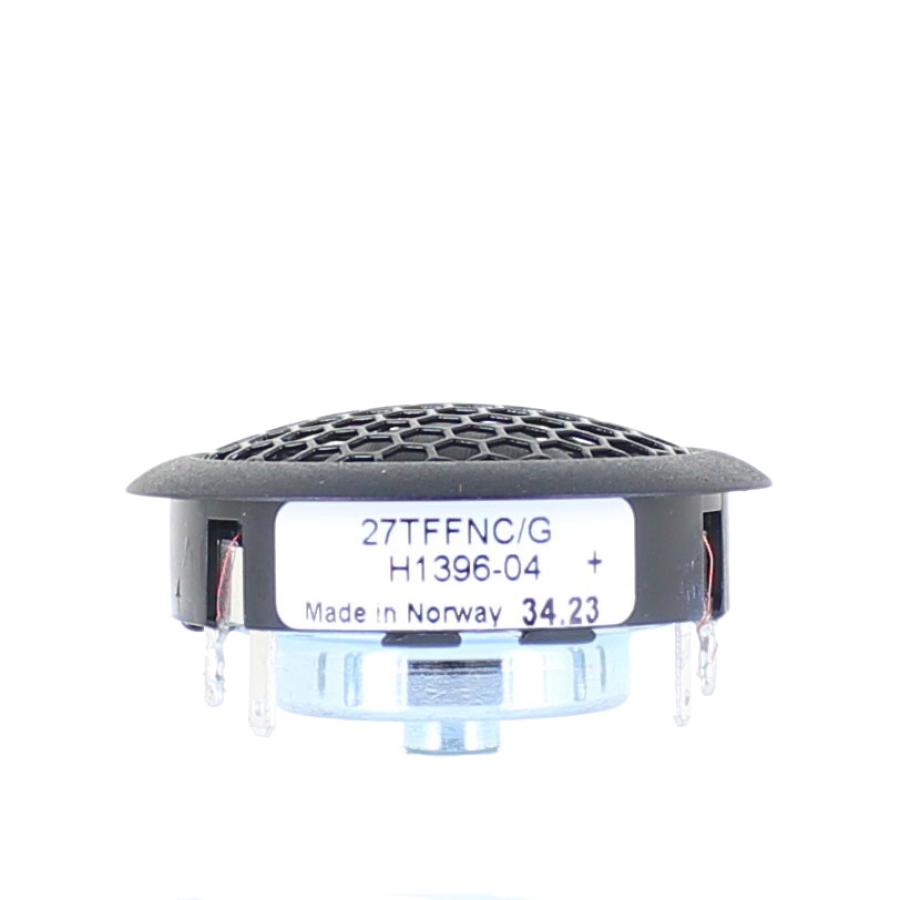

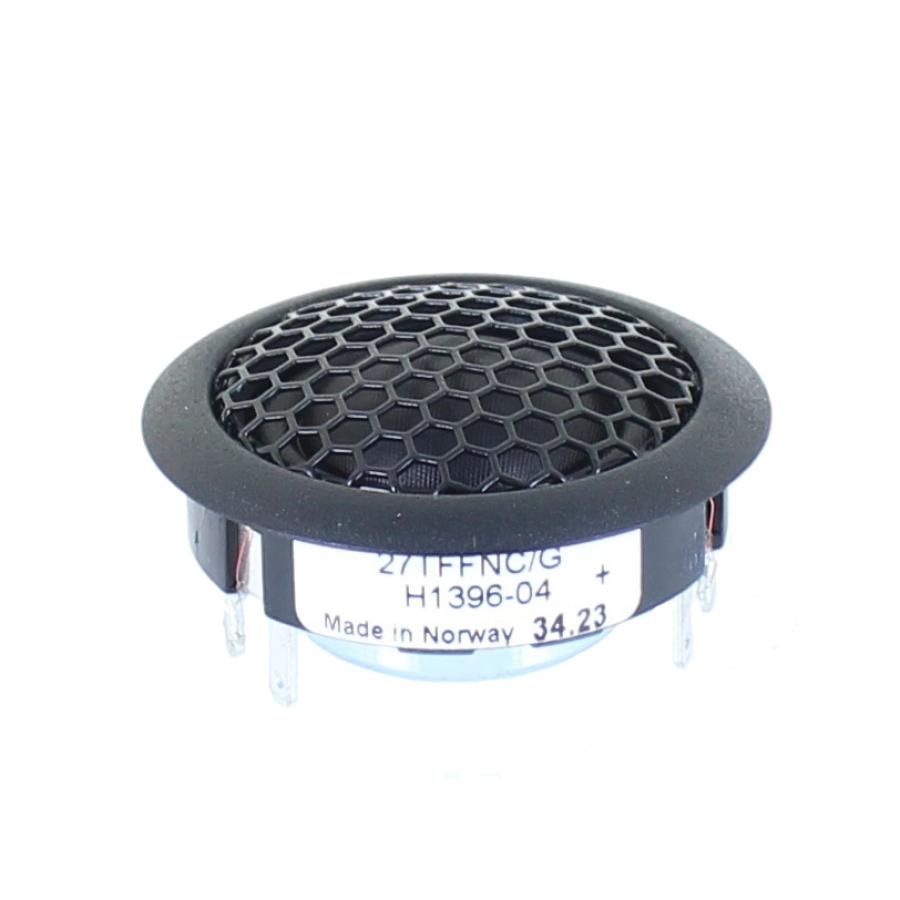

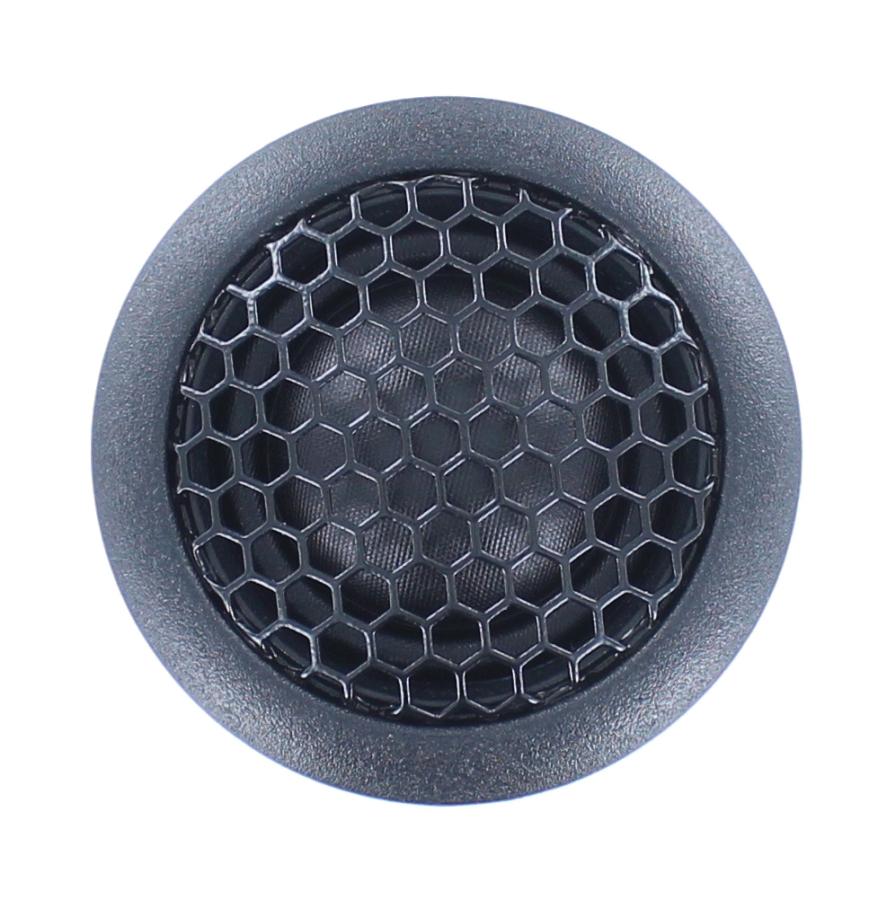

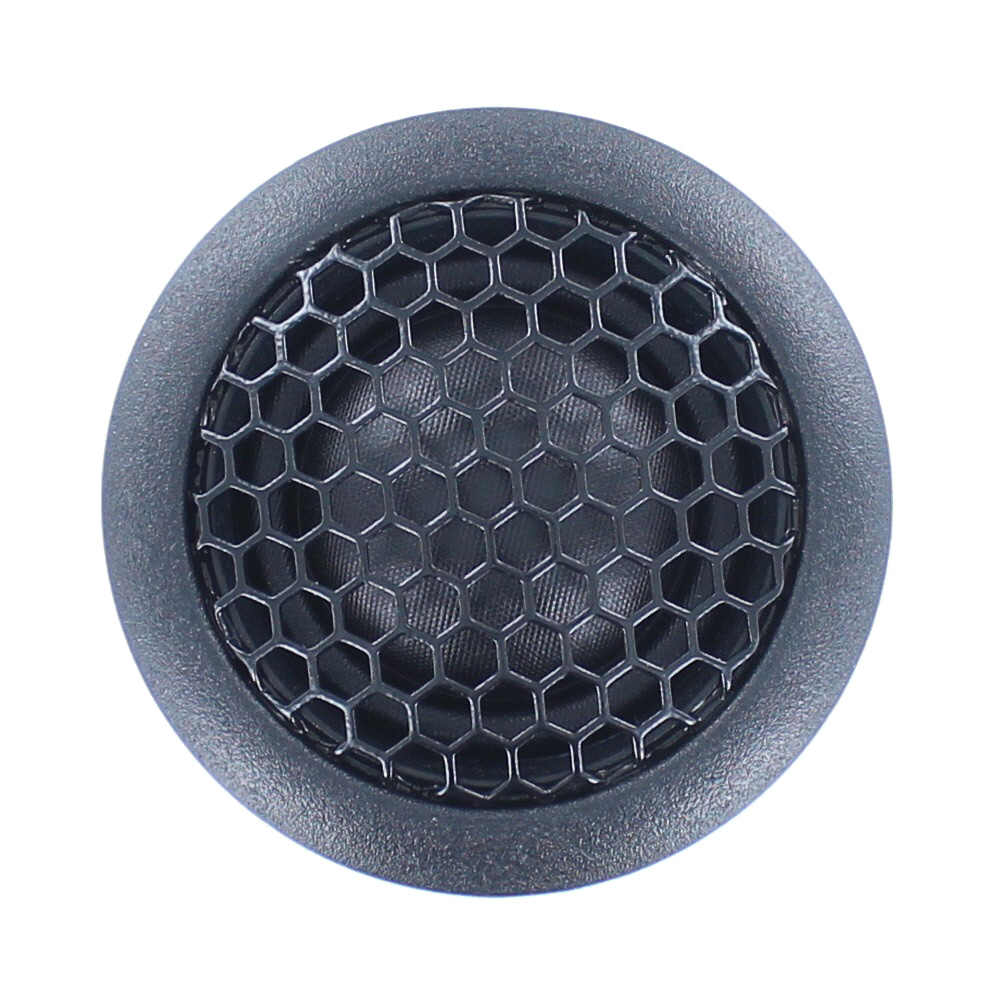

SEAS Prestige 27TFFNC/G (H1396) 1" Textile Dome Tweeter
Click to enlarge
More imagesClick to enlarge |
 Price: $43.50 (each)
Product ID : h1396
Manufacturer: Seas Prestige
Weight: 0.11 lbs
Purchase |
Description
SEAS Prestige 27TFFNC/G (H1396) 1" Textile Dome Tweeter
Compact design neodymium magnet tweeter for high quality speaker designs in small cabinets or automobiles.
Sonolex precoated lightweight fabric diaphragm and suspension allows for very tight production tolerances and high consistency.
Wide roll surround together with a double chamber magnet system results in a low fundamental frequency.
Very low magnetic stray fields make this unit suitable for A/V systems.
The voice coil is immersed in magnetic fluid, allowing high power handling capacity and simplified crossover design.

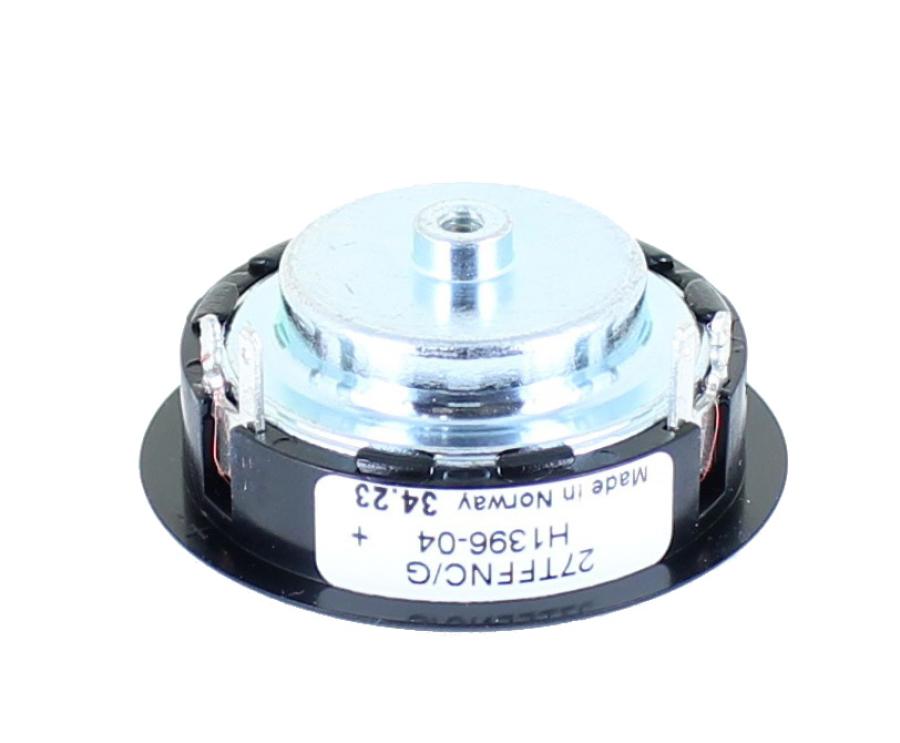

Seas does not provide mounting hardware for this tweeter. It can be mounted by press fit, mounting from behind or using a modified mounting cup. The back of the tweeter is threaded for an M4 bolt for fastening from behind. LPG tweeter mounts will also work with slight modification. You will have to drill a couple holes through the back of the plastic mount for proper fit. Use an adhesive to glue the tweeter into the mount. The Vifa tweeter mounts will not work for this tweeter.
Spec sheet: Seas Prestige 27TFFNC/G H1396 Tweeter
