Fountek FW168 6.5" Aluminum Cone Woofer
Click to enlarge
|
 Price: $46.00
Product ID : fw168
Manufacturer: Fountek
Weight: 4.18 lbs
Purchase |
Description
Fountek FW168 6.5" Aluminum Cone Woofer
- Aluminum Cone
- Aluminum Phase Plug
- Die Cast Chassis
- 36mm Voice Coil Diameter
| Specifications | ||

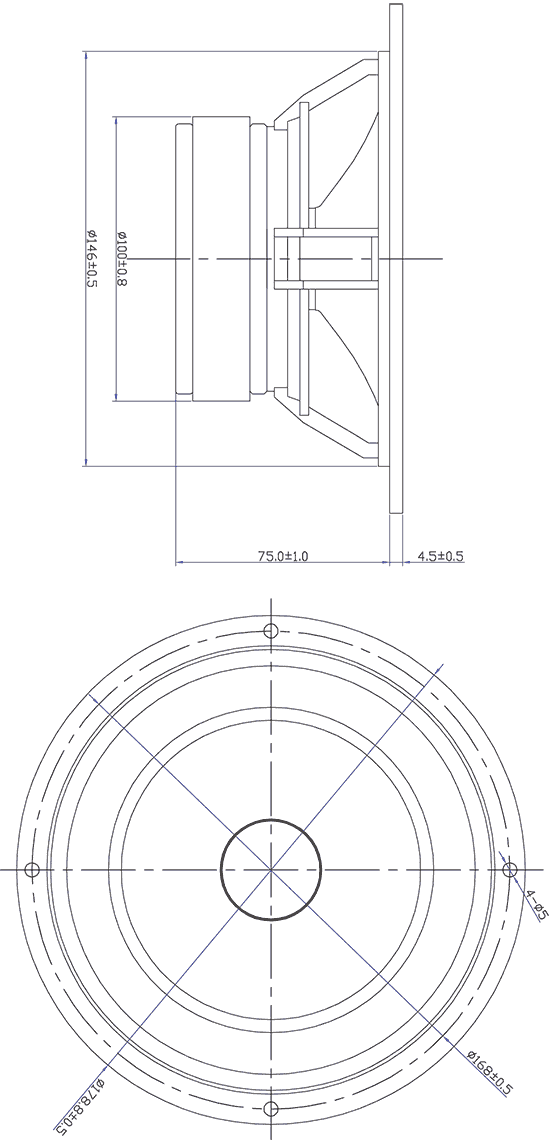

| Overall Dimensions | D168X79.5mm | |
| Net. Weight | 1.76kgs | |
| Nominal Power Handlng | 50 W rms | |
| Nominal Impedance | 8 Ohms | |
| Sensitivity 1W/1M | 87.3dB | |
| Frequency Response | 40-4,000Hz | |
| Resonant frequency | 45Hz | |
| Magnet System | ||
| Magnet system type | ferrite | |
| Magnetic Gap Height | 5.8mm | |
| B Flux Density | 1.0T | |
| Bl Product | 8.2Tm | |
| Max Linear Excursion | 4.6mm +/- | |
| Voice Coil | ||
| Voice Coil Diameter | 36mm | |
| Voice Coil Height | 15mm | |
| Voice Coil Former | Black aluminum | |
| Voice Coil Wire | copper round | |
| Number of Layers | 2 | |
| DC Resistance | 7.2 Ohms | |
| T/S Parameter | ||
| Cms | 0.821mm/N | |
| Sd | 119cm^2 | |
| Vas | 16.5L | |
| Mmd | 13.955gm | |
| Mms | 14.7gm | |
| Qms | 3.246 | |
| Qes | 0.452 | |
| Qts | 0.397 | |
Can't find the data? Many loudspeaker spec sheets (PDF) are available.
Product Reviews
Login or Register to write a review.
Reviewed by reeve_par@yahoo.com
reeve_par@yahoo.com bought "Fountek FW168 6.5" Aluminum Cone Woofer"
on our website
08/31/2011 - 02:07:04 PM
Nice driver that's overlooked
Really nice driver after taming the woofer breakup. I've used it in a 2 way bookshelf speaker (Levitation TM) and a 2.5 way design (Ruination 2.5) and would highly recommend them. For enclosure sizes I've had luck with the drivers in volumes of .38 cubic feet to .75 cubic feet.
