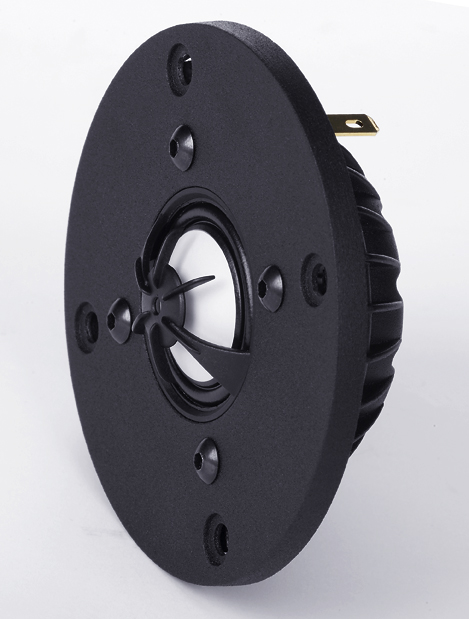

Eton 26HD1/A8 Symphony, Magnesium Dome Tweeter
Click to enlarge
|
 Price: $146.35 (each)
Product ID : 26hd1_a8
Manufacturer: Eton
Weight: 1.10 lbs
Purchase |
Description
Eton 26HD1/A8 Symphony, Magnesium Dome Tweeter
Spec sheet: Eton 26HD1/A8 PDF
- Magnesium diaphragm sandwiched between ceramic layers
- Sandwich design provides stiffness and high damping factor (magnesium)
- All the detail without any sharpness
- Neodymium magnet
- Protective diffuser
- Non-reflective rear chamber
- Aluminum former
Specifications:
- Fs 800 Hz
- Nominal impedance 8 ohm
- Sensitivity 91dB
- Frequency Range 2000 - 25,000Hz
- Re 6.6 ohm
- Mms 0.2g
- Sd 6.8 cm2
- VCØ 25mm
- Nominal Power 100W
Dimensions:
- Flange diameter 90mm (3.54")
- Cut out diameter 65mm (2.56") Notch for terminals
- Depth 20.82mm (0.82")
- Hole mounting ring diameter 75mm (2.95")
- Flange thickness 5.2mm (0.2")
See pdf file for more specs and curves.
