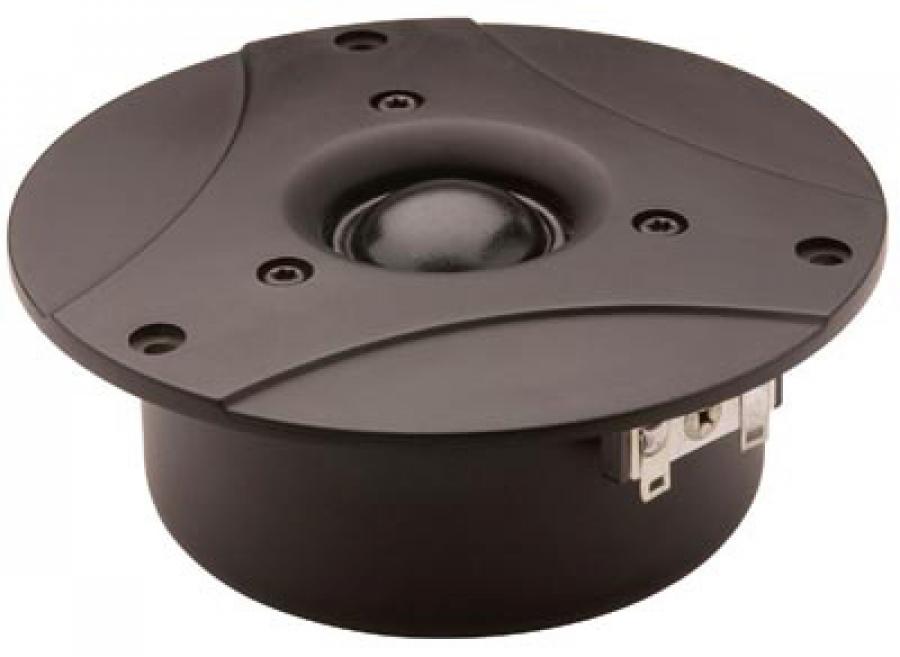

Hi-Vi K1 1" Fabric Dome Tweeter, 116 mm Flange
Click to enlarge
|
 Price: $13.80 (each)
Product ID : k1
Manufacturer: HiVi
Weight: 2.35 lbs
Purchase |
Description
Hi-Vi K1 1" Fabric Dome Tweeter, 116 mm Flange
Hi-Vi K1 1" fabric dome tweeter with decorative face plate. Shielded magnet, 92dB, fs 800Hz, 5 ohm.
- K1 is a new generation of high-frequency dome loudspeaker
- Natural fiber high damping dome membrane, coated with special damping material.
- Natural and detailed sound performance.
- Flat frequency, could reach 25 KHz in high frequency range.
- Heat-resistant alley(magnesium/aluminum) in frame, aluminum voice coil wire coated with copper, ferro fluid cooled.
- K1 has high -performance magnetic structure, a symmetrical driving magnetic field for low distortion degree, 92 dB sensitivity, high magnetic density and strong faceplate with creative design. Detailed and natural performance and be used widely.
| Nominal Impedance (Z)(Ω) : | 5 | |
| Resonance Frequency (Fs)(Hz) : | 800 | |
| Nominal Power Handling (Pnom)(W) : | 15 | |
| Sensitivity (2.83v/1m)(dB) : | 92 | |
| Weight (M)(Kg) : | 0.9 | |
| VC Diameter (mm) : | 25 | |
| DC (Re)(Ω) : | 4.6 | |
| VC Layers : | 2 | |
| VC Former : | CCAW | |
| VC Frame : | ALuminum | |
| Magnet System : | Shielded | |
| Magnet Former : | Ferrite | |
| Recommended Crossover Frequency(Hz) : | >2500Hz | |
