Hi-Vi Research T20-8

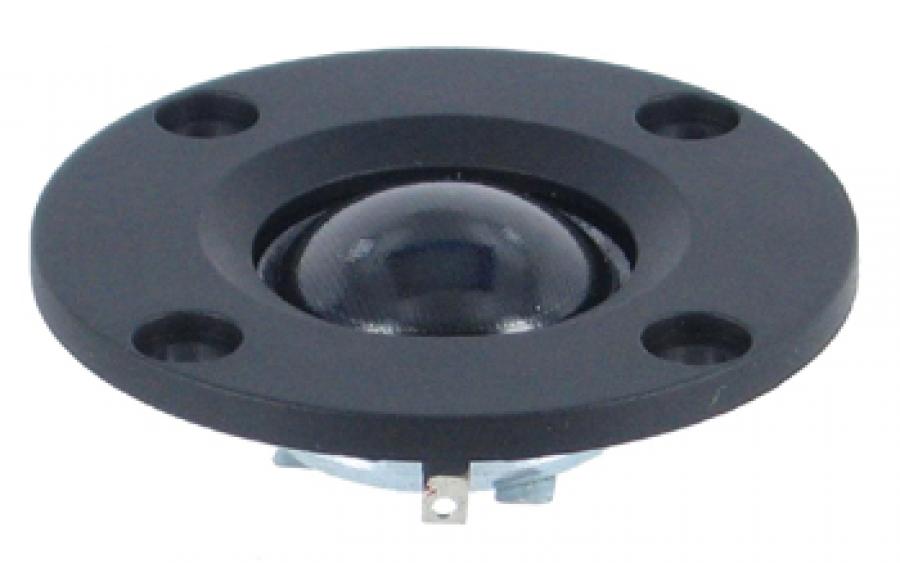

The T20-8 is a 20mm (3/4") textile dome tweeter. The tweeter has a small flange of only 53mm (about 2") and a depth of only 10mm (0.4"). The high sensitivity and small size make it very useful for multi speaker systems, like television bar speakers. We recommend a minimum 4,000Hz crossover frequency.
General Data |
Overall Dimensions :53mm (2.09") Cut Out Diameter: 36mm (1.42") |
|
Nominal Power Handling (Pnom)(W) : |
15 |
Max Power Handling (Pmax)(W) : |
30 |
Sensitivity (2.83v/1m)(dB) : |
89 |
Weight (M)(Kg) : |
0.09 |
Electrical Data |
Nominal Impedance (Z)(ohms) : |
8 |
DC (Re)(ohms) : |
6.5 |
Voice Coil and Magnet Parameters |
VC Diameter (mm) : |
28 |
VC Length (H)(mm) : |
1.5 |
VC Former : |
CCAW |
VC Frame : |
Alumium |
Magnet System : |
Shielded |
Magnet Former : |
Neodymium |
T-S Parameters |
Resonance Frequency (Fs)(Hz) : |
2000 |
