Tymphany LAT 700 8/8 ohm (4 ohm in parallel)

These LAT speakers have paint blemishes.  The paint has bubbled up or chipped off on these remaining drivers.  This is not affecting the speaker performance.  We have reduced the price to this final close out special for these last remaining LAT speakers with cosmetic blemishes.

Limited Number Available - Then no more

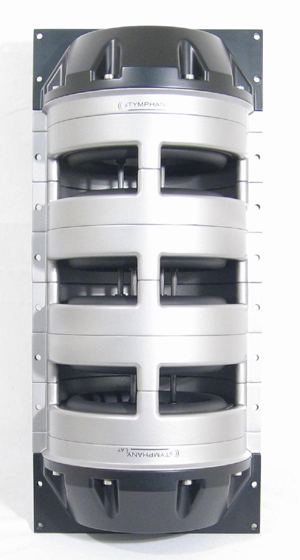

 Tymphany LAT 700 8/8 ohm Subwoofer

Measured with coils in parallel for 4 ohm

Stereo 8 ohm or wire in parallel for mono 4 ohm or wire in series for mono 16 ohm.

The LAT 700 has the power of two 12" subwoofers in a sleek tube shaped transducer.

Dimensions:
8.5" wide by 19" long
3.8" deep
3.85" high

Suggested Alignments:

In 2.5 cubic foot sealed box with 50% loose filling the F3 is 37Hz.

In 2.0 cubic foot sealed box with 50% loose filling the F3 is 38Hz.

In 1.75 cubic foot sealed box with 50% loose filling the F3 is 39Hz.

In 1.5 cubic foot sealed box with 50% loose filling the F3 is 40Hz.

Larger box sizes usually sound better.  If used with a plate amp that has a boost on the low end, it will go deeper than this.
