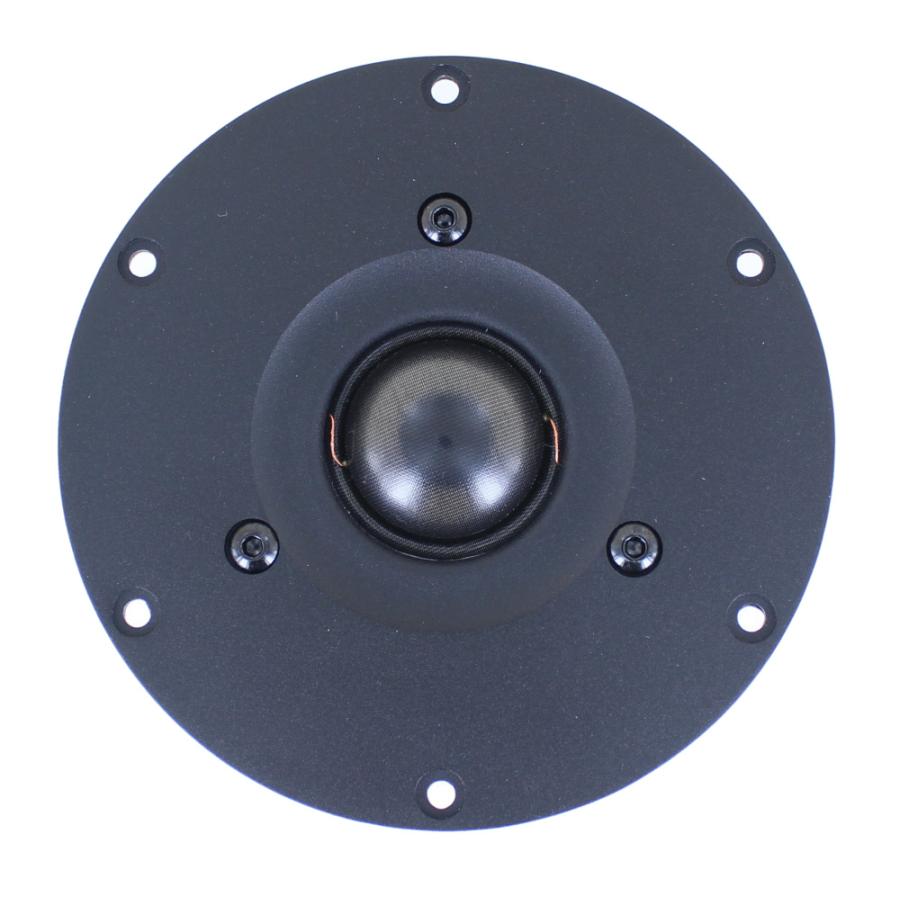

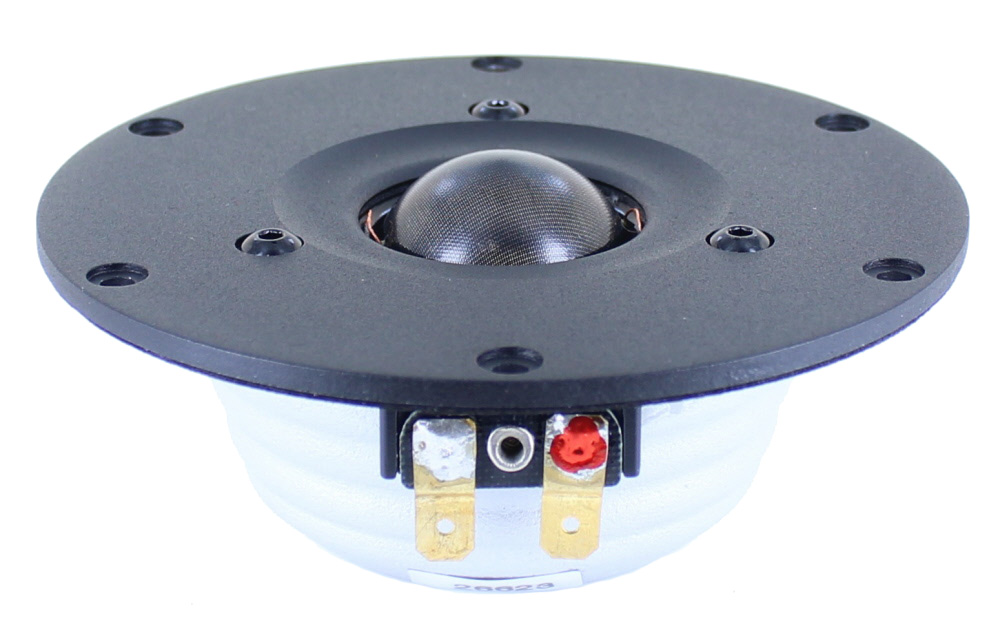

Morel Supreme 110 tweeter (ST1108) Each
Spec sheet: Morel ST1108 Supreme Tweeter
Sold as each, but packaged in matched pairs.
Innovative engineering and an advanced approach to acoustic construction makes SUPREME a superior high performance tweeter. With an acoustic construction based on the underhung voice coil configuration method, SUPREME voice coil moves in a significantly higher magnetic field and fully remains there at all times during operation. As a result, SUPREME provides a linear excursion of the coil in the magnetic field; eliminates intermodulation distortion created by non-linear excursion; eliminates sound compression at high levels; and considerably improves low frequency reproduction.
SPECIFICATIONS: Supreme 110
- Overall Dimensions 110 (110mm)
- Nominal Power Handling P 220W 12dB@2200Hz
- 120W 6dB @2200Hz
- Transient Power - 10ms 1000W
- Nominal Impedance 8 ohm
- Sensitivity (2.83V@1M) 91.5dB
- Frequency Response 1400 - 22,000Hz
- Voice Coil Former Aluminum
- Voice Coil Wire Hexatech Aluminum
- Number Layers 2
- Dome Material Acuflex Coated Textile
Voice coil replacement code: R-32/33
