Curt's Sten II MTM Speaker Kit - Pair

"Sten II" MTM Speaker Kit by Curt's Speaker Design Works - Drivers & Crossovers

Madisound would like to thank Curt Campbell and Wayne Wendel for this design and their overall contribution to the DIY speaker building community.

Each speaker uses two Aurasound NS6-255-8A 6" paper cone woofers teamed up with a Vifa BC25SC06-04 1" textile dome tweeter in MTM configuration. These speakers are designed for use in 2-channel stereo and Home Theater systems, or as a compliment to the larger Stentorians.

The crossovers come fully assembled on a 64B circuit board and the parts hold to the exact values of the design. The mid/woofer section includes a low resistance 2.7 mH Sledgehammer 15 awg Steel Laminate inductor and 10.0 mfd polypropylene capacitor. The tweeter section includes a 10.0 mfd Bennic polypropylene capacitor, a 5.6 ohm Mundorf MOX resistor and 0.10 mH air core inductor.

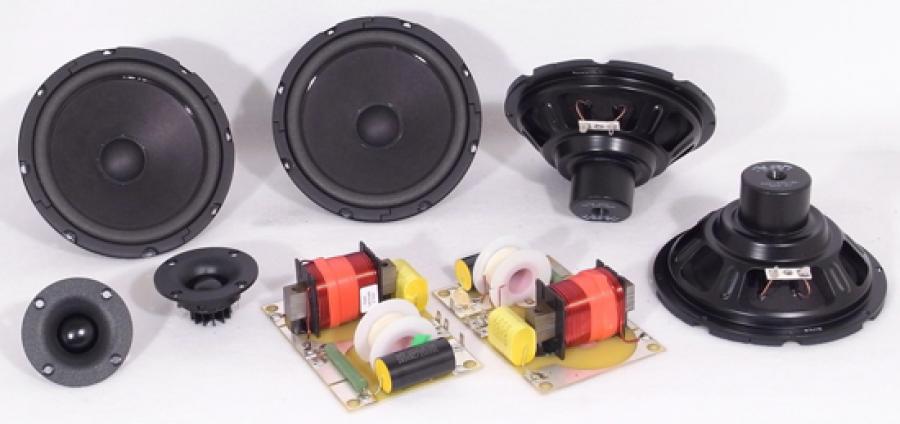

Each Sten II Kit Includes Drivers & Crossovers for a stereo pair of speakers:

• (4) Aurasound NS6-255-8A 6" Paper cone woofers
• (2) Vifa BC25SC06-04 1" textile dome tweeters
• (2) Professionally Assembled Crossovers (see schematic)

Other parts to consider:

• (1-2 pounds) Acousta-Stuf, Long Haired Wool, or Poly Fill - internal damping material of your choice
• (2) Input Cups + (8) OX6OVAL3/4 - or - (4, 2R & 2B) Binding Posts
• (14 feet) Supra Classic 1.6 15 awg internal speaker wire
• (40) OX6PAN3/4 Philips Head screws - or - OXSOCKET6X3/4 Hex Head screws - mount drivers to enclosure
• (12 feet) Foam Gasket Tape - for airtight seal of drivers to enclosure
• (6) QC110 Black Quick Connects - for (-) tabs on woofers and tweeters
• (12) QC187 Red Quick Connects - for (+) tabs on the woofers, tweeter, and crossovers
• (6) QC187 Black Quick Connects - for the (-) tabs on the crossovers
• Order an additional 2 red and 2 black QC187's if you purchase input cups or binding posts and you don't plan on soldering

The Stentorian drivers, tweeters, and assembled crossovers are also available at a discounted price. Please select from the drop down menu above. If you select the Stentorian option, you will be shipped 12 woofers, 2 tweeters, and 2 assembled crossovers. The assembled crossovers use similar quality parts to the Sten II.

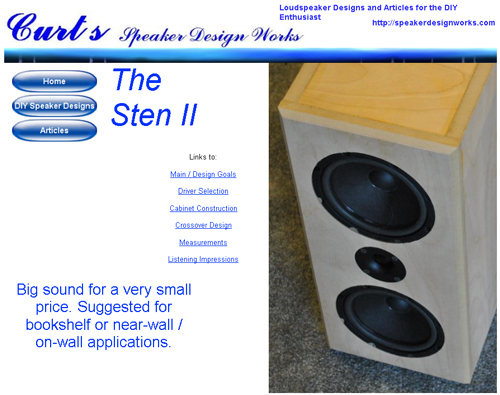

Full documentation on the Sten II Kit including cabinet plans and measurements are located on Curt's Speaker Design Works website.
