Zaph|Audio ZA5.3c Center Channel, Single, With Cabinet

ZA5.3c MTM Center Channel Complete with Cabinets from the Zaph|Audio ZA5 Family

This is the MTM Center Channel offering from the ZA5 family of kits. The ZA5.3c utilizes two woofers flanking a single tweeter with a port tube to the outside of each woofer. The enclosure is designed to rest horizontally.This version of the ZA5.3c includes a fully assembled front ported cabinet. This cabinet is very well constructed of 18mm (0.71") mdf and well braced internally. The cabinets are precisely cut for flush mounting of the drivers, port tubes, and DB-CUP input cup. The woofer holes are chamfered to promote optimal airflow. Please view additional pictures below.

The Zaph Audio ZA5 Family is a collection of speaker kits using the ZA14W08 woofer and the Vifa DQ25SC16-04 tweeter. These drivers and subsequent kits represent fantastic performance at a very attractive price. Detailed information on the Zaph ZA14W08 woofer and ZA5 kits can be found on the Zaph Audio website.

There are several designs to choose from to meet your speaker building goals. Consider the ZA5 kits for anything from small monitors to floor standing towers, from stand mounted MTM stereo to a complete surround sound masterpiece. The variety of kits in the ZA5 family affords you the choices to specifically fit your project needs.

Madisound is offering these kits as a combination of the ZA14W08 woofers and DQ25SC16-04 tweeters along with the associated crossovers. These high quality crossovers come professionally assembled on a printed circuit board for easy installation and hookup. All crossover parts hold to the exact values of the crossover design. Kit pricing includes at least a 10% discount on all parts and represent an excellent value.

This kit has everything you need to assemble a single center channel speaker. While we recommend soldering all speaker wire connections, this kit can easily be assembled with minimal tools. All that is required is a screwdriver/drill, a razor blade/wire stripper, and set of pliers/crimpers.

Included:

• (2) ZA14W08 Aluminum Cone Midbass Woofers
• (1) DQ25SC16-04 Titanium Dome Tweeters
• (1) Professionally Assembled Crossovers - for schematic click here.
• (1) Fully Assembled, Pre-Cut Cabinets in Black Woodgrain Finish
• (7ft) Supra Classic 1.6 (15AWG) internal speaker wire
• (2) 1.5" x 4" PT-F415 port tubes
• (1) 27” x 42” x 5/8” Foam Sheet for lining the internal walls
• (1) GOOP adhesive to glue foam to walls
• (1) QC110R for + tweeter tabs
• (3) QC110B Quick Connects for – tweeter & - woofer tabs
• (6) QC187R Quick Connects for + woofer, + crossover & + binding post tabs
• (4) QC187B Quick Connects for – crossover & - binding post tabs
• (12) #8x1 Black Ox & Wax Socket Head & Wood Screws for mounting drivers to baffle
• (4) #6x3/4 Black Ox & Wax Pan Head Wood Screws for mounting the input cup to the cabinet

Vital Information:

• .70 cubic feet (20 liters)
• 8” tall, 22” wide, and 10.5” deep
• Front ported
• Black Grill Cover included
• For cabinet drawing click here.

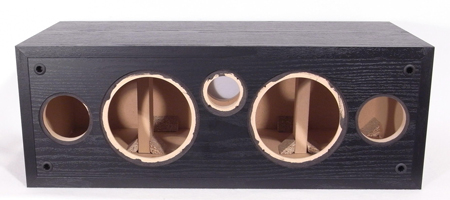

Front View of ZA5.3 Center Channel Cabinet

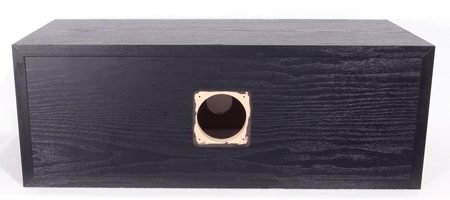

Rear View of ZA53. Center Channel Cabinet

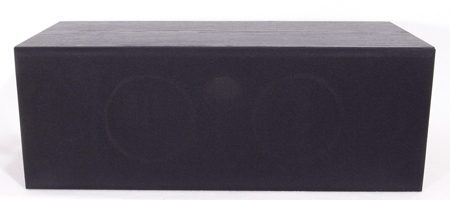

Front View of ZA5.3 Center Channel Cabinet with Grill Cover
