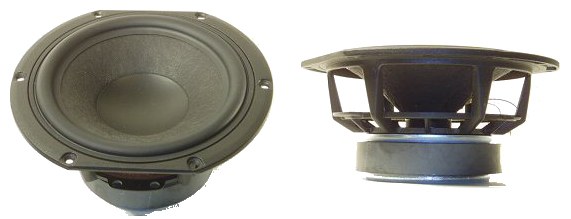

Peerless Nomex 830875 - 6.5" Nomex Cone Woofer

Peerless Nomex 830875 - 6.5" Nomex Cone Woofer

• Rubber surround
• Cast frame - truncated
• Ventilated raised spider
• Shorting rings
• 182mm flange
• 164mm truncated
• 145mm cut out
• 78mm depth

Suggested box alignments:

• Sealed box of 8 liters (0.28cf); F3 of 85Hz
• Vented box of 12 liters (0.45cf); F3 of 53Hz; 2" port by 5.6" long

This 6.5 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is nomex based, offering a unique visual and acoustic experience.
