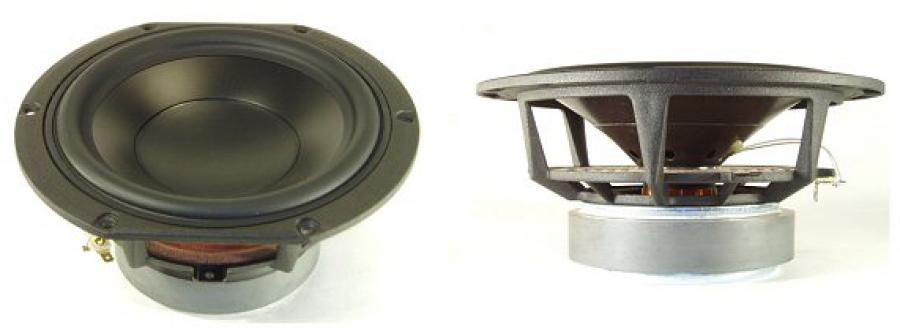

Peerless PPB 830874 - 6.5" Poly Cone Woofer

Peerless 6.5" #830874

This 6.5 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is damped black polypropylene, offering a unique visual and acoustic experience.

Suggested box alignments:

Sealed box of 8 liters (0.28cf); F3 of 80Hz

Vented box of 14 liters (0.5cf); F3 of 48Hz; 2" port by 5.5" long
