Store Home >> Loudspeaker Raw Drivers >> Tweeters >> Ribbon Tweeters

Print Version

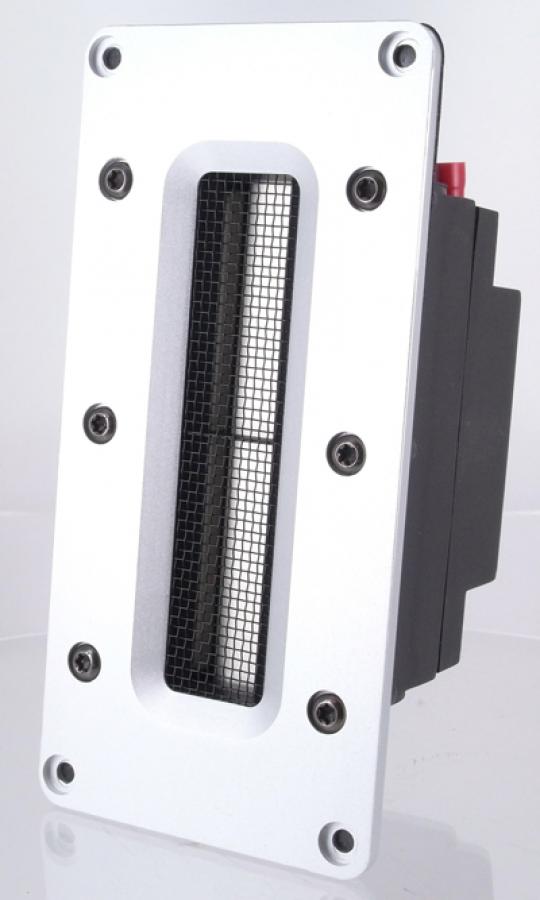

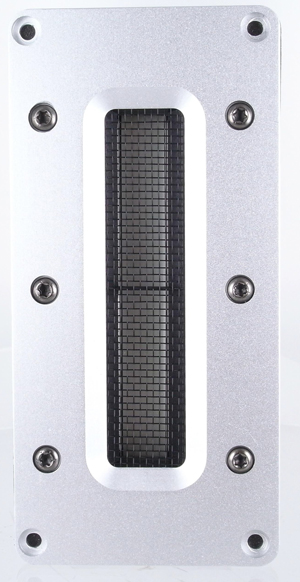

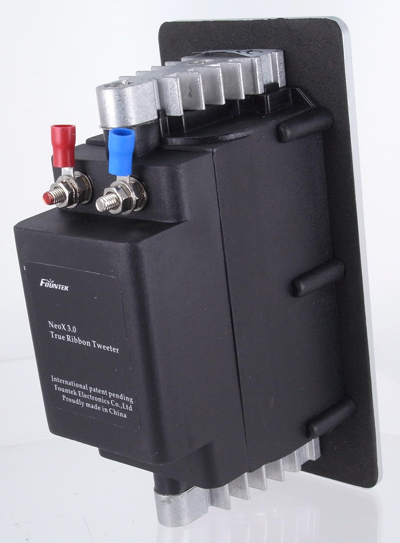

Fountek NeoX 3.0 Ribbon Tweeter with Silver Faceplate

Click to enlarge

More images

Click to enlarge

Price: $163.50 (each)

Product ID : NEOX3.0-SQ-SLV

Manufacturer: Fountek

Weight: 2.50 lbs

0 review(s)

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

| Add To Wish List

Purchase

Out of stock.

Description

Fountek NeoX 3.0 Ribbon Tweeter with Silver Faceplate

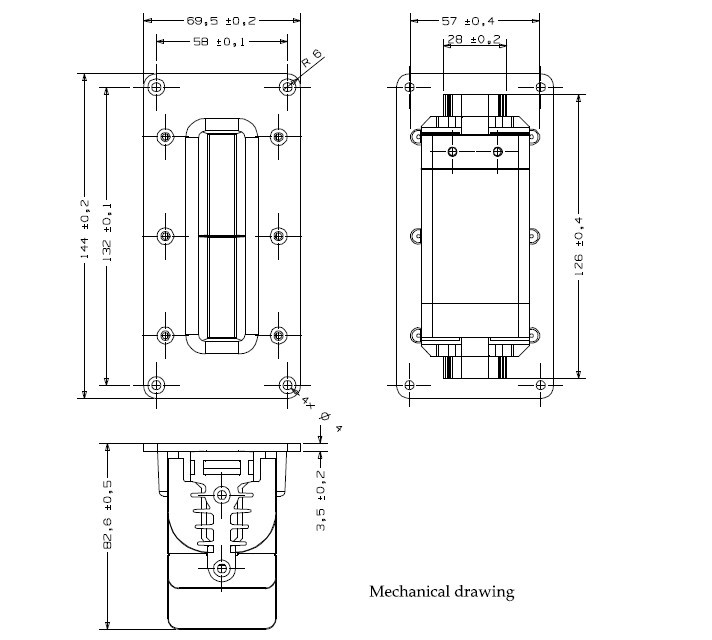

144mm x 69.5 mm rectangular faceplate
Fountek’s 3rd generation ribbon driver technology
12mm width enforced sandwich ribbon diaphragm
Higher power handling, lower distortion, very fast transition
Strong Neodymium magnet
Built-in impedance convertor

Sensitivity	95dB/1m/2.83v
Power handling	30W nominal,50W max
Frequency range	1,200-40,000Hz
Nominal impedance	8 ohm
DCR	0.02 ohm
Ribbon dimension	12mmX80mmX0.015mm
Effective ribbon area	960 square millimeter
Ribbon weight	36 milligram
Gap flux	0.4 Telsa average
Gap height	13 millimeter
recommend cut frequency	2,000Hz with 2-order
Net.Weight	1015 gram
