LCY-130 Ribbon Tweeter 130 mm Round

LCY -130 Split Ribbon Tweeter

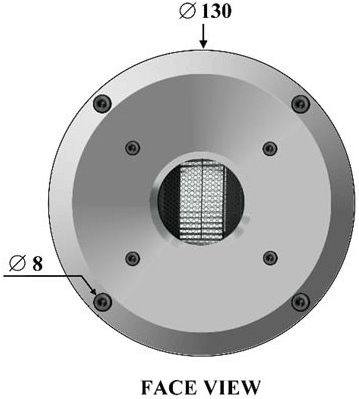

• 130mm diamter flange

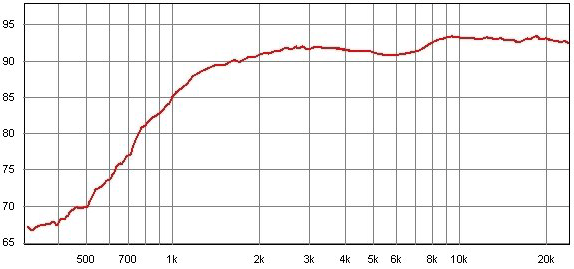

• Frequency Response : 1.8KHz-60KHz
• Sensitivity : 92dB / 2.83V / 1M

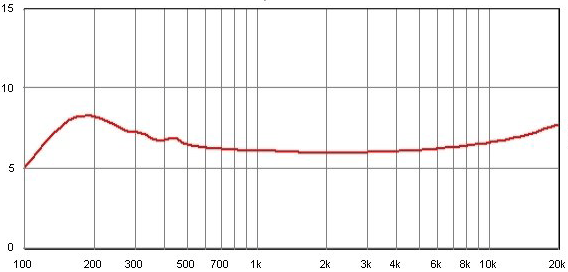

• Nominal Impedance : 8Ω
• Magnet Type: Neodymium magnet
• Ribbon Effective Area : 740mm²
• Ribbon Thickness : 0.006mm
• Nominal Power Handling : 150W
• Weight : 1.15Kg

The LCY Ribbon tweeter is based on technology well proven by audio pioneers for over half a century but is innovatively designed to satisfy the sophisticated demands of the digital era.

The LCY has a unique design employing twin ribbons of half the length of conventional ribbons in order to control vertical plane dispersion. Thus it reproduces both vertically and horizontally as effectively as voice-coil operated dome tweeters but with the accuracy, elegance and refined timbres of ribbon-tweeter technology. Magnetic flux density is enhanced by the use of our own neodymium magnet system and a sophisticated transformer with parallel multi-wiring OFC has been adopted for superior frequency and power handling and optimal size.
