LCY-K100 Ribbon Super Tweeter
Click to enlarge
|
 Price: $215.00 (each)
Product ID : lcy-k100
Manufacturer: LCY
Weight: 1.93 lbs
Purchase |
Description
LCY-K100 Ribbon Super Tweeter
The LCY Ribbon tweeter is based on technology well proven by audio pioneers for over half a century but is innovatively designed to satisfy the sophisticated demands of the digital era.
The LCY has a unique design employing twin ribbons of half the length of conventional ribbons in order to control vertical plane dispersion. Thus it reproduces both vertically and horizontally as effectively as voice-coil operated dome tweeters but with the accuracy, elegance and refined timbres of ribbon-tweeter technology. Magnetic flux density is enhanced by the use of our own neodymium magnet system and a sophisticated transformer with parallel multi-wiring OFC has been adopted for superior frequency and power handling and optimal size.

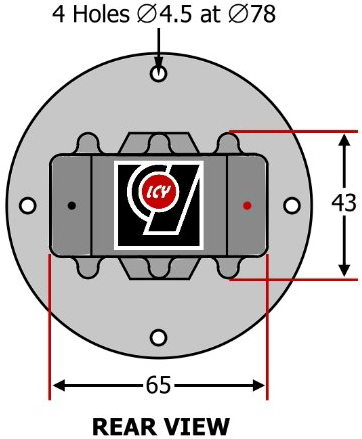

- Flange diameter: 90mm
- Cut out: 65mm x 43mm -or- 70mm diameter
- Depth: 67mm
- Flange thickness: 5mm

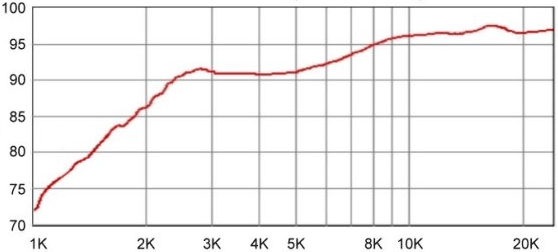

- Frequency Response: 7KHz-100KHz
- Sensitivity : 95dB / 2.83V / 1M
- Nominal Impedance : 8Ω
- Magnet Type: Neodymium magnet
- Ribbon Effective Area: 375mm2
- Ribbon Length : 25mm
- Ribbon Thickness : 0.006mm
- Nominal Power Handling : 200W(7KHz/-18dB/oct), 300W(10KHz/-18dB/oct)
