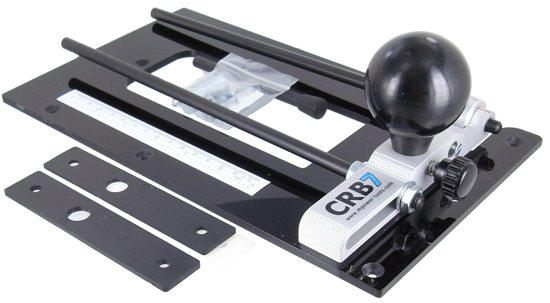

M.Power CRB7 Router Jig

M.Power CRB7 Router Jig

• Seven core functions
• Increases overall routing stability
• Improves accuracy and quality of finish of every routing pass
• Quick change, no screws or drivers required, it literally slides on and off the router reducing set up time to almost nothing.

Seven Core Functions

• Adjustable Dado-ing or Trenching with a clamp guide: Set the clamp guide once and adjust the position of the router via the CRB7's Micro Adjuster. CRB increases router to clamp guide surface contact area and reduces clamp guide set up time: eliminating it in some cases.
• Adjustable Mortising: a unique feature that allows "Centred and Off Centred" mortises plus decide on and precisely control the actual width of the mortise
• Anti Tilt Support: Another first, variable height triangulated stabilization: Usually most of the router base remains unsupported when edge routing: CRB Anti tilt leg eliminates router tilt especially important when routing work-pieces with a high aspect ratio.
• Compass: Route  precision circles and holes that are actually smaller than the base of the router:  CRB can route  circles  and wheels from: ¾”> 8.¾” radius (19> 225mm) that’s diameters ranging 1.½”> 17.½” to (38> 450mm) with a ¼” 6mm straight router cutter.
• Off Set Base Plate: Increases overall router stability, reducing errors when edge moulding by more than doubling the surface contact area between router and workpiece. CRB also moves the pivot hand guiding the router toward the centre of the panel smoothing out the router pass action, reducing the chance of burn marks.
• Adjustable false panel rebate copier: The CRB provides a simple and exceptionally quick way of accurately repeating a moulded dado for production batch quality faux or false panelling.
• Flush Trim Lipping Kit: With virtually no set up time, quick fit the Trim Jig riser pad to accurately machine trim hard wood and iron on lipping flush with the core board in seconds. (Requires separate purchase of the Flush Trim Lipping Kit.)

Features

• One Time Set Up: Set up the CRB7 to fit your favourite router just once with a set of 4 x injection moulded shims and 4 sets of screws: job done
• Quick Change: Unlike most router jigs, CRB can be fitted/removed in less than 10 seconds with no fiddly screws or cantering jigs required.
• Micro Adjuster: High precision router cutter position can be attained and repeated using the knurled and indexed micro adjuster.
• 2" Bakelite Ball Handle: Ergonomic design, comfortable to the touch, allowing for easy hours of consecutive use.
• Indexed Rule: The self adhesive Imperial/Metric rule is another feature to ensure fast easy readings of router cutter position.
• 2 Section Anti Tilt Leg: Supports and stabilizes the router, when routing materials varying in thickness  from 3/8”> 3.1/4”: 10mm > 82mm. The 2 leg sections accommodate combinations  of router position and workpiece thickness.
• Magnetic Pivot Pin Storage: A no loose home for this essential component, safe and easily accessible when ever needed.
• Professional Grade Build: Made in England CRB is manufactured to the highest standards including a hard anodized machined solid aluminium bridge. Laser cut 5mm thick acrylic baseplate and precision turned steel and brass components.
• 2 Year Guarantee: Our extended guarantee is testimony to the build quality of the CRB and ensures our customers can buy in confidence.

US router compatibility and adjustment chart: http://www.madisound.com/loudspeaker_specifications/CRB-compatibility-guide.pdf

Accesories: Flush Trim Lipping Kit
