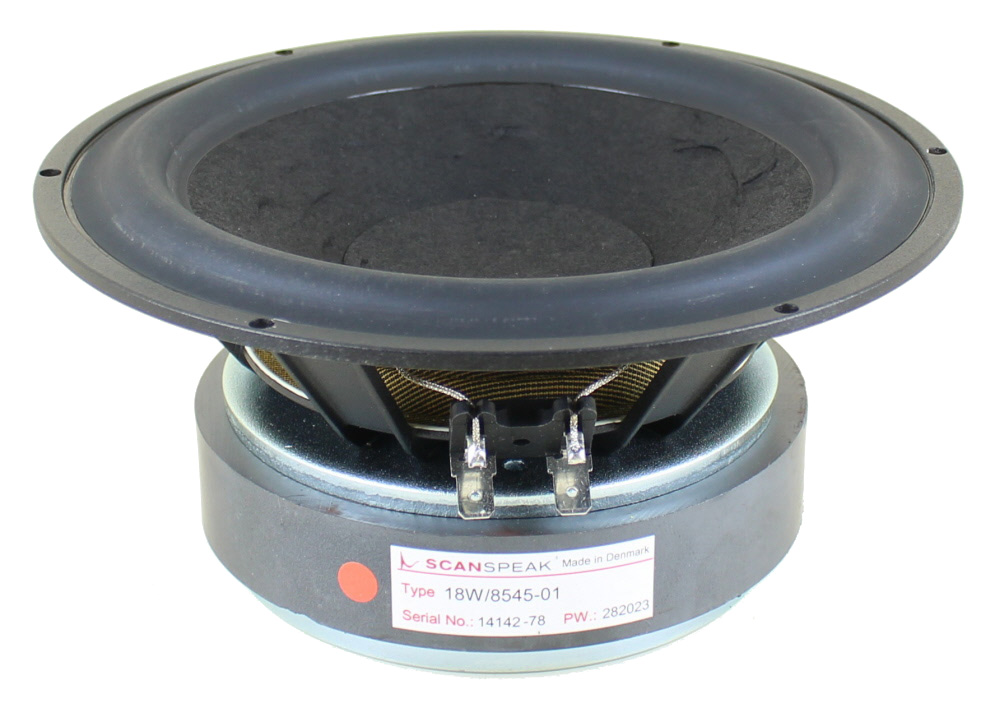

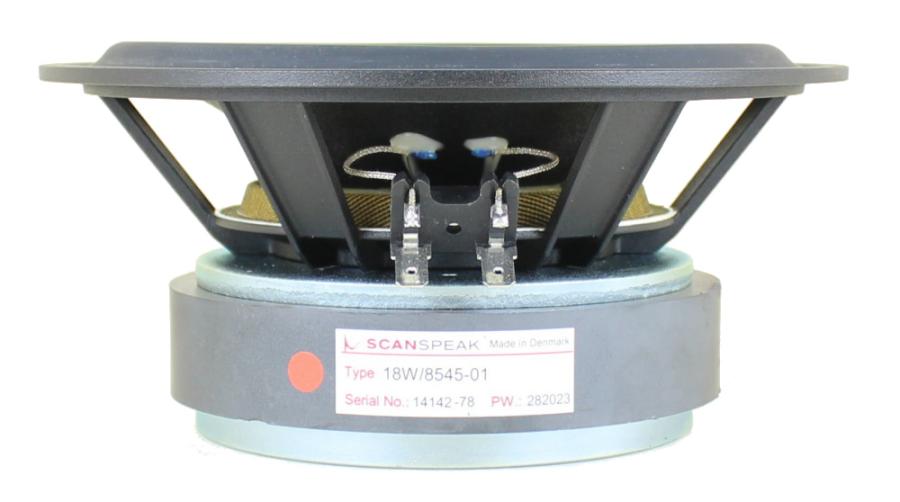

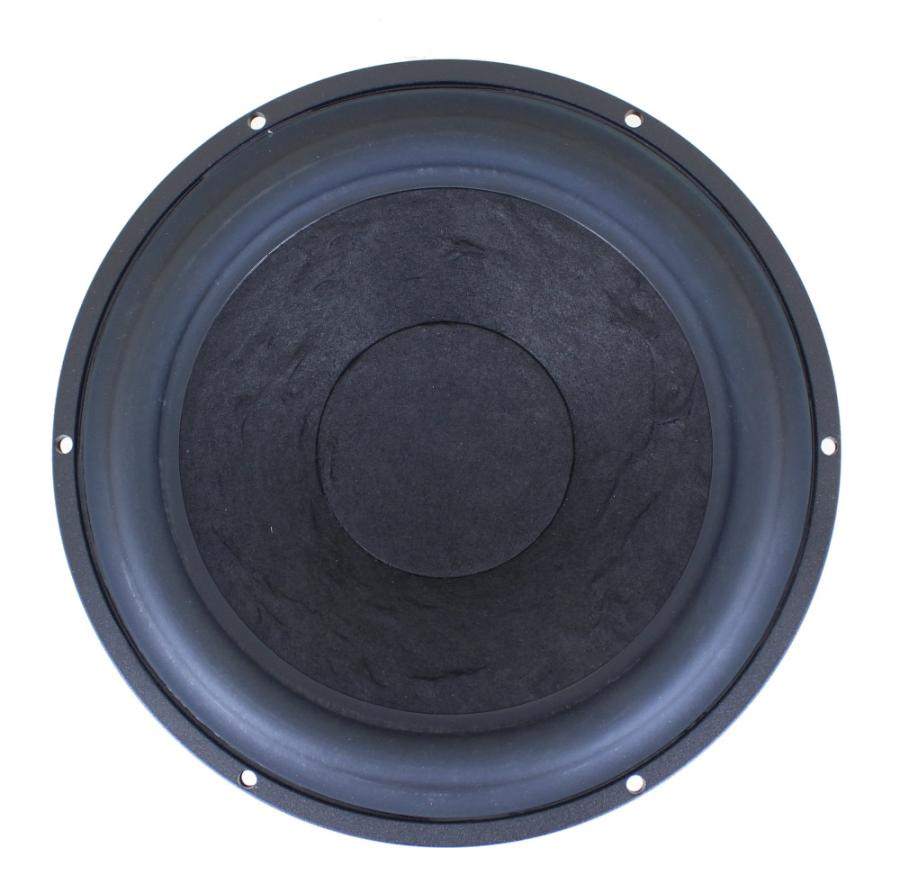

ScanSpeak Classic 18W/8545-01 New 7" Mid Woofer Paper Cone
Overview
ScanSpeak Classic 18W/8545-01 7" Paper Cone Mid Woofer - "New Version"
Spec sheet: ScanSpeak 18W/8545-01 Woofer
This unit is an improved version of the highly praised 18W/8545-00 midwoofer, where a new aluminum chassis, an updated cone and a new spider as well as a few other details are introduced, these updates improves mechanical stability and sound performance. High-quality magnet system design with patented Symmetric Drive (SD-1) continues to be key feature.
- Patented Symmetrical Drive Motor Design
- 42mm Voice Coil w. Alu foil
- Low Damping SBR Rubber Surround
- Coated Air Dried Paper/Carbon Fibre Cone
- Low-Loss linear suspension
- Aluminium Chassis
Also written as: 18W/8545-01,18W 8545 01, 18W854501,18W-8545-01

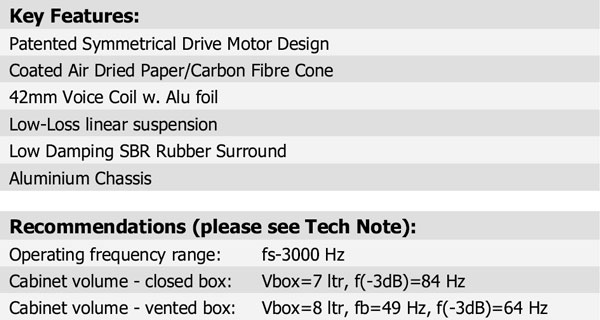

Box suggestions:
0.2 cubic foot sealed with 20% filling for an F3 of 94Hz, F6 of 69Hz
0.35 cubic foot with 2" diameter vent by 7" long for an F3 of 56Hz
0.55 cubic foot with 2" diameter vent by 5.9" long for an F3 of 47Hz
0.65 cubic foot with 2" diameter vent by 5" long for an F3 of 44Hz
