Zaph|Audio ZRT 2-Way Revelator Tower Pair

Manufacturer: Zaph Audio

6 Customer Review(s)

Product ID: zrt

$1,389.00

Volume Pricing

10 - 10,000
10% off

Add to wish list E-mail to a friend

Overview

ZRT 2-Way, Zaph|Audio Revelator Tower - Parts Only - Pair

ZRT 2-Way, Zaph|Audio Revelator Tower - Parts Only - Pair

Price shown is for a PAIR

Madisound and Zaph Audio are pleased to bring you the Zaph Revelator Tower. The ZRT is raising the bar for easy to build high-end speaker kits. Once again, we would like to thank John Krutke for his design work and overall contribution to DIY speaker building. Full documentation of this design can be found on Zaph Audio.

The ZRT is an extremely versatile premium speaker kit utilizing Scan-Speak Revelator drivers. The 2-Way configuration is designed for ported use in the Madisound MD38T tower cabinet. In addition to a ported MD38T, the ZRT 2-Way is also suitable for a sealed alignment in the Madisound MD20 cabinet (these cabinets are no longer available, sorry).

The tweeter used is the Scan-Speak “AirCirc” D3004/6600. This is the latest and most advanced release from the famous Revelator tweeter line. The mid/bass driver is the Scan-Speak 18W/8531G. This 7” slit paper cone driver is widely considered one of the best mid/bass units in existence. The combination of these drivers and Zaph’s design expertise has yielded a world-class speaker system.

Two crossover options are available for the ZRT 2-Way Kit. Both options use Mundorf metal oxide resistors for the tweeter, air core inductors in parallel tweeter circuits and a XPP polypropylene capacitor in the parallel woofer circuit. The woofer and tweeter crossovers come assembled, with each mounted on their own Matrix and 149B circuit boards. This allows for bi-amp/bi-wiring if desired, and flexibility in cabinet placement.

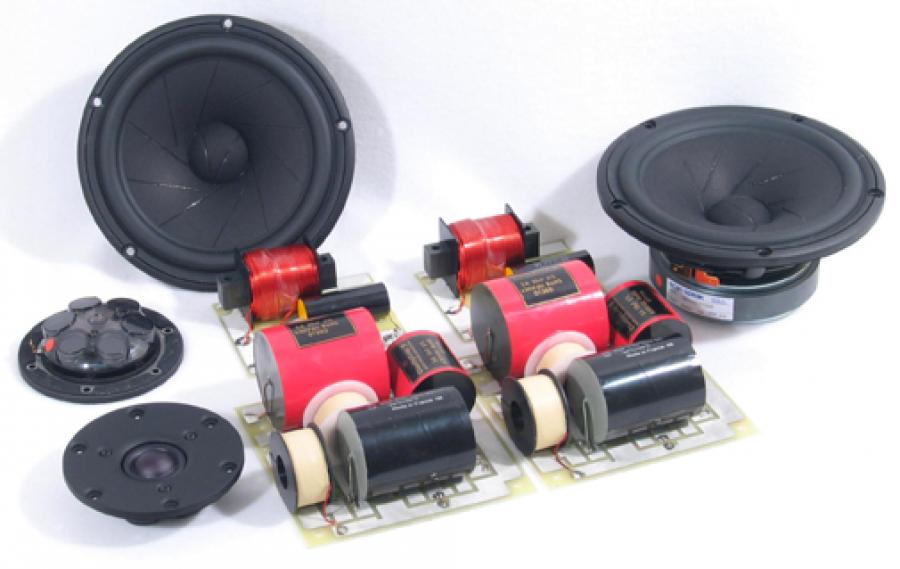

The standard crossover uses: ClarityCap CSA capacitors in series tweeter circuit, Solen Fast Cap in parallel tweeter circuit, and Solen Perfect Lay 14awg inductor in series woofer circuit. Note: Picture shows Sledgehammer Steel laminate inductor which is currently unavailable.
The upgraded crossover uses: ClarityCap CSA capacitors in series tweeter circuit, Solen Fast Cap in parallel tweeter circuit, and Goertz Copper Foil 14 AWG or 12 AWG inductor in the series woofer circuit.

[Please note the older-style SA capacitors are depicted in the picture]

If there is a specific combination of premium parts (Madisound stock only) that you would like to use for this crossover, please contact us by email with that parts list for a quote. The crossover parts we use are a good choice in this application and provide excellent results, but we will of course accomodate to your own taste. A ZRT 2.5 Way version is also available with an additional 18W/8531G mid/bass driver. This configuration can be done in a sealed MD38T tower cabinet, or ported in your own larger cabinet. See Zaph Audio for more details.

The ZRT 2-Way Kit includes:

(2) D3004/6600 “AirCirc” Tweeters
(2) 18W/8531G 7” Revelator Woofers
(2) Assembled Crossovers - Standard

Optional ZRT 2-Way Accessories Package includes:

(2) TD-CUPS Input Cups – 2 per pair
High quality gold plated brass binding posts
Accepts banana plugs, spades or raw wire
Bi-wire/Bi-amp capable
(2) 2FLARE 2” Precision PortsSee vented tuning options - both flares with no center piece is recommended
Promotes optimal air flow
Reduces/eliminates port noise and chuffing
(16') Supra Classic 1.6 Internal Wire – 15awg Tin Plated OFC Copper
(8') Foam gasket tape for air tight seal of drivers
(1) Goop for gluing foam sheets and ports
(16) Quick Connects - for easy connection of speaker wire to drivers & input cup tabs
Black Ox/Wax Mounting Hardware
(22) Screw Size 8, 1" Phillips Pan Head, Black Ox & Wax Finish
(8) Screw Size 6, 3/4" Phillips Oval Head, Black Ox & Wax
Internal Dampening Materials
(2) Open cell acoustic Foam Sheet 27" x 42" x 5/8"
(2.5#) Acousta-Stuff complex fiber fill

You may select this accessories package along with kit purchase, or buy your parts individually. Kit discount only applies to this accessories package, not individual parts purchases. Kit pricing reflects a 10% discount to all drivers and accessories.

The Zaph|Audio ZRT 2-Way Revelator Tower represents audiophile-grade engineering excellence. This component package includes carefully selected drivers and crossover parts that deliver reference-level performance when assembled according to the renowned Zaph|Audio specifications.
