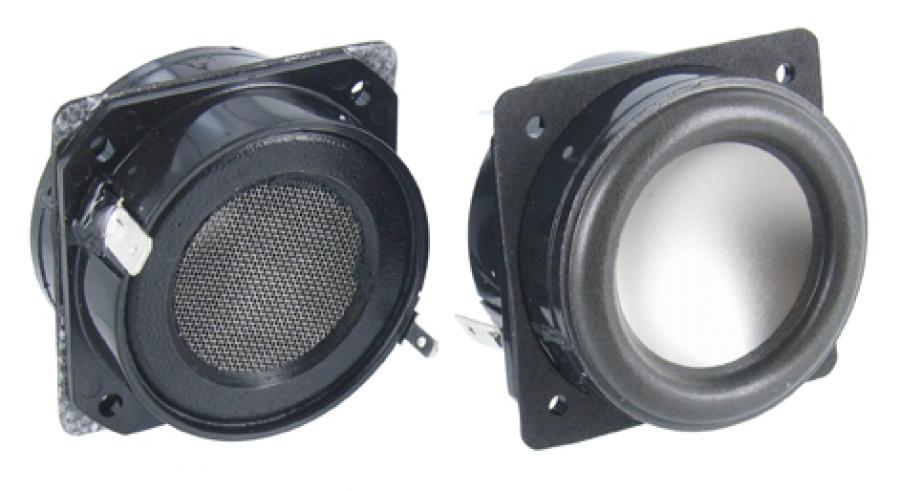

Aurasound NSW2-326-8AT 2" Full Range

Aurasound NSW2-326-8AT 2" Full Range
Click to enlarge

More images

Price: $19.95

Purchase

  • Buy 10 - 10,000 and get an additional 10 % off
Manufacturer: Aurasound
Product ID : nsw2-326-8at
Weight: 0.22 lbs
Manufacturer: Aurasound
E-mail to a friend

Description

Aurasound 2" Full Range "Whisper"

Spec sheet: Aurasound NSW2-326-8AT 2" Full Range

The NSW2-326-8AT version comes with tabs for quick connects or soldering. Specs for the NSW2-326-8AT and NSW2-326-8A-120 are the same.

The NSW2's have a large voice coil and long excursion for such a small speaker. They can play loudly and perform better than any other speaker of this size.


Features:

  • Frequency 250 to 15kHz
  • Titanium dome
  • Underhung voice coil
  • NRT neodymium magnet system
  • Inherently shielded
  • Foam surround
  • Frame: 49mm square
  • Overall Depth: 29.4mm
  • Larger 5.25mm (0.205") terminal is positive
  • Smaller 2.8mm (0.112") terminal is negative





NOTE: Larger tab is the +, smaller tab is the -
Tabs are not shown in the mechanical drawing

Comment on Facebook

Product Reviews

Login or Register to write a review.
Reviewed by Seren2
09/27/2012 - 04:31:18 PM
NSW2-326-8AT
'I bought these from Madisound about 2 years ago as I was creating a 3 way front stage for my daily driver car. I matched them with a 1" tweeter and an 8" midbass driver on 300 watts rms power. They sound AWESOME!! Though only rated at 15 watts, they deliver stunning sound and incredible imaging for a speaker not designed for car use. In truth adding a tweeter was not necessary as they are capable of playing very high, but I wanted them for midrange and they worked out well. 2 yrs later in the front A-pillars of my car in the Hot San Diego sun and no signs of slowing down. I beat them from Mozart to Metallica. If they fail, ever I hope Madisound still carries them' Review by RIVER MACOMBER. Posted by Madisound.
