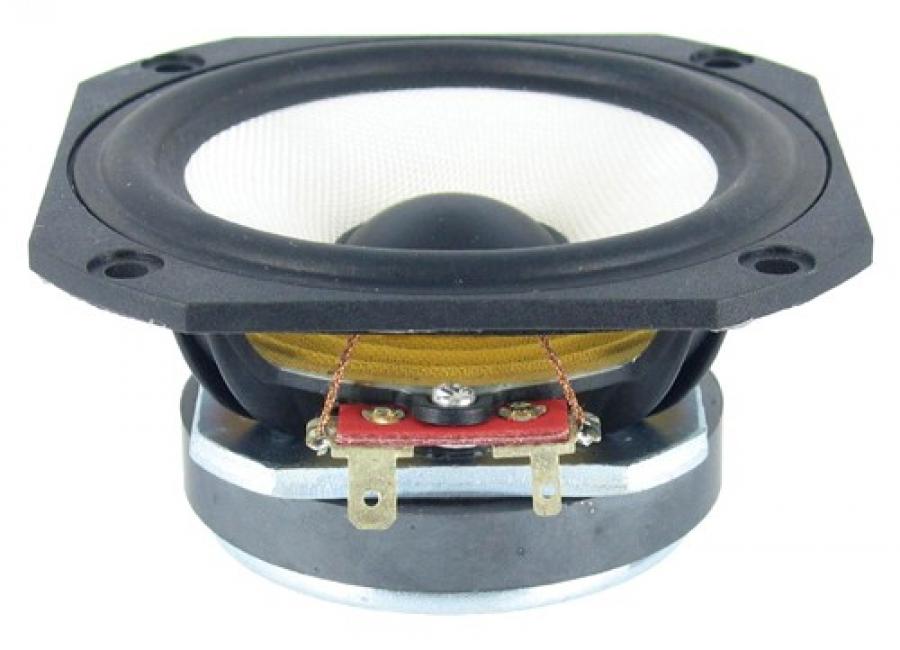

Peerless TG9FD10-08 3.5" Fiberglass Full Range 8 ohm

Peerless TG9FD10-08 3.5" Fiberglass Full Range 8 ohm
Click to enlarge
Price: $16.08

Purchase

  • Buy 10 - 10,000 and get an additional 10 % off
Manufacturer: Peerless by Tymphany
Product ID : TG9FD10-08
Weight: 0.80 lbs
Manufacturer: Peerless by Tymphany
E-mail to a friend

Description

Peerless TG9FD10-08 3.5" White Fiberglass Cone Full Range in 8 ohm

  • NRSC glass fiber cone
  • Copper cap on pole piece
  • Polymer chassis

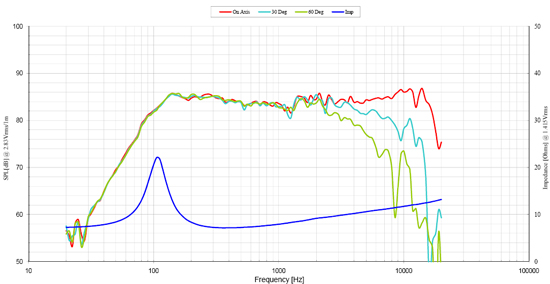

  • Frequency range 100Hz to 10kHz

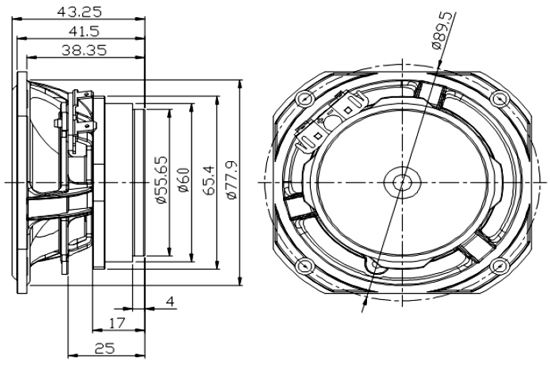

  • Flange 84mm square (3.3")
  • Cutout 77.9mm (3.1")
  • Depth 38.4mm (1.5")
  • Flange thickness 3.2mm

This TG family 3.5 inch 8 ohm full-range driver,with shielded ferrite magnet, glass fiber cone and rubber surround, and plastic basket, is designed to be a costeffective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with television and other compact applications in mind.

Try using this speaker in a small sealed box of 1 to 2 liters.
