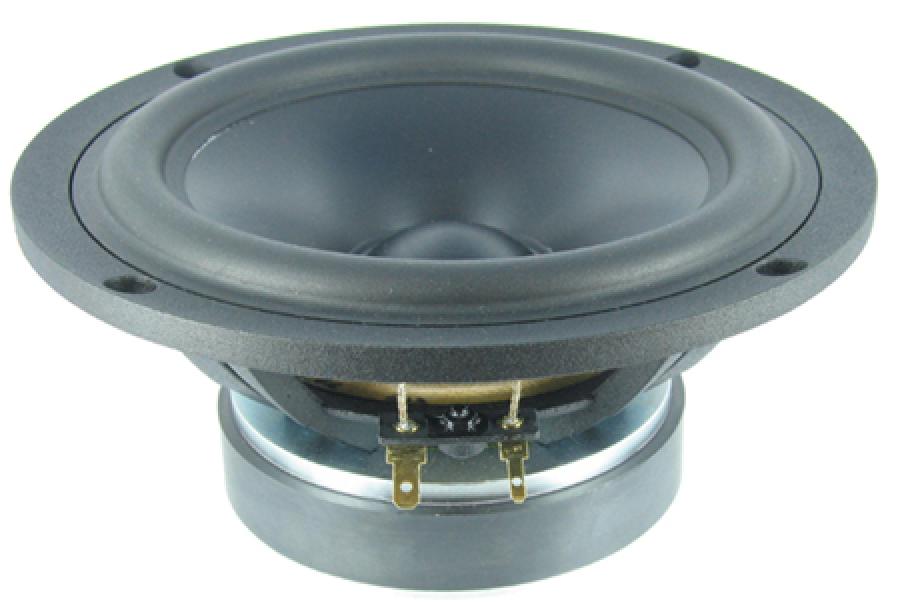

SB Acoustics SB17NRXC35-4, 6" Woofer
Click to enlarge
Price: $57.85


  • Buy 10 - 10,000 and get an additional 10 % off
Manufacturer: SB Acoustics
Product ID : sb17nrxc35-4
Weight: 5.20 lbs
Manufacturer: SB Acoustics
E-mail to a friend | Add To Wish List


SB Acoustics SB17NRXC35-4 6" Woofer

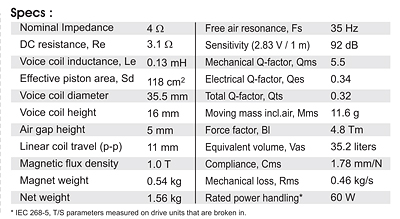

Spec sheet: SB17NRXC35-4 PDF

  • Non-resonant coated Papyrus fiber cone
  • Low damping SBR surround
  • Open structure cast frame for reduced reflections
  • Copper cap on pole piece
  • Raised spider
  • 35mm Voice Coil diameter
  • Frequency range 38Hz to 3.5kHz
  • Gasket

Advanced Features:

  • Vented cast aluminium chassis for optimum strength and low compression
  • Proprietary cone material with natural fibers made in-house
  • Soft low damping rubber surround for improved transient response
  • Non-conducting fiberglass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression



Suggested Alignments:

  • Sealed box of 0.25 cubic feet for and F3 of 85Hz
  • Vented box of 0.5 cubic feet with a 2" diameter vent by6" long for an F3 of 55Hz.

Comment on Facebook

Product Reviews

Login or Register to write a review.
Reviewed by
03/12/2017 - 05:05:49 PM
SB Acoustics re-label
I may be wrong about this, but I think that NVX (car audio brand of high repute sold by a California brick-and-mortar/internet retailer that rhymes with chronic pentatonix) uses this SB woofer as their high-end component offering. I installed 4 of these in a 1st gen Honda Ridgeline (factory door locations) with 1" spacers. I am running two pairs in parallel (2 ohm load) on channels 3 and 4 of a 5 channel soundstream amp, for 125 watts per pair. They are pretty much maxed out power-wise, so the 60w rms rating is not a conservative number. Using my Alpine head unit for dsp duties, I am crossing these woofers bandpassed between 125hz/12db and 2000hz/6db. I can feel the midbass. They will most assuredly play lower but at high volume I experienced "farting bass" and would expect to, as the qts shows a suspension preference for ported enclosures, not car doors. As for the top end, at low volume these drivers will run up to 4000hz and higher, having a very crisp, revealing detail and warm upper mid quality (breakup mode). This quickly turns to harsh, shouty upper mid performance when used in parallel multiples at high volume. NVX sells these with a passive crossover point of 1500hz but I find most tweeters one can fit in a car will not play this low, and you end up with a hole in the mids. 2000hz is as high as I can go before the shoutiness and breakup gets abrasive and messy. I have used easier-to-tweak drivers in vehicles before, but none had the revealing, flat response, detail, and "liveliness" of these. Pretty nice, but I have a feeling I'd like the poly cone version better for autosound.
Reviewed by Seren2
09/27/2012 - 05:02:10 PM
'I have 2 of these SB Acoustics SB17NRXC35-4 wired in series for the mid bass in a 2-way center channel speaker. The cabinet was an old dbx dual 6.5" subwoofer setup that I converted. The AVR is set to high pass at 100hz and the 12db/octave crossover is at 2000hz. There is no zobel or notch filter or any type of compensation circuit used. The inside cabinet walls have damping material attached with adhesive, there is no polyfill, the cabinet is sealed. I am very impressed with quality of sound these have in the 100-2000 Hz range. The transition is smooth to the dual Vifa 3/4" tweeters, which are wired in series with reverse polarity. The main reason for this purchase was to get clarity in the vocals for Dolby digital surround sound and these deliver. There is no upper midrange harshness. This also means that they sound great for music, played in 5.1 channel stereo. Having no test equipment except my ears, these sound very good in the room environment. The center channel is placed above a Samsung 40" LCD and powered by a Denon AVR-990. This puts the position of these speakers slightly above ear level when seated, but there seems to be no off axis dips or peaks when moving left to right across the center channel for the main listening positions. This is the first SB Acoustics product I have used and am impressed with the build quality and the sound quality. A very easy speaker to listen for extended periods of time this driver makes for an exceptional center channel. With the pair wired in series, the Denon has no problem in delivering clean power at loud levels. I have not used them in full range, but from 100-2000 Hz they work. Immediately after installation, I ran a program that cycles sound tones and set it at 80-4500 Hz and let it run for 2 hours at a low volume level. It would begin the cycle at 80 Hz and end at 4500 Hz, the cycle lasts 30 seconds. It ran many cycles for its "burn-in", and the response was smooth throughout the range. You could definitely tell when the speaker reached the crossover points. So that is why I did not install any "unnecessary" filters; response was smooth and crossover points were accurate. I am sure that delicate test instruments could find flaws, but for "ear tests" in a normal room environment these speakers fit the job requirements very well, and cost under $100 each. Thank You Madisound for having these available, your packing was fine; the speakers arrived in good condition.' Review by Robert Friedrichsen. Posted by Madisound.
