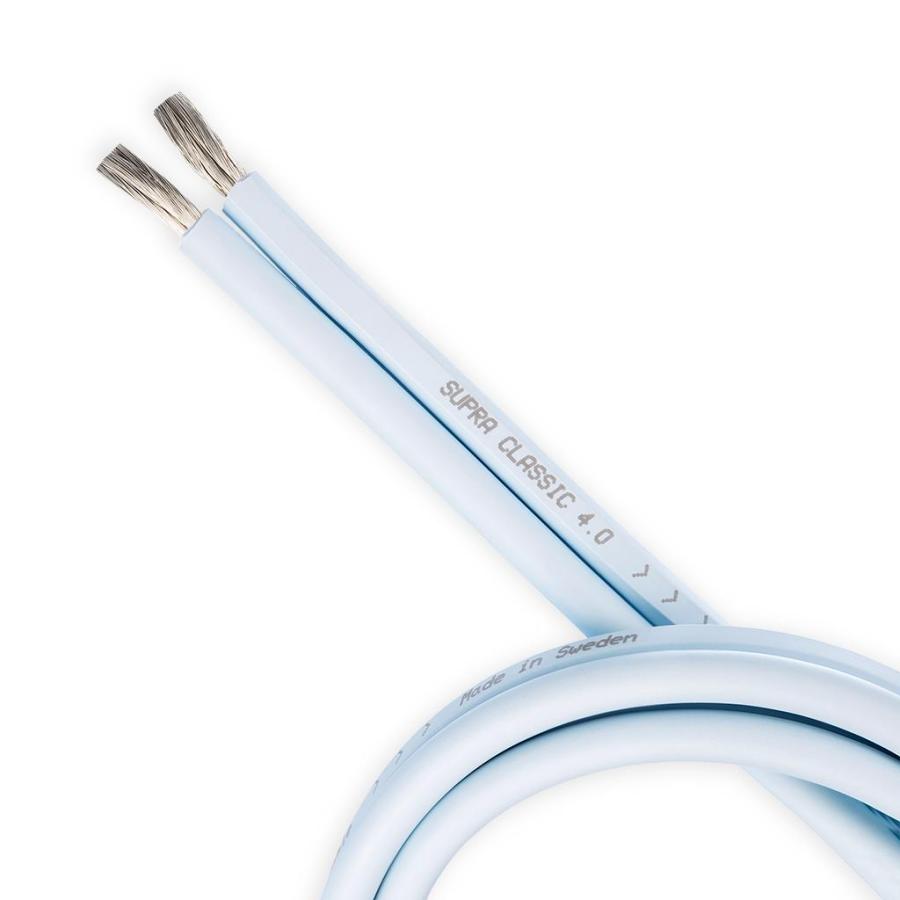

Supra Classic 4.0 Speaker Cable sold by the running foot
3.28 feet = 1 meter 2x4.0 mm² (11AWG)Application examples: High power systems, or longer lengths in low/medium power systems. The SUPRA Classic series comprises highly flexible cables containing tin plated multi-stranded OFC copper of purity degree 5N, which means >99.999% pure, i.e. purer than five nines. The insulation is a special ion stable PVC which minimises corrosion of the sonically benign tin surface. The tin contributes to a better sound quality by minimising the skin-effect and making less current jumps between the wire surfaces.
Technical Info
Mechanical Specifications
| Crossection area |
4.0 / 11 |
mm2 / AWG |
| Number of conductors |
2 |
pieces |
| Number of strands per conductor |
511 |
pieces |
| Strand diameter |
0.10 |
mm |
| Conductor material |
Tin plated oxygen free Copper |
|
| Jacket |
Heat and age resitant PVC |
|
| Yttermått |
4.8 x 9.6 |
mm |
| Weight |
108 |
g/m |
Electrical performance
| Resistance |
4.3 |
Ohm/km |
| Inductance |
0.55 |
µH/m |
