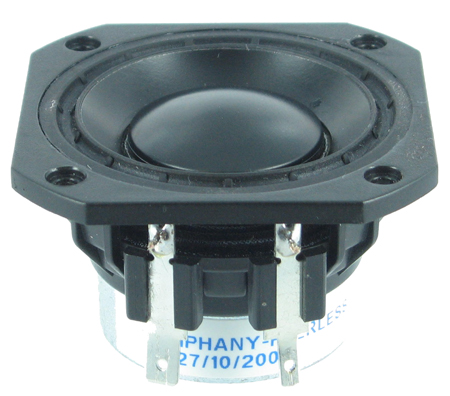

Peerless 830970, 2" Full Range 4 ohm

Peerless 830970 2" Full Range



This 2 inch 4 ohm member of the PLS family sets a high standard, for compact full range drivers intended for applications such as television soundbars and compact music systems. Design features in this family include a damped plastic basket with venting under the spider to aid cooling of the motor, a neodymium magnet motor with copper cap to lower coil inductance, providing low distortion at low frequencies and extended high frequency response. A black anodized aluminium cone is employed on the driver, along with a black anodized aluminium dust cap coupled directly to the voice coil. Additionally, the cones come equipped with special-designed large roll rubber surrounds, which allow for a dynamic linear response to high excursion input signals.



Features include:



• A Neodymium motor structure and double-venting system helps keep dynamic range intact so the transducer can handle more power and dissipate excess heat efficiently.


• An anodized aluminum dome provides superior sound dispersion and off-axis response.


• A semi-progressive surround reduces distortion, especially at high output through long excursion.


• The drivers’ direct connected dome dust cap (connected to the magnet system voice coil) improves dispersion at high frequencies, providing superior sound on the high notes.


• The inserted copper cap on the pole piece ensures control of the system impedance, thereby extending the upper frequency range.
