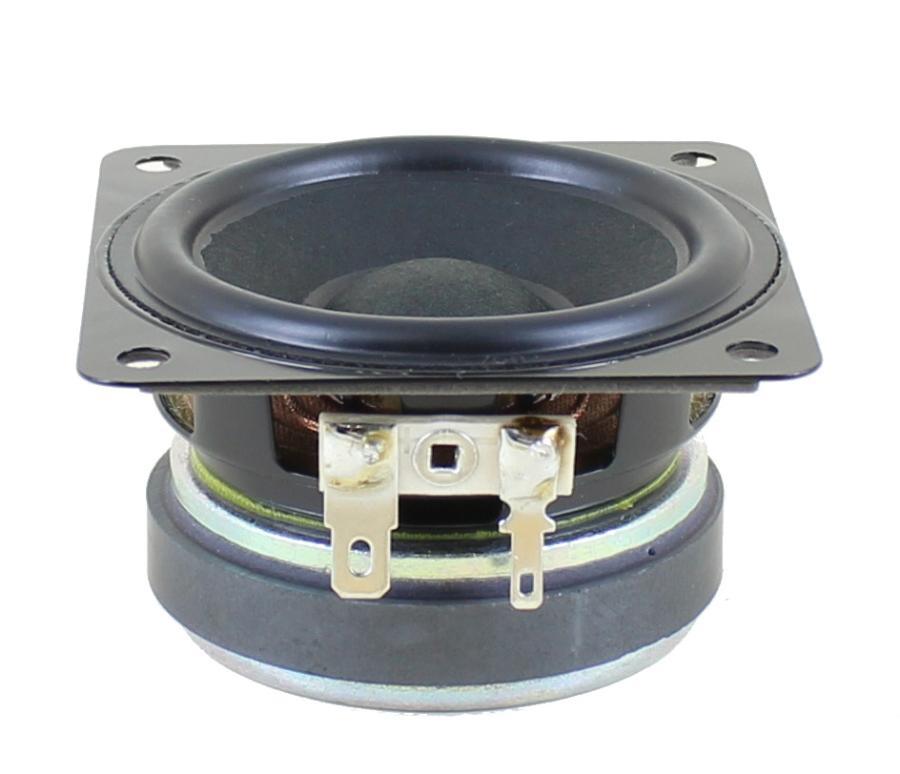

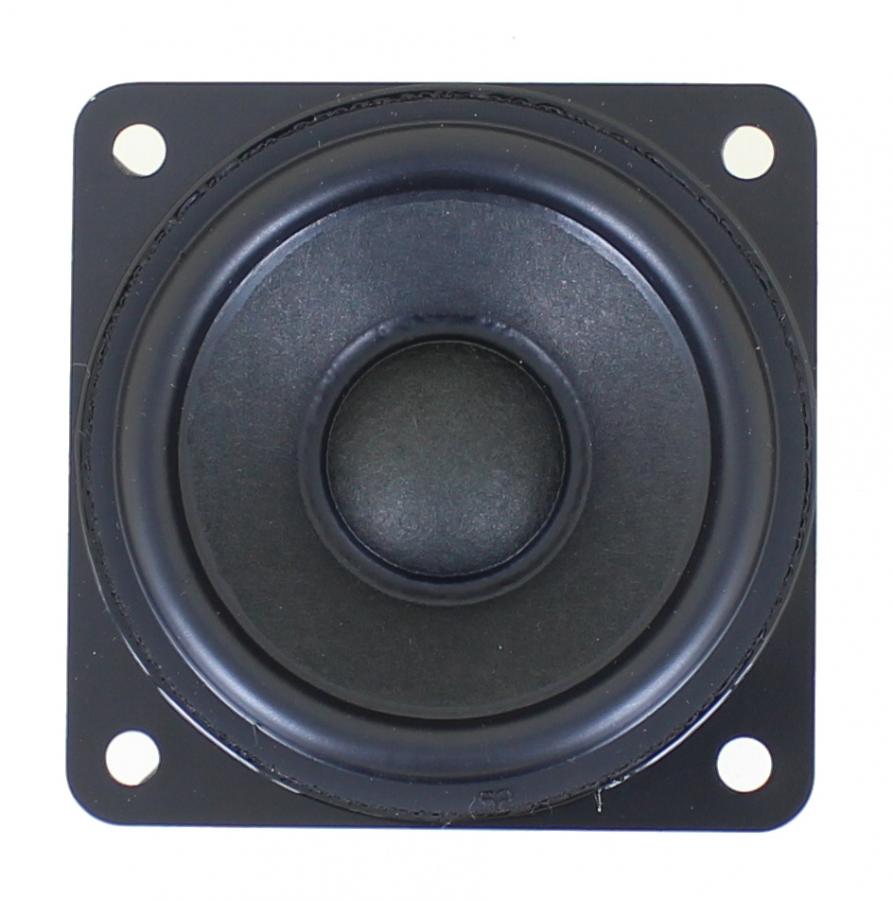

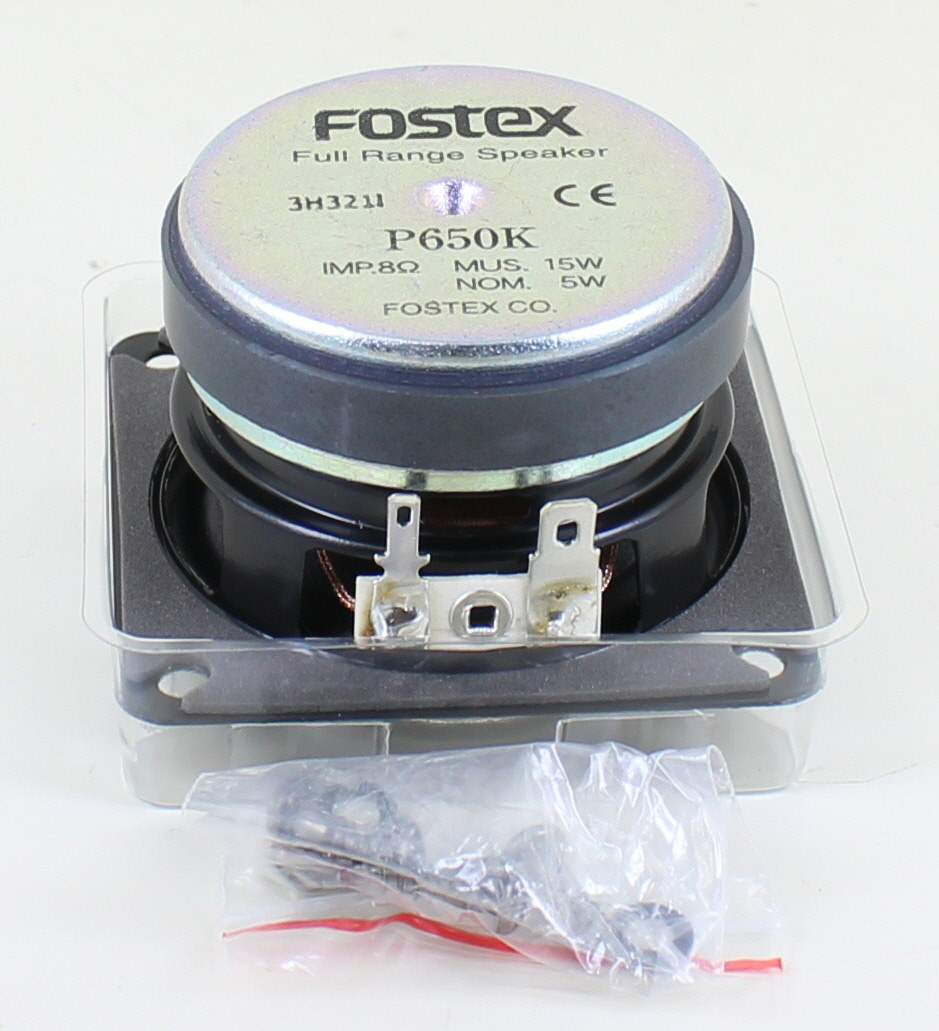

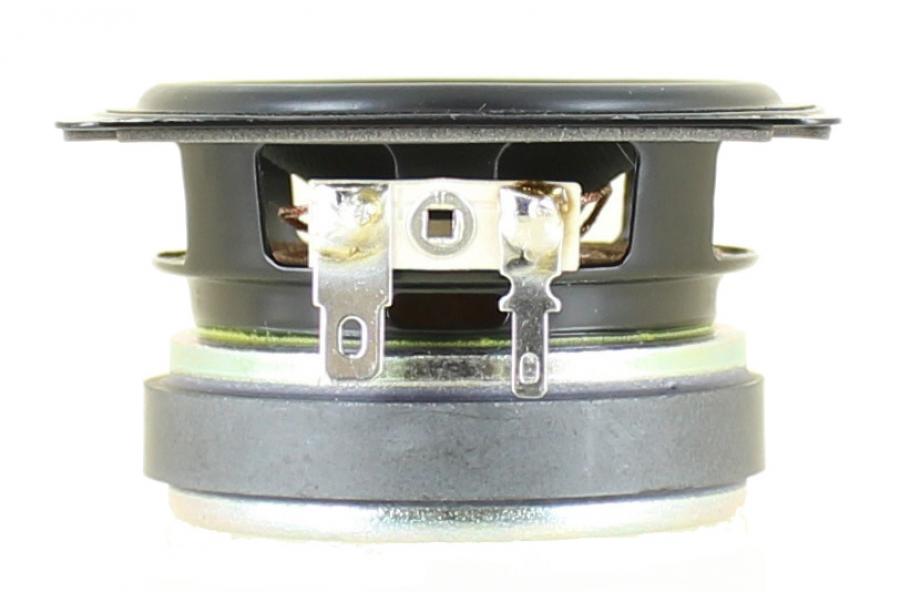

The P650K is a suitable full range speaker driver especially for first time craft users. A light-weight cone paper and a high-loss rubber surrounding realize a bright and clear mid-to-high range and reasonably damped low range reproduction. You can enjoy an excellent stereo image and sound field achieved by the small-diameter speaker unit.
Banana pulp blended light-weight cone paper / High-loss foam rubber surround Blending a banana pulp with two wooden pulps holding different physicality realizes a sufficient stiffness and high-loss. A high-loss foamed surrounding with an up-roll shape is employed.
Mechanical 2-way center cap The same material as the cone paper is employed on the center cap for improving the sound unification. A mechanical 2-way structure which directly connects the center cap with the voice coil bobbin extends a high range sound reproduction further.
For the easy start, we recommend a combination with a P650-E enclosure kit. The P650-E is designed for the P650K that can easily achieve the enticing full range speaker system. The P650-E comes with the speaker terminals, internal wirings and sound absorbent pre-fitted and acoustically tuned. Please use the P650-E taking advantage of easy mount.
To enhance the low frequency more than P650-E, we recommend the use of P1000-E. As the internal volume is larger, you can feel low frequency more. In this case, since P650K cannot be mounted directly, prepare the baffle board as shown in the drawing on the right. The board material is MDF with t9 thickness, the baffle hole is 60mm diameter. As the screw position is made as φ116, you can easily replace the speaker driver with P1000K.
