Fostex T90A Top Mount Horn Super Tweeter

Fostex T90A Top Mount Horn Super Tweeter
The Fostex T90A horn super tweeter is designed to sit on top of your existing speaker. The tweeter is 106dB and can be used from 5,000Hz to 35,000Hz. The tweeter features an Alnico magnet. The deepness of this tweeter horn provides a brighter more detailed sound than the shallow throat horns. We recommend using a capacitor as a crossover in the plus line to the tweeter, something from 0.47mfd to 1.5mfd. The smaller the capacitor value the higher it will crossover and the quieter the tweeter becomes. If the tweeter is still too bright after trying different capacitors, you can add a 1 ohm resistor in series with the capacitor and try the different capacitors again.

• 8 ohm impedance
• Frequency response from 5kHz to 35kHz
• 106dB sensitivity at 1w/1m (3.3ft)

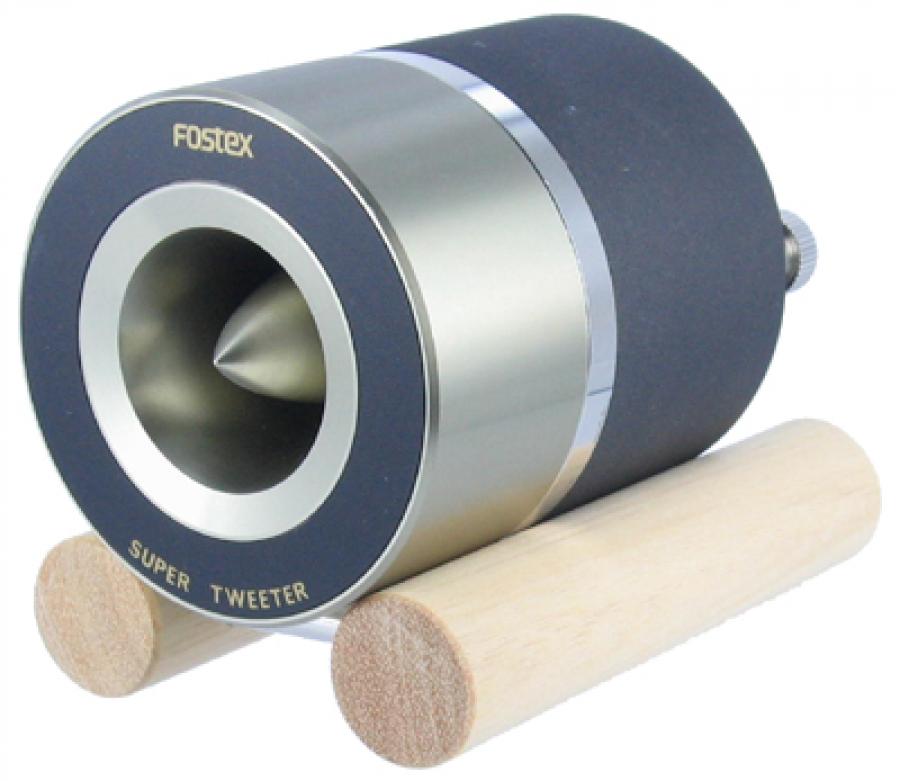

• TOP MOUNT - wood stand included as pictured
• Flange 60 mm
• Depth 74.1/ 87.8 mm
• Znom 8 ohm
• fs 5000 Hz
• Sensitivity 1W / 1m 106 dB
• Nom. Power 50 W
• Net weight 800 g

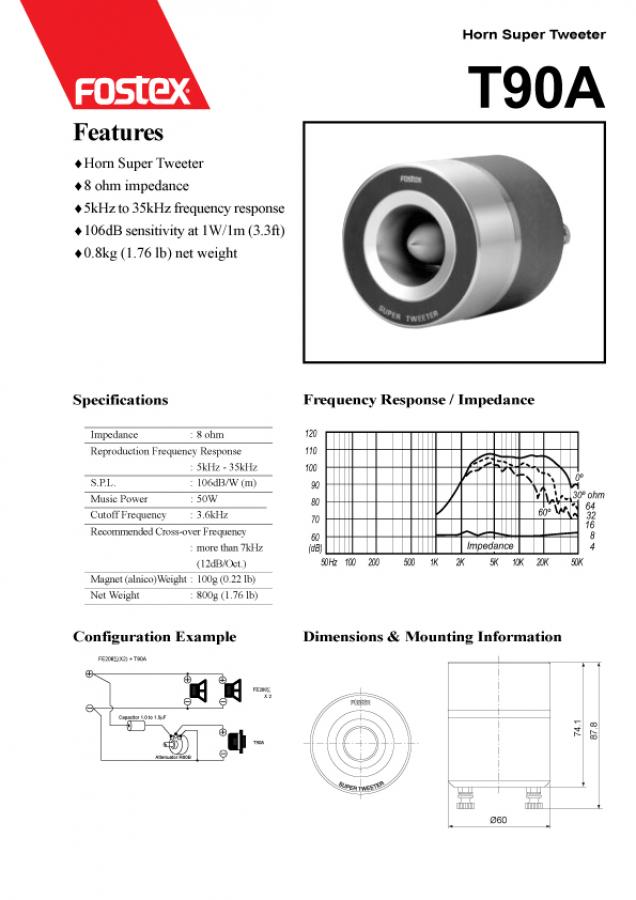

Spec sheet: Fostex T90A Tweeter
