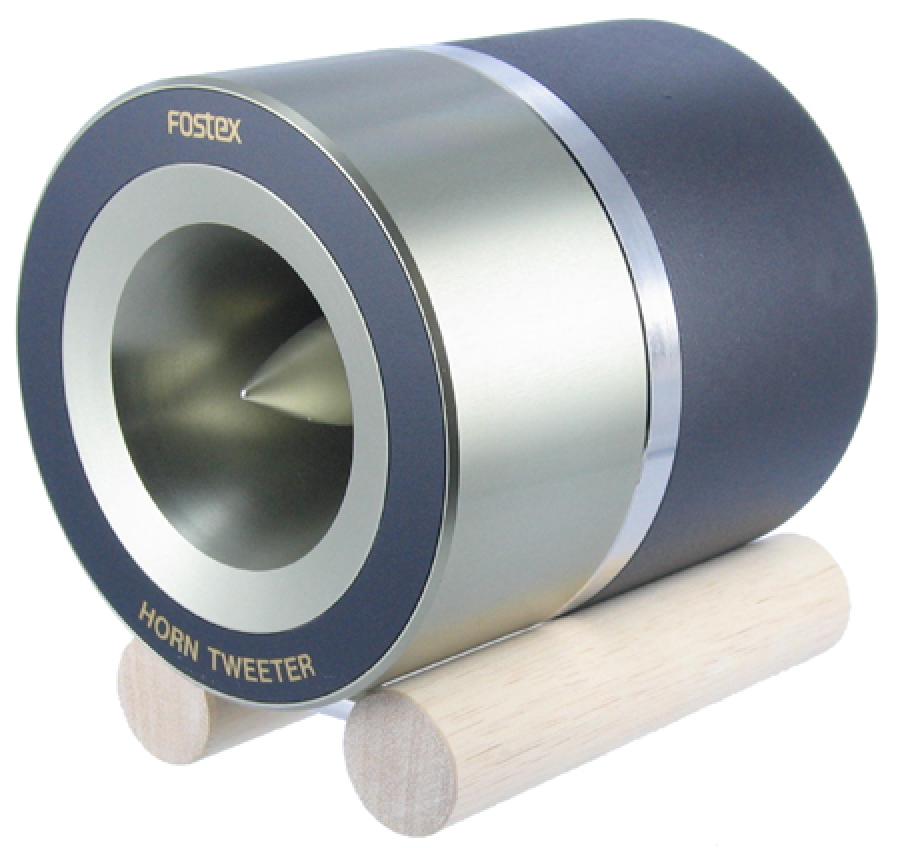

Fostex T925A Top Mount Horn Super Tweeter
The Fostex T925A horn super tweeter is designed to sit on top of your existing speaker. The tweeter is 108dB and can be used from 5,000Hz to 40,000Hz. The tweeter features an Alnico magnet. The deepness of this tweeter horn provides a brighter more detailed sound than the shallow throat horns. We recommend using a capacitor as a crossover in the plus line to the tweeter, something from 0.47mfd to 1.5mfd. The smaller the capacitor value the higher it will crossover and the quieter the tweeter becomes. If the tweeter is still too bright after trying different capacitors, you can add a 1 ohm resistor in series with the capacitor and try the different capacitors again.
- 8 ohm impedance
- Frequency response from 5kHz to 40kHz
- 108dB sensitivity at 1w/1m (3.3ft)
- TOP MOUNT - wood stand included as pictured
- Flange 82 mm
- Depth 91/ 108mm
- Znom 8 ohm
- Re - ohm
- Le@1kHz - mH
- fs 5000 Hz
- Sensitivity 1W / 1m 108 dB
- Nom. Power 50 W
- Net weight 2.0 Kg
Spec sheet: Fostex T925A Top Mount Super Tweeter
