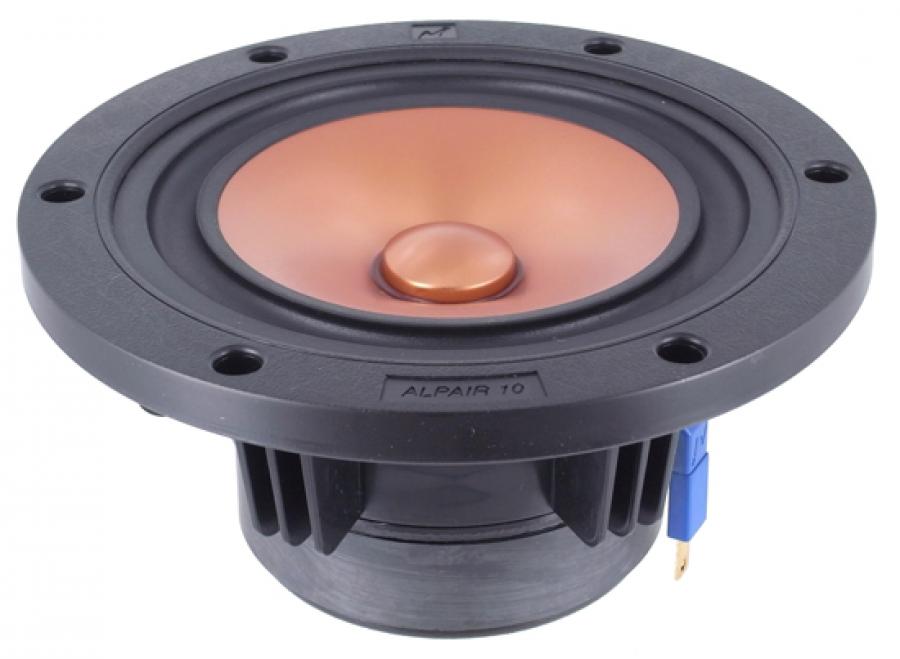

Markaudio Alpair-10 Gold 6" Full Range Gen 2

Markaudio Alpair-10 Gold 6" Full Range Gen 2

• Link to MarkAudio PDF Enclosure Plans
• Link to Markaudio Webite Construction Plans
• Link to Planet10-hifi/Frugal-phile Website Construction Plans

The Alp10 Gen. 2 driver is a large step forward from the old model. It pushes more air, 28 litres compared to 19.5 while total Q is up to 0.35 (old model 0.33). The Resonance frequency on the new model is 36Hz (40Hz on the old model) while SPL remains at 87dB.

The Alpair 10 is an ultra-high performance authentic full range driver. This driver exceeds 20kHz at +80dB! The 100mm cone is made from a new thin-wall alloy for ultra low mass while maintaining stability. The result is a driver that efficiently operates over an extremely wide frequency range for a speaker of this size and type.

This driver delivers astonishing amounts of musical depth. The bass response is low and rich while the middle and high response remains strong and detailed. The Alpair 10 is ideal for audiophile uses, multi-media and multi-channel applications where depth, clarity and detail are the main requirements. This driver is very much the enthusiasts choice.

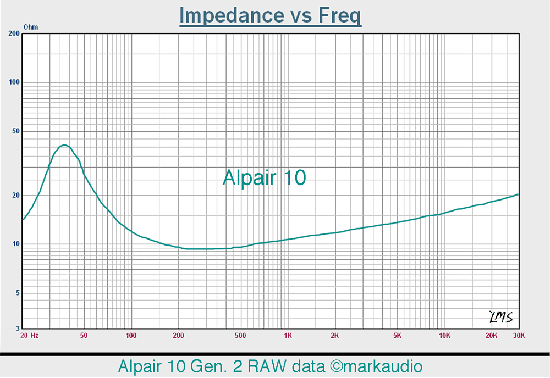

Alpair 10 Gen. 2 information:

• Revc= 7.200 Ohm
• Fo= 35.386 Hz
• Sd= 88.250 cm²
• Vas= 28.119 Ltr
• Cms= 2.543m M/N
• Mmd= 7.480 g
• Mms= 7.956 g
• BL= 5.606 T·M
• Qms= 2.530
• Qes= 0.41
• Qts= 0.35
• Levc= 93.626u H
• No= 0.297 %
• SPLo= 87 dB
• X max= 8.5-mm (1 way)
• Power = 35 watts nom. 70 Max
• Coil = 25-mm alu body with rectangle copper winding
• Flange size 160 mm
• Cutout size 137 mm
• Depth size 78 mm

Features

• Enthusiast's choice. Super detail, rich bass, strong middle and high.
• 100mm ultra low mass thin-wall mixed alloy cone with multi-coating.
• Ultra wide frequency range (40Hz to 23kHz).
• Wide excursion (8.5mm one way).
