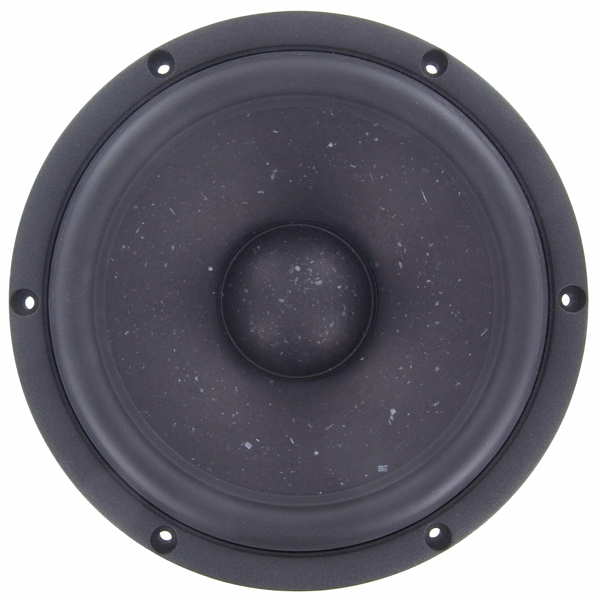

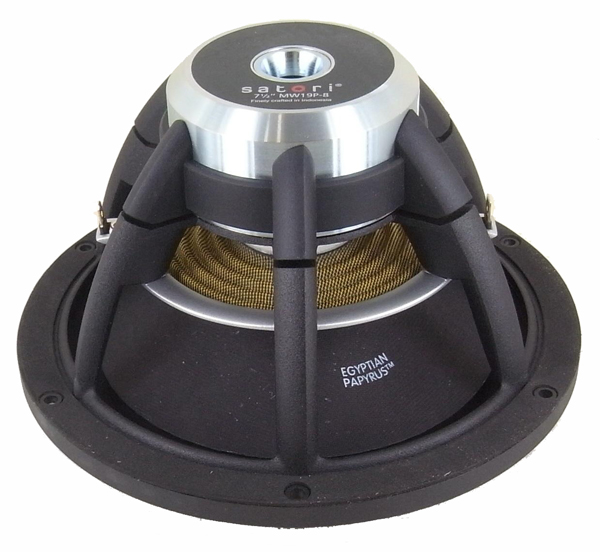

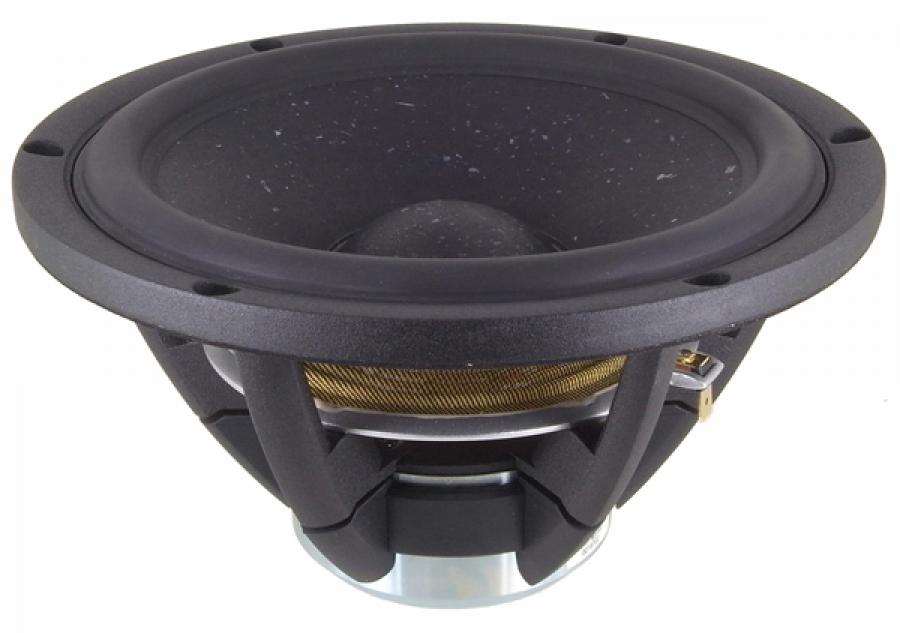

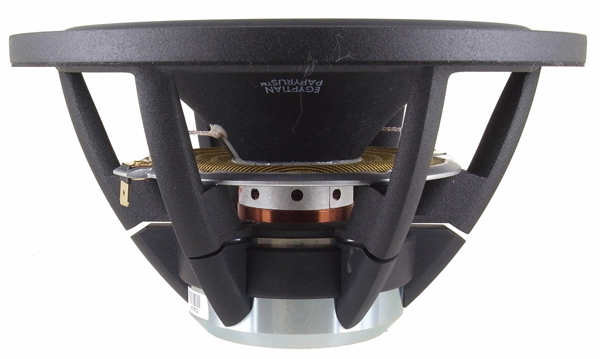

Satori MW19P-8 7.5" Egyptian Papyrus Cone Woofer - 8 ohm

Satori MW19P-8 7.5" Egyptian Papyrus Cone Woofer -187mm-  8 ohm

Spec Sheet PDF

Satori is a Buddhist term for enlightenment.  The word literally means "understanding".  Satori translates as a flash of awareness.  Satori drivers are designed for subtlety and realism.

Here are some box alignments you might consider using:

• 0.3 cf3 sealed for F3 of 73Hz
• 0.7 cubic feet with a 2" vent by 7" long for F3 of 41Hz
• 1.0 cubic feet with a 2" vent by 5.6" long for F3 of 36Hz
• 1.2 cubic feet with 2" vent by 5.2" long for F3 of 33Hz

• Egyptian Papyrus Fiber Cone
• Vented aerodynamic cast aluminum chassis for optimum strength and low compression
• Proprietary cone material with EGYPTIAN PAPYRUS fibres made in-house
• Soft low damping rubber surround for optimum transient response
• Advanced BIMAX spider for improved linearity
• Powerful optimized low distortion neodymium motor system
• Non-conducting fibre glass voice coil former for minimum damping
• Extended copper sleeve on pole piece for low inductance and reduced distortion
• CCAW voice coil for reduced moving mass
• Long life silver lead wires attached 180° apart for improved stability
• Vented pole piece for reduced compression
• High piston to chassis diameter ratio
• Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
