Markaudio CHN-110-Silver 6.75" Full Range
Volume Pricing
10% off
Overview

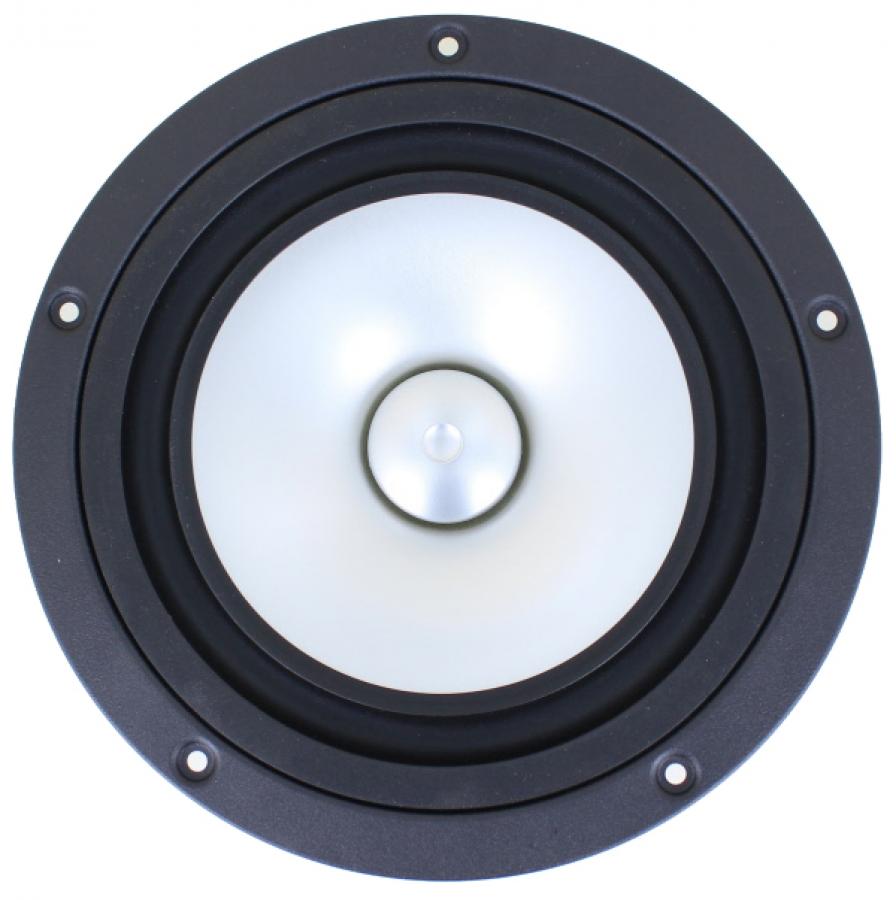

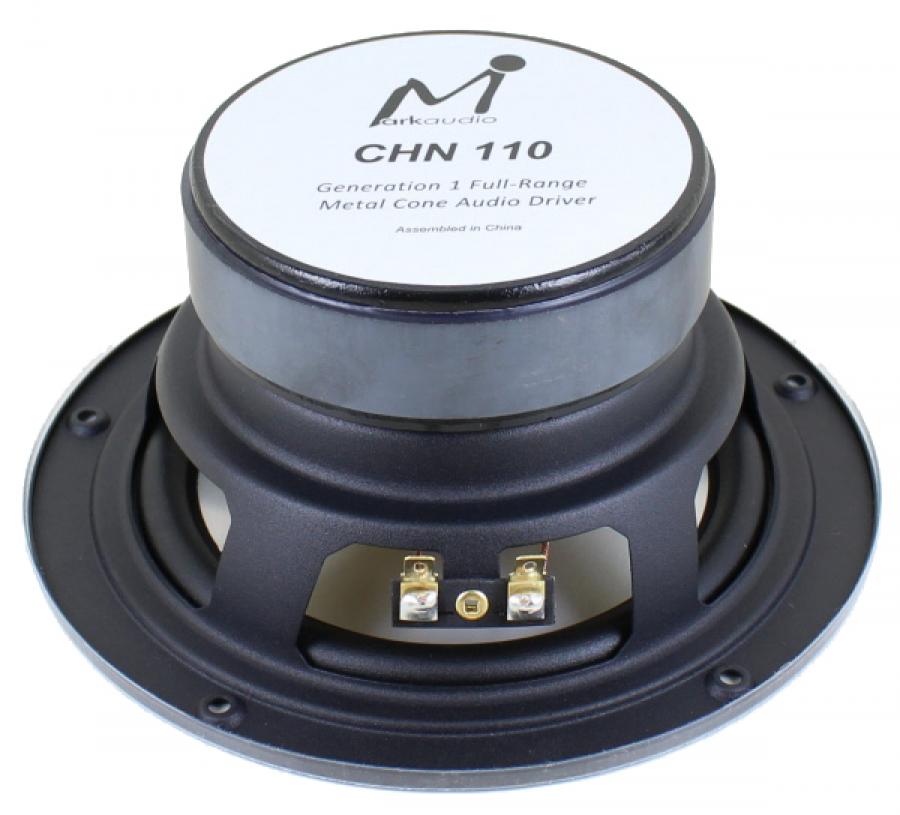

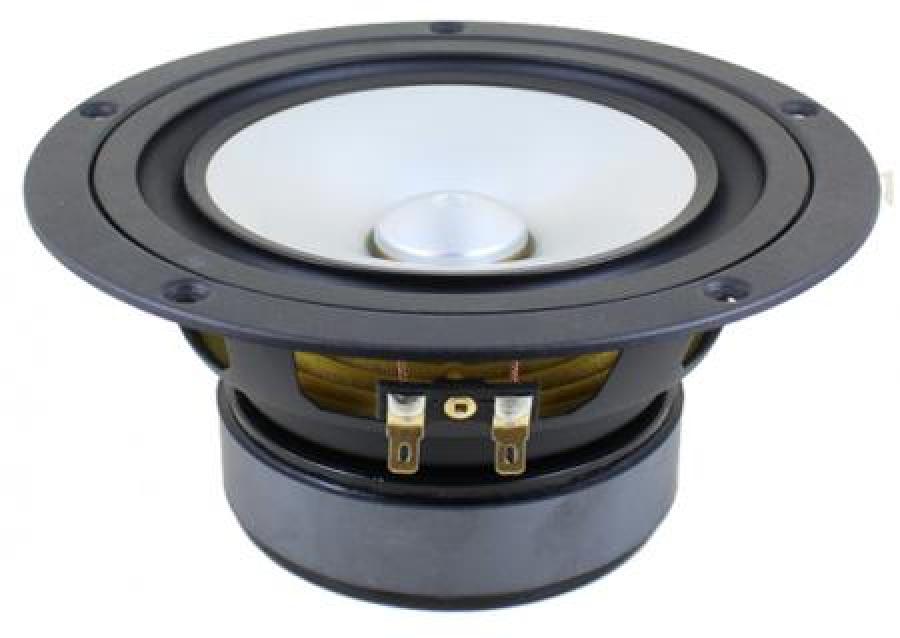

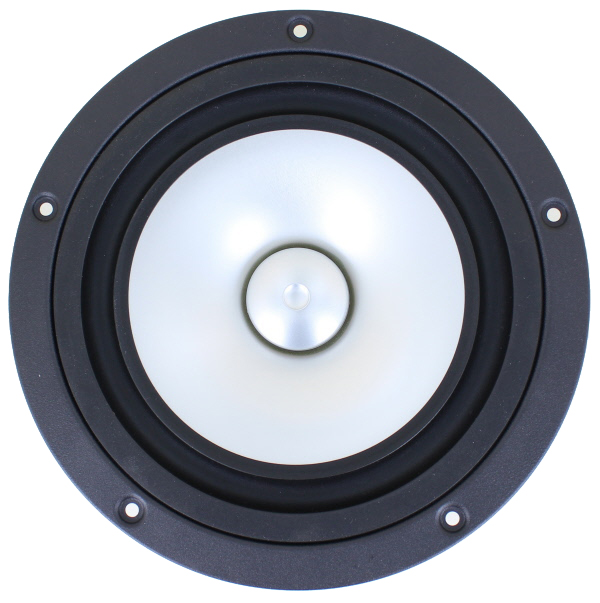

Markaudio CHN-110-Silver 6.75" Magnesium Alloy Cone Full Range - 172mm- 8 ohm
Fantastic medium-sized driver for small sealed box / nearfield use, better sound quality than consumer drivers.
The CHN-110 is a brand-new 5.75" (actual frame diameter 6.75") driver high fidelity multi-purpose design. Exploiting technologies and features from Markaudio’s continuous research, it has been carefully optimised to provide exceptional bass extension beyond what many 5 ½ inch to 6 ½ inch mid-bass units can deliver combined with full-range frequency output. The CHN-110 provides custom builders with wide operational flexibility at an affordable price, allowing use either as a genuine, high-performance full-range driver, or as a wide-range mid-bass with simple filtering. Ideal for use in high-fidelity, home-theatre, commercial A/V applications, and suiting a wide range of enclosure types, it continues Markaudio’s reputation for providing qualitative excellence and advanced mechanical engineering at an accessible level.
Fun linear quadrupole cabinet design here! Scroll down to the bottom of this page for other cabinet designs.
The CHN-110 cone exploits a high-strength series aerospace grade alloy designed to cope with high bending stress loads. Based upon the shallow, wide-dispersion multiform cone concept, the material thickness has been increased to allow greater operational low frequency load capacity. The all-new long-stroke suspension has been optimised to enhance and support the remarkable low-frequency load capacity, and has an air volume compliance of almost 25 litres. With a new low-distortion motor designed to provide a medium Q, the CHN-110 is intended for use in larger enclosures where it can produce significant bass extension for a driver of its size, while providing a sensitivity of over 88dB 1m/w, and a smooth high frequency range extending to 25KHz at +80dB.
Other features include an “easy install” heavy duty steel frame for both surface and recessed mounting.

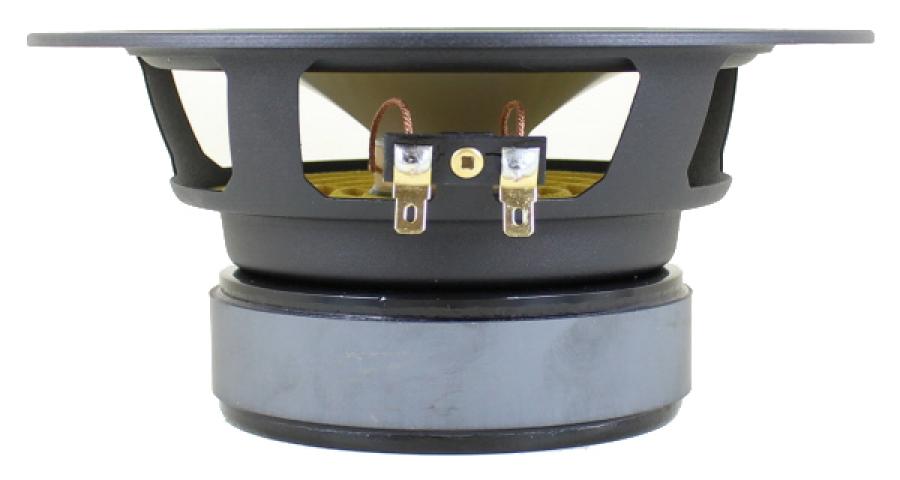

- Terminal is 5.2mm wide.
- QC205 quick connect red
- QC205 quick connect black
- When sitting on the magnet, the positive terminal is to the left.








Perfect drivers for my existing cabs
I've waited almost 8 months to write this review to ensure the "honeymoon phase" had passed. What a treat these drivers are with my variety of audio equipment. From vintage PP EL84 units, 20W Class A to even a modest 3W SEP amp these remind me of what I love about full range drivers but in a smaller modern design. I wasn't sure a 6" full range speaker would produce bass sufficient to not need a sub. Yet here I am thoroughly enjoying them and no intentions of adding a sub.
As far as prepping the baffles for these, The MA templates and driver design made this a foolproof venture. I couldn't be happier with these and my customer experience with Madisound.
Mark
Excellent value, low distortion. Installed 12 in gym
Here is a clip of music playing in the main room, which is 40' x 80' and has 10 of the drivers in the ceiling. 2 groups of 5 drivers in parallel, with the groups then placed in series measuring 2.9 ohms total at the amp, which is capable of 600 watts into 1.5 ohms. In this configuration the sensitivity of the drivers increases to 100db/watt spl at 1 meter and requires very little power to evenly fill the room with very loud, clean music. Highly recommend!
https://youtu.be/UqDhniL0s0A?si=n2qnZ61ZaJ6TjquU
