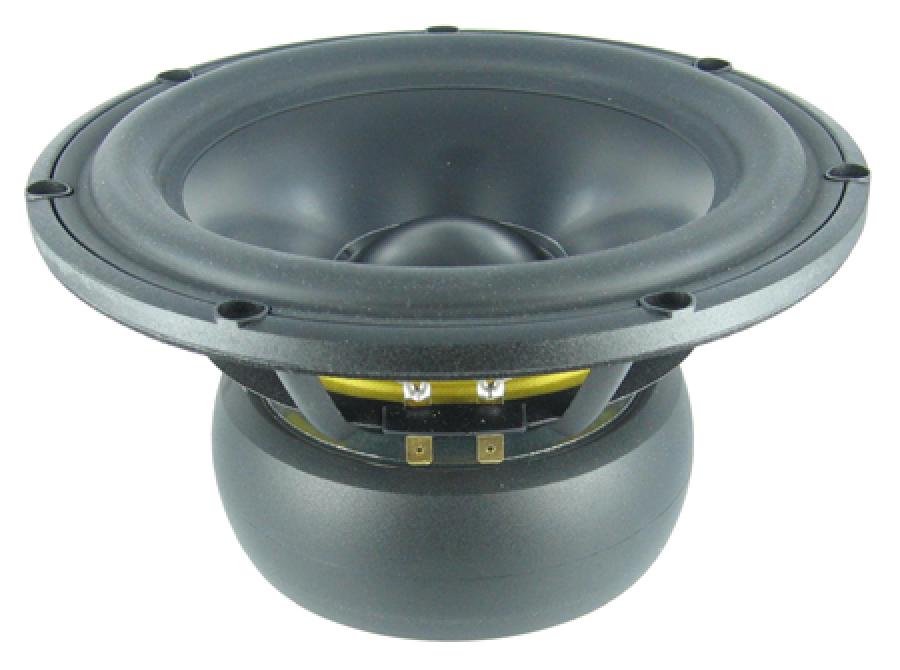

ScanSpeak Revelator 22W/8857T-00 8" Aluminum Cone Woofer- 222mm- 8 ohm
Good for moderate-sized ported box. The Revelator woofers and subwoofers feature very rigid cones in paper or aluminium that operate as a piston over a wide frequency range, in combination with Scan-Speak's low-loss linear suspension and the patented Symmetrical Drive (SD-1) results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.
- Black aluminum cone
- Cast frame (very robust, yet stylish)
- Large vented pole piece
- SD-1 motor system
- Frame diameter 222mm
- Cut out hole size 194.1mm
- Flange thickness 7mm
- Depth 111mm

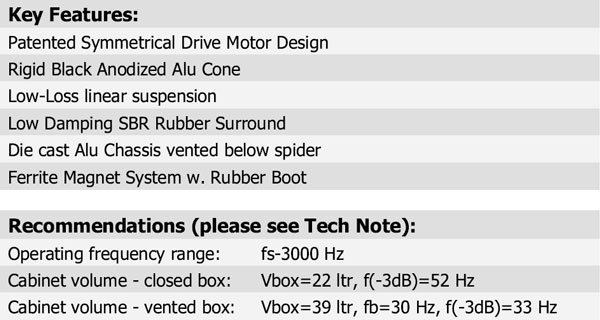

Madisound recommends: an enclosure of 1.25 cubic feet with a 2.5" diameter vent by 8" long for an F3 of 35Hz.
