Hi-Vi T20-8, 20 mm Textile Dome Tweeter 8 ohm
Manufacturer: HiVi
Product ID: t20-8
Price:
$8.20
Product is out of stock
Volume Pricing
10 - 10,000
10% off
10% off
Overview

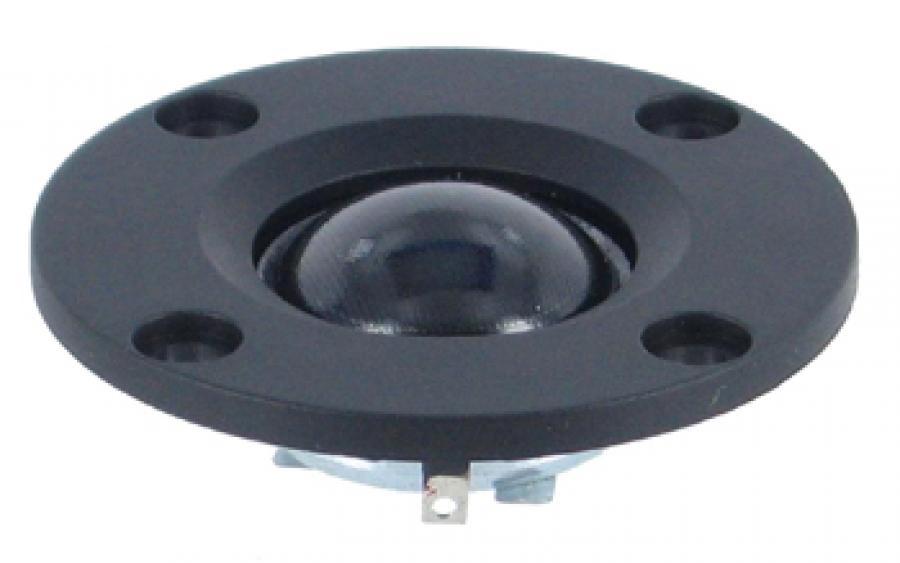

The T20-8 is a 20mm (3/4") textile dome tweeter. The tweeter has a small flange of only 53mm (about 2") and a depth of only 10mm (0.4"). The high sensitivity and small size make it very useful for multi speaker systems, like television bar speakers. We recommend a minimum 4,000Hz crossover frequency.
Hi-Vi Research T20-8
The T20-8 is a 20mm (3/4") textile dome tweeter. The tweeter has a small flange of only 53mm (about 2") and a depth of only 10mm (0.4"). The high sensitivity and small size make it very useful for multi speaker systems, like television bar speakers. We recommend a minimum 4,000Hz crossover frequency.
| General Data | |
| Overall Dimensions ：53mm (2.09") Cut Out Diameter: 36mm (1.42") |
|
| Nominal Power Handling (Pnom)(W) : | 15 |
| Max Power Handling (Pmax)(W) : | 30 |
| Sensitivity (2.83v/1m)(dB) : | 89 |
| Weight (M)(Kg) : | 0.09 |
| Electrical Data | |
| Nominal Impedance (Z)(ohms) : | 8 |
| DC (Re)(ohms) : | 6.5 |
| Voice Coil and Magnet Parameters | |
| VC Diameter (mm) : | 28 |
| VC Length (H)(mm) : | 1.5 |
| VC Former : | CCAW |
| VC Frame : | Alumium |
| Magnet System : | Shielded |
| Magnet Former : | Neodymium |
| T-S Parameters | |
| Resonance Frequency (Fs)(Hz) : | 2000 |
