Fostex R82B 200W 8 ohm or 16 ohm L-pad
Manufacturer: Fostex
Product ID: r82b
Price:
$76.60
Volume Pricing
10 - 10,000
10% off
10% off
Overview
Very clean 200 watt attenuator from Fostex. Ideal for use with Fostex tweeters and super-tweeters. Control the output without use of fixed resistors.

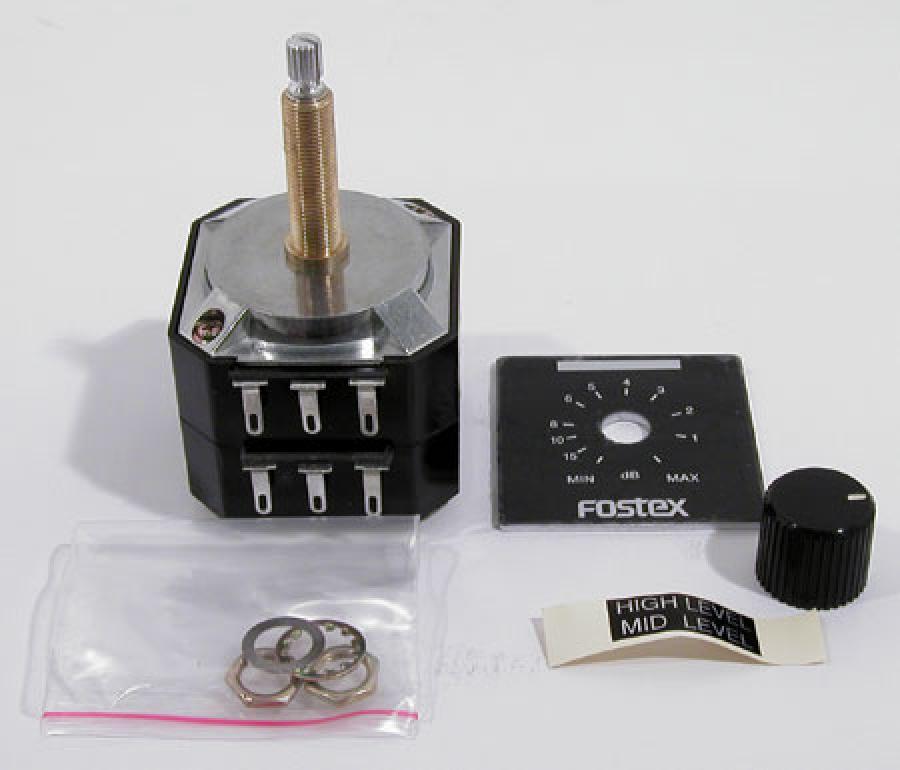

Fostex R82B 200 Watt L-Pad
- 8 ohm attenuator
- Attenuation 0 to 40 db or more
- Input 200 watts
- Flange 50 x 50 mm SQUARE
- Threaded part of shaft is 30mm long (1.18")
- Depth 89 mm
- See wiring diagram below
Can be also be configured as one 100W 16 ohm L-pad, or two 100W 16 ohm L-pads with a single control.
This power rating is only for tweeters. Using at lower frequencies it would be 100 watts.
Spec sheet: Fostex R80B, R82B, and R100T Attenuators
