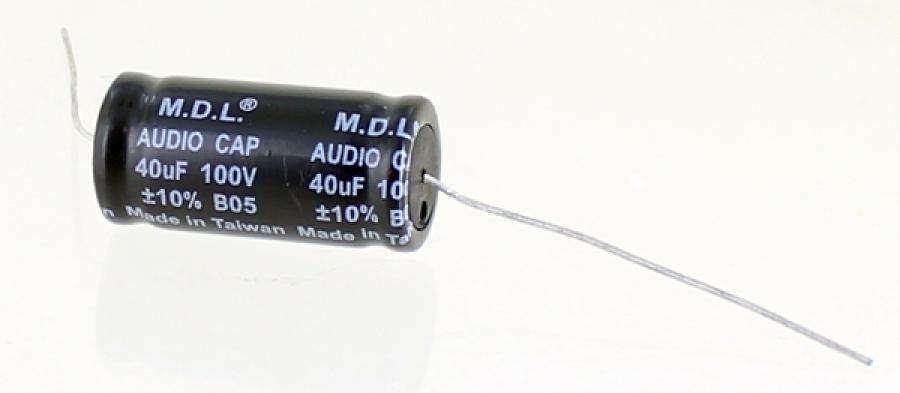

MDL 40 mfd Non-Polar Electrolytic Capacitor 100V

MDL 40 mfd Non-Polar Electrolytic Capacitor 100V

• 40 mfd
• 100V
• size 16mm diameter x 34mm length
• 10% tolerance
• max. 5% dissipation factor

Specifications
Capacitance Tolerance: ±10% (K) at 1KHZ
Leakage Current: MAX. 0.03CV + 3μ A After 5 minutes application of rated working voltage (MAX.0.03CV + 3μ A)
Temp Range: - 40℃ ～ + 105℃
Load Life: After 1,000 hours application of rated voltage at 105 ±2℃, capacitors meet the characteristics requirement listed below.
(a) Capacitance change: Within ±25% of initial
(b) Tan δ:200% or less of initial specified
(c) Leakage current: Install specified value or less
MAX Dissipation Factor: MAX 5% at 1KHz

With professional experience since 1980, M.D.L. has manufactured cross-over networks, accessories & components, including Axial type Aluminum Electrolytic Capacitors of extraordinary quality for all your vital applications. Reliable quality Non-Polar series of M.D.L. is produced for cross-over networks with high fidelity audio system and the small capacitance deviation is the main feature from all excellent characteristics. Various components for speaker system are available.
