Mundorf M-Resist Supreme 12.0 ohm Resistors

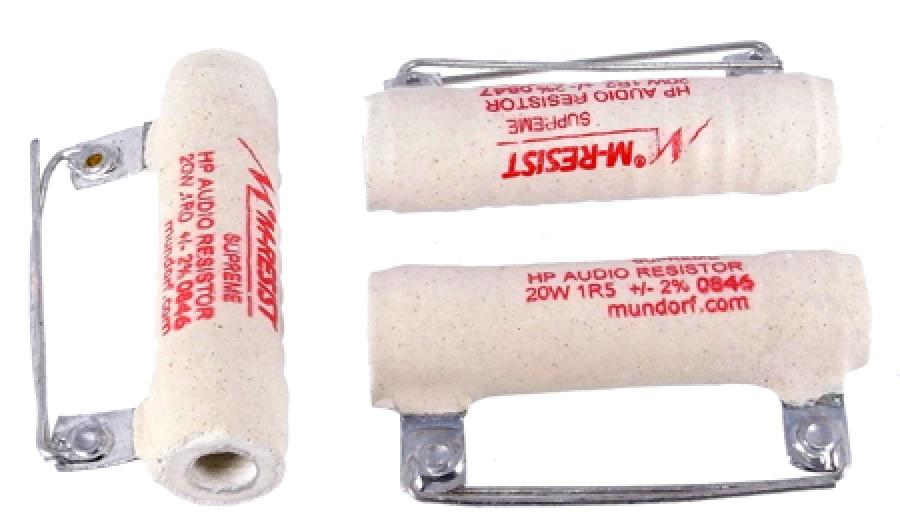

Please note, the picture shows this resistor from several angles. The price is per single resistor.

12.0 ohm Mundorf M-Resist Supreme Resistors 20 watt

High quality resistors are hard to find. High power resistors are used in crossover networks to adjust the levels of individual speaker units and they are also used in oscillator circuits and equalisers. Their basic job is to convert surplus or unwanted electrical power into heat. One of the most important specifications of a resistor is thus its power handling capacity, which is expressed in watts.

The Mundorf M-Resist Supreme series is specifically designed for high-end loudspeaker and amplifiers applications. With their superior audio quality these 'acoustically no longer perceivable' resistors now match the premium quality standard which distinguishes Mundorf capacitors and conductors!

American manufacturer Alon Wolf: 'absolutely neutral, in fact sonically not existent'

Specifications:

• Power handling: 20W RMS
• Tolerance: +/- 2%
• Size: 11 x 51 mm (D x L)
• Wire leads: 1.0 x 30 mm (D x L)
• Non-magnetic construction
• Virtually inductance-free
• Solid core oxygen-free copper with gold
