Supra SW-US Mains Power Plug

Discontinued

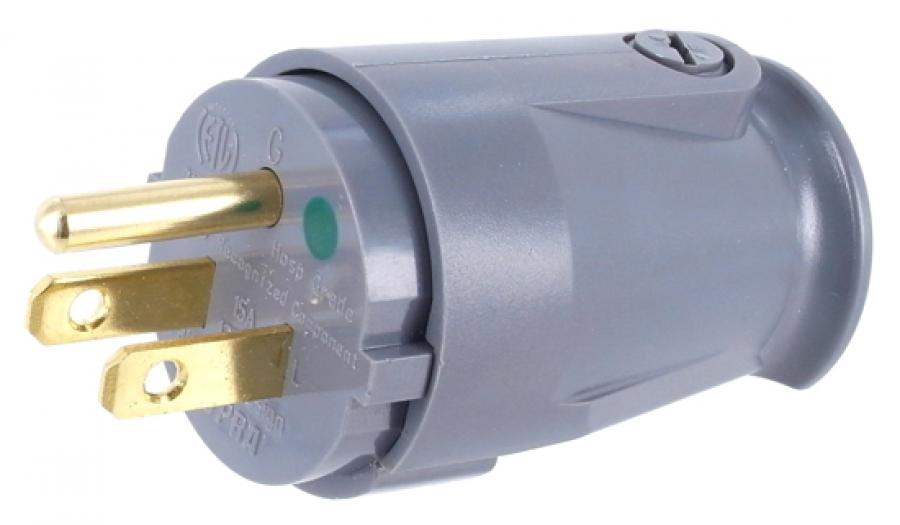

Supra SW-US power plug

SW is a series of mains plugs for 110-240V, safety approved Hospital Grade and Audio Grade. Accepts large cable diameters. Easy to assemble, no loose screws, nothing to slip onto the cable before termination.

Supra SW-US - Supra Male Mains Connector

Hospital and Audio Grade male mains plug for high-end mains power cables such as Supra LoRad. Conforms to Nema 15 American as well as Canadian standard. The plug provides 24K gold plated pins and cabel screw clamps for solid joints with minimal contact degradation. The mains plug accepts cable diameters up to 11 mm and cable lead area up to 2.5 mm².

Supra Mains Connectors offer a flexible, sturdy and durable connection between the mains power and devices. There is not one piece over-engineered, the conductors provides for long service life and stable connection as well as patented housing that do not require pre-mounting on the cable and integrates the housing assembly with the cable strain relief. Off course the conductors are plated with a good layer of 24K gold that will endure also frequent re-connections. The perfect match to our mains flex cables, that allow customers with duly knowledge (N.B. check the local law and regulation what level of do-it-yourself work that is approved) to build their own custom mains flex cord sets. Finally they are of approved hospital-, audio grade design and approved for use in airport control towers where an interference jammed e.g. aeroplane radar would be disastrous.

• 15A. Hospital Grade
• Nema 15 American standard
• Gold plated pins and screws
• Accepts a cable jacket diameter up to 11mm
• Accepts condutor size from 1.0mm to 2.5mm

We recommend using Loctite 222MS on the screws to assure they don't loosen.
