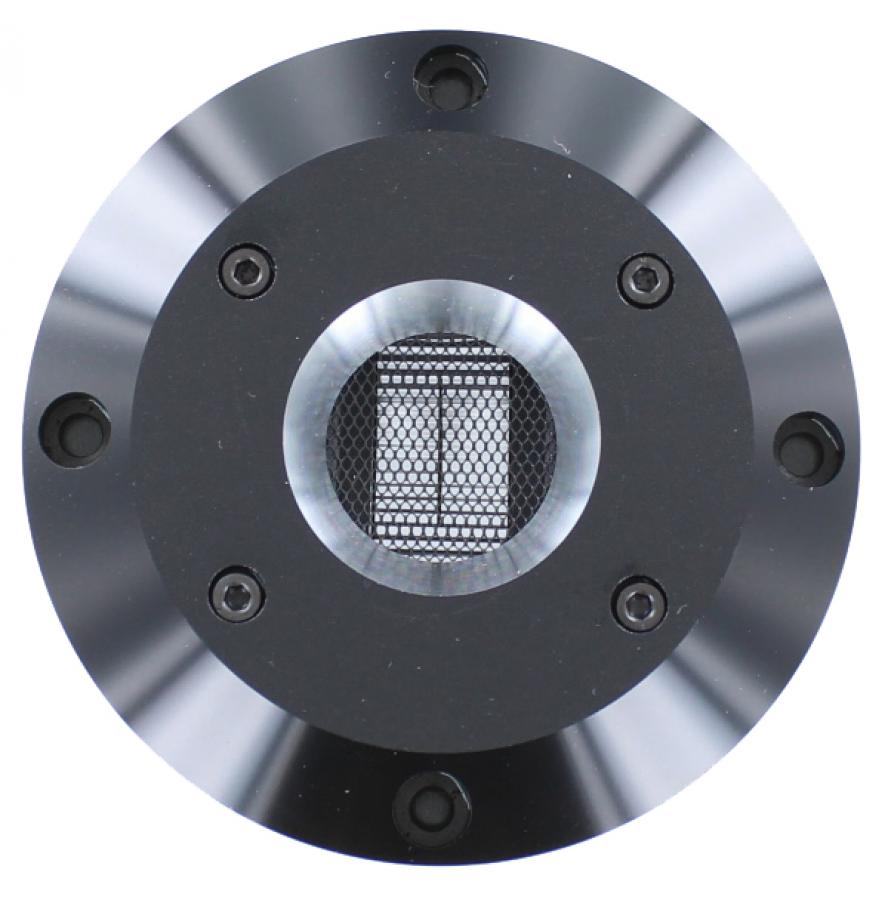

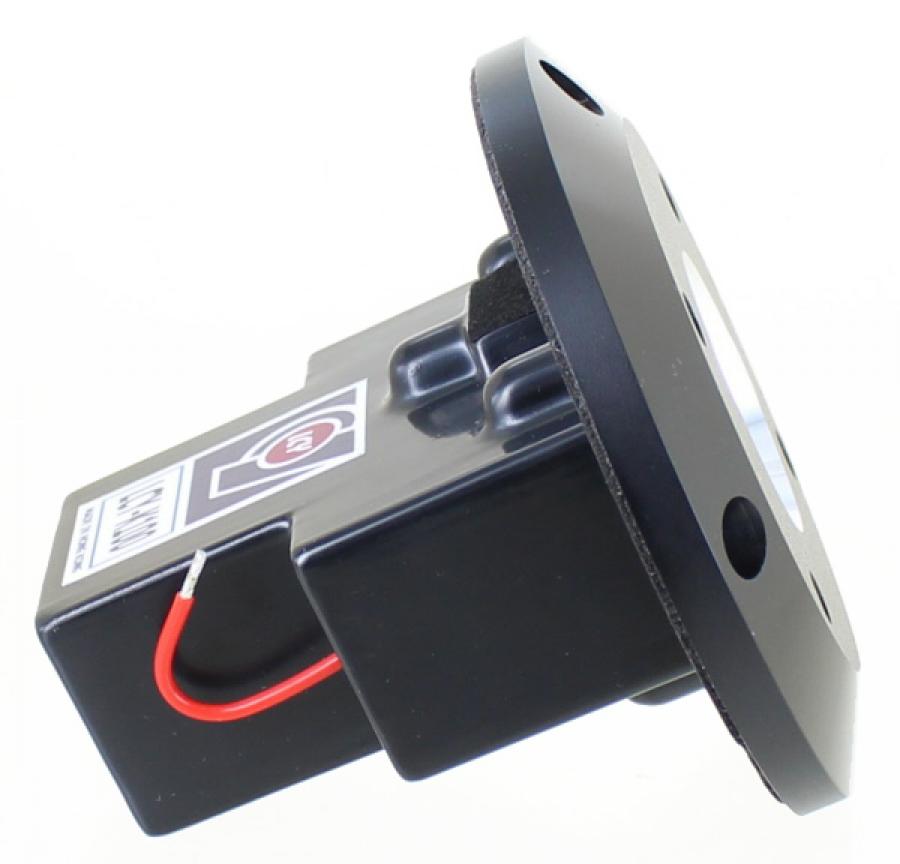

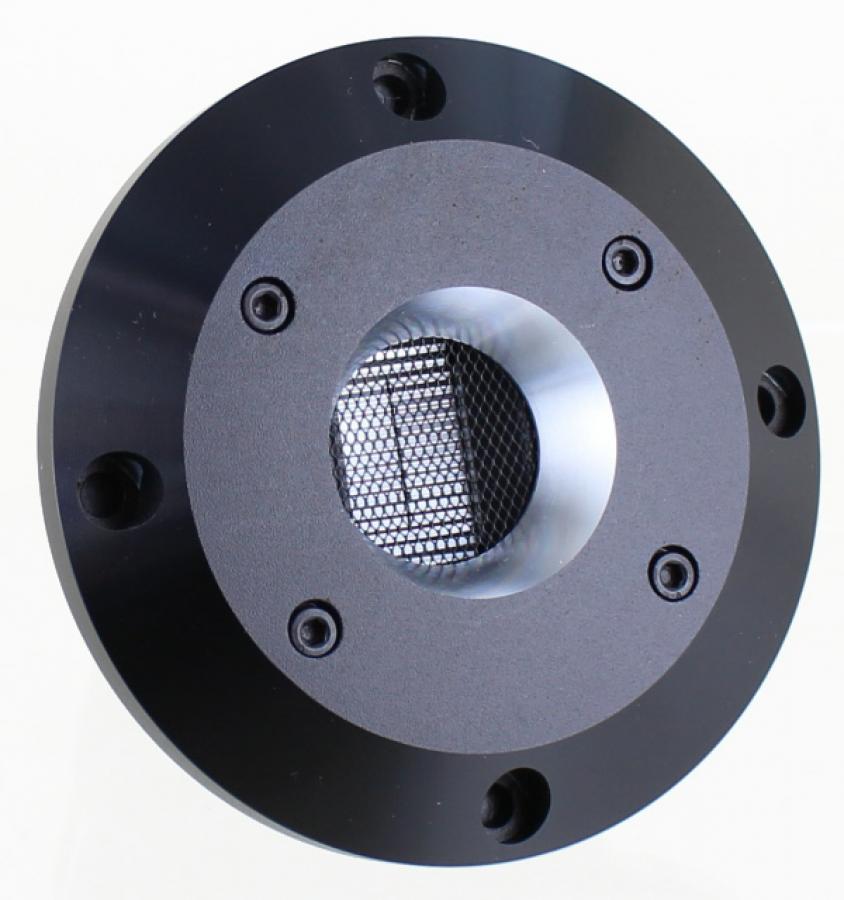

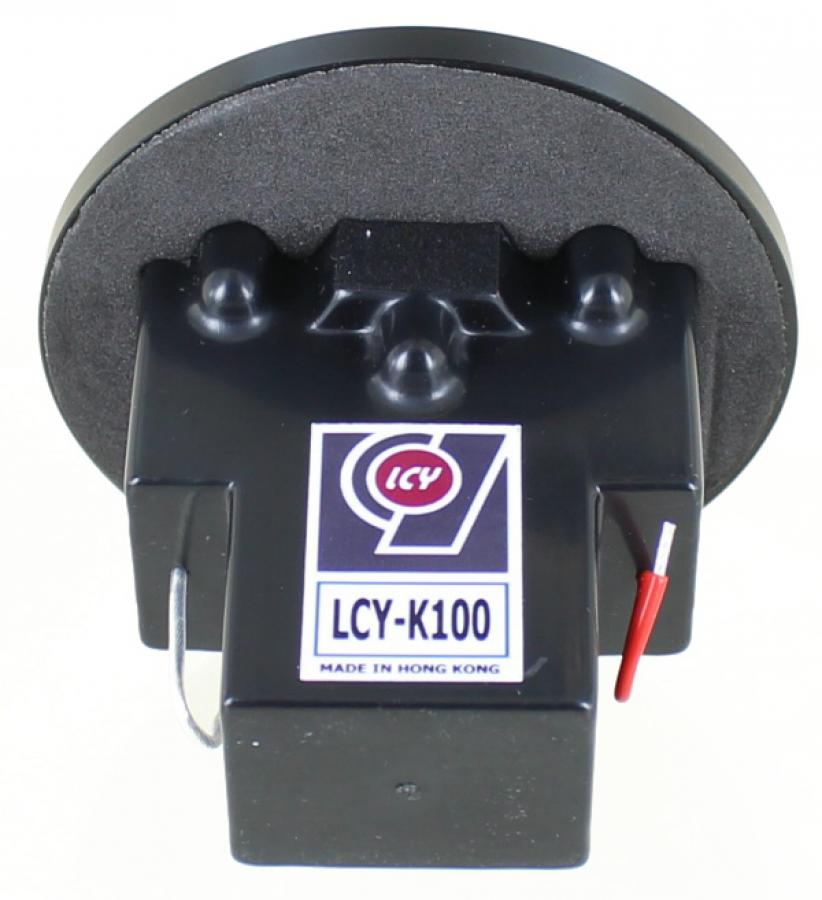

LCY-K100 Ribbon Tweeter

Manufacturer: LCY

Be the first to review this product

Product ID: LCY-K100

$331.00

Product is out of stock

Add to wish list E-mail to a friend

Overview

LCY K100 Ribbon Tweeter Ribbon tweeter with circular plate, 25mm ribbon length, 95dB/2.83V/1m, 8 Ohms.

LCY K100 Ribbon Tweeter
Ribbon tweeter with circular plate, 25mm ribbon length, 95dB/2.83V/1m, 8 Ohms.

The LCY Ribbon tweeter is based on technology well proven by audio pioneers for over half a century but is innovatively designed to satisfy the sophisticated demands of the digital era. The LCY has a unique design employing twin ribbons of half the length of conventional ribbons in order to control vertical plane dispersion. Thus it reproduces both vertically and horizontally as effectively as voice-coil operated dome tweeters but with the accuracy, elegance and refined timbres of ribbon-tweeter technology. Magnetic flux density is enhanced by the use of our own neodymium magnet system and a sophisticated transformer with parallel multi-wiring oxygen free copper (OFC) has been adopted for superior frequency and power handling and optimal size.

Twin-Ribbon tweeter technology
Extra high frequency response
Excellent vertical and horizontal pointing characteristics
Parallel multi-wiring OFC transformer
Improvement horn dispersion aluminum front plate
Highly concentrate magnetic field neodymium magnet system

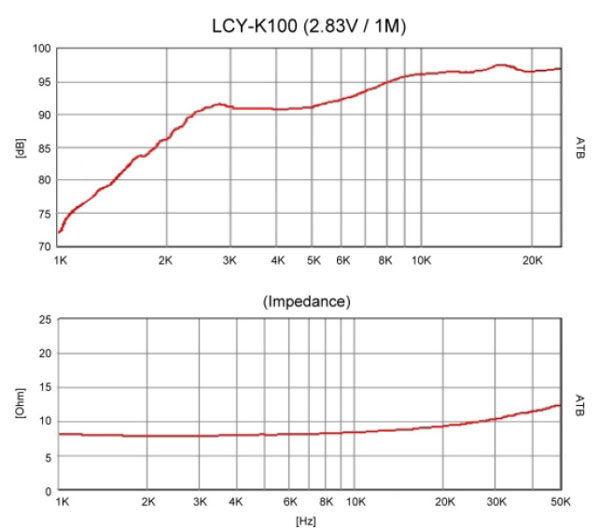

Frequency Response: 7kHz-100kHz
Sensitivity: 95dB (2.83V@1M)
Nominal Impedance: 8 W
Magnet Type: Neodymium
Ribbon Effective Area: 375 mm2
Ribbon Thickness: 0.006mm
Ribbon Length: 25mm
Nominal Power Handling: 200W(18dB/7kHz)

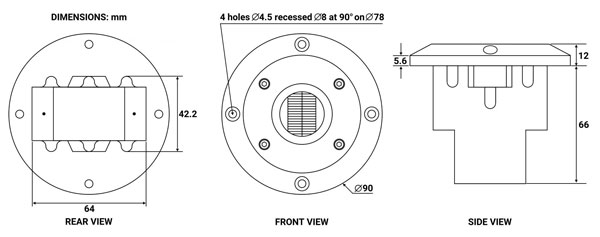

Flange Diameter: 90mm
Cut Out: 65mm x 43mm or 70mm Ø
Depth: 67mm
Flange Thickness: 5mm
