Bennic Square Input Cup with Gold Binding Posts DB-CUPS (3.15" x 3.15")
Manufacturer: Bennic
Product ID: DB-CUPS
Price:
$8.40
Volume Pricing
10 - 10,000
10% off
10% off
Overview

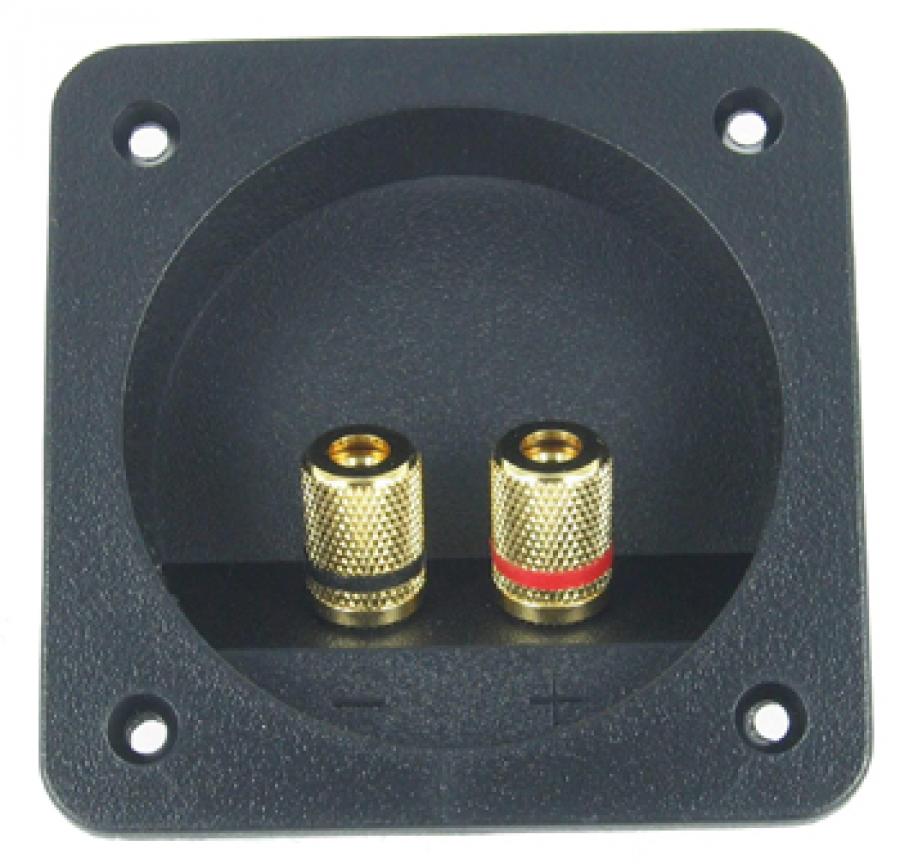

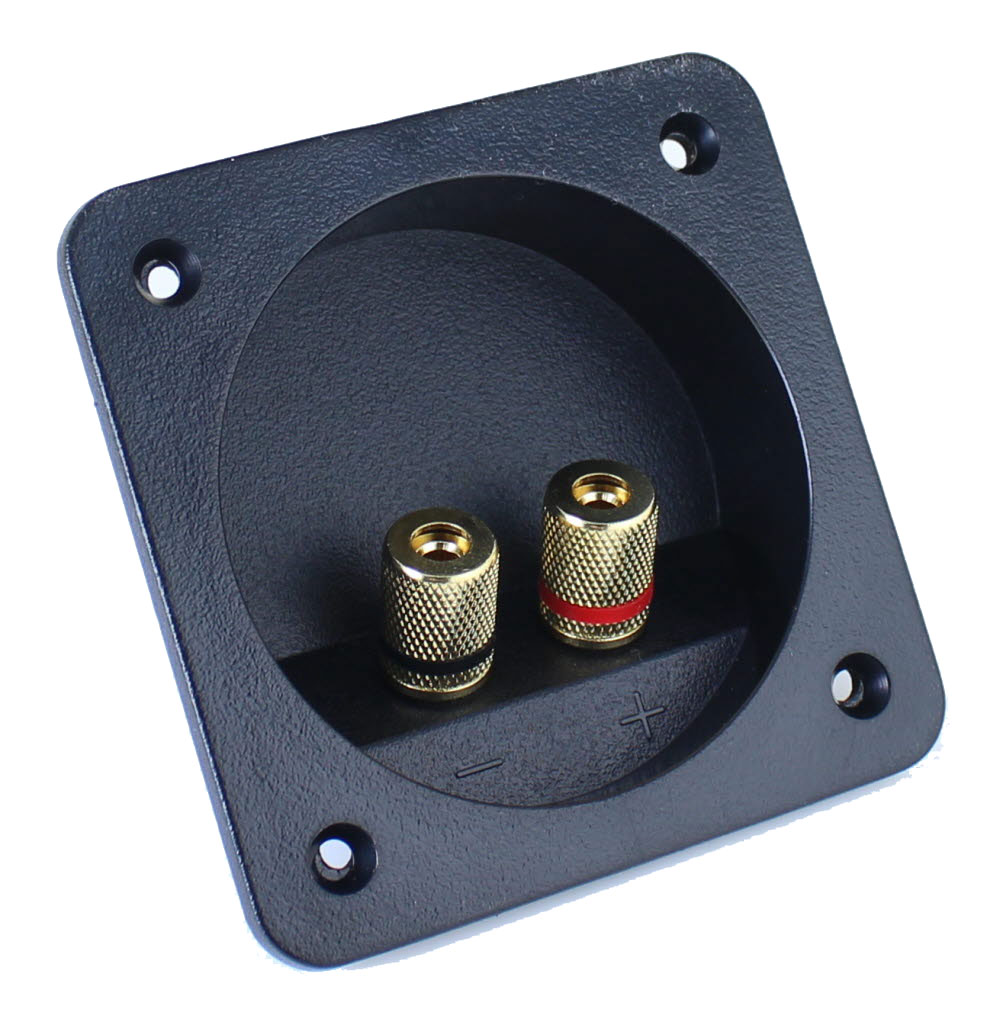

Bennic Square Input Cup with Gold Binding Posts DB-CUPS (3.15" x 3.15")
Bennic Square Input Cup with Gold Binding Posts DB-CUPS (3.15" x 3.15")

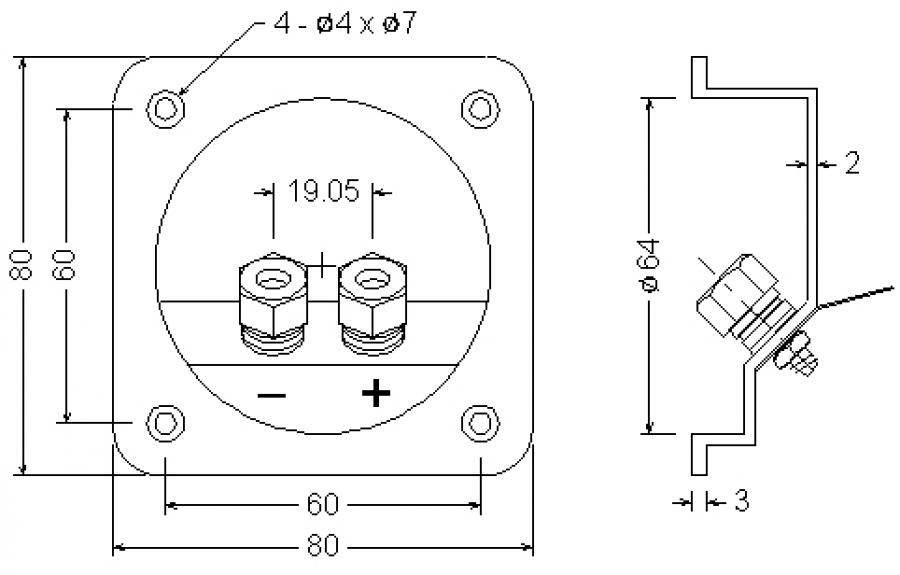

- Overal dimensions: 3.15" square (80mm square)
- Cutout requirement: 2.7" round (68mm round)
- Gold-plated brass binding posts with knurled caps
- Accepts banana plugs, spades, or up to 6mm wire (4 AWG)

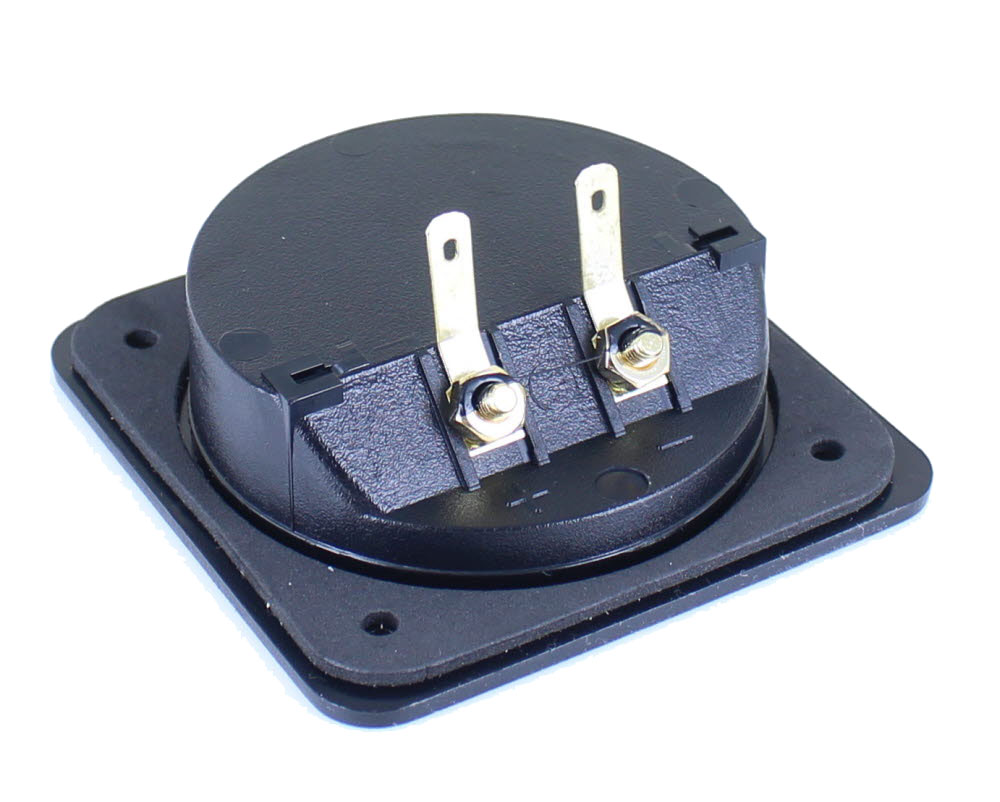

- Gasket pre-installed on backside of cup for airtight seal
- Use 4pcs #6 Phillips or Socket head screws to mount
- Use QC205-B Black Quick Connect 0.205 inch & QC205-R Red Quick Connect 0.205 inch if not soldering to the tabs
